Hensel 62000169 Junction box Halogen-free, Sealable (L x W) 295 mm x 225 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 10
- Type of housing bushing: Prestamped
- Rated insulation voltage UI: 400 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: Yes
- Operating temperature: -25..40 °C.
- Shape: Rectangular
- Max. Conductor cross-section 35 mm²
- Surface: Untreated
- IP66 protection rating
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey
- Dim

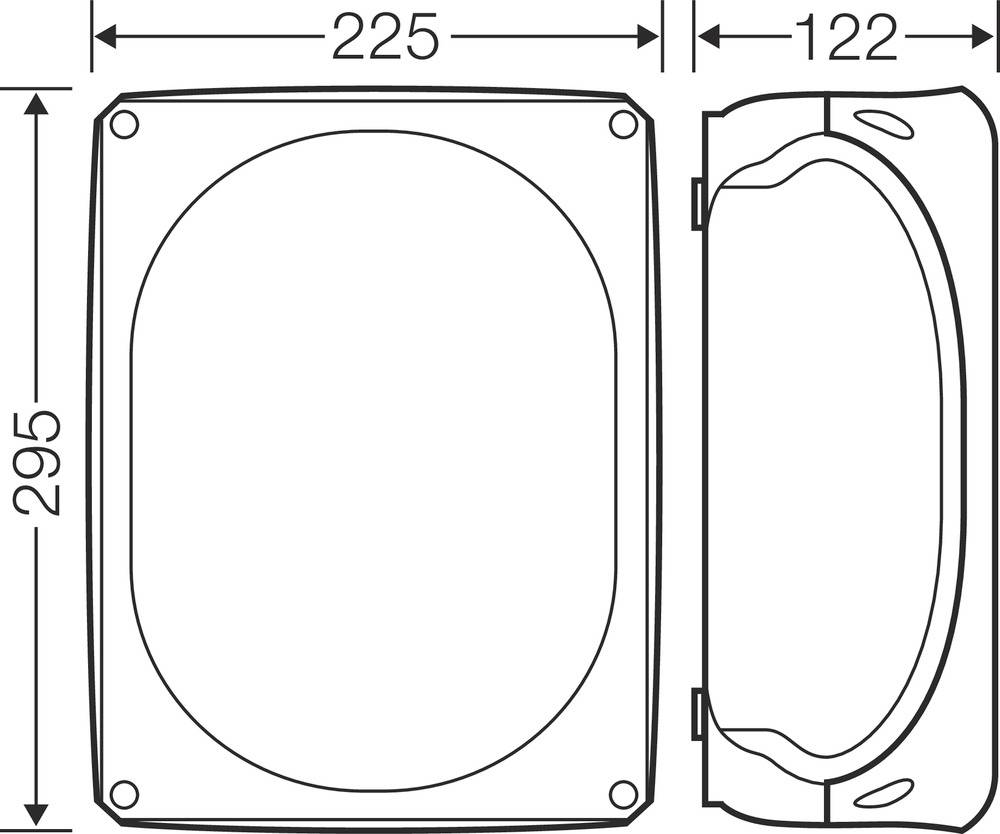

(L x W) 295 mm x 225 mm
- Length
295 mm
- Width
225 mm
- Depth
122 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295095 Hensel 62000169 Junction box Halogen-free, Sealable (L x W) 295 mm x 225 mm 1 pc(s)
Description

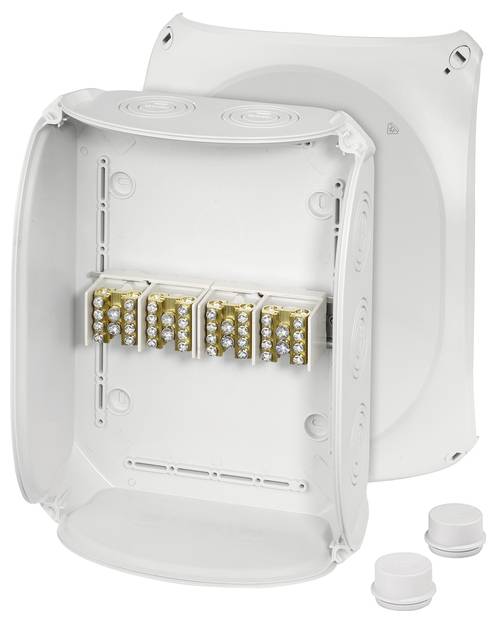

Cable junction box made of high-quality thermoplastic with main cable branch terminals for copper conductors. For surface-mounting applications in buildings or protected installation outdoors. With external straps for fixing and lid fixing via quick-release fasteners. With main cable branch terminals up to 35 mm², 4-pin. Cable entry via metric knockouts in housing walls and floor. Attached plug-in nozzle with protection class IP 55.
This text is machine translated.
This text is machine translated.
