Hensel 62000183 Junction box Halogen-free, Sealable (L x W) 130 mm x 130 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 7
- Type of housing bushing: Prestamped
- Rated insulation voltage UI: 400 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -25..40 °C.
- Shape: Square
- Max. Conductor cross-section: 6 mm²
- IP66 protection rating
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Orange

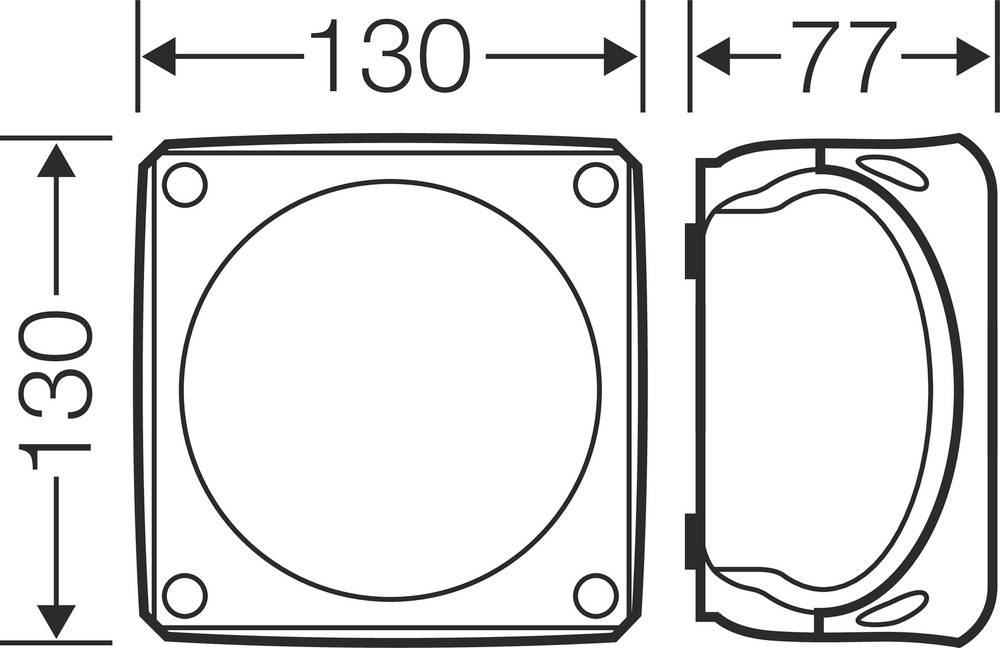

- Dim
(L x W) 130 mm x 130 mm
- Length
130 mm
- Width
130 mm
- Depth
77 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2295863 Hensel 62000183 Junction box Halogen-free, Sealable (L x W) 130 mm x 130 mm 1 pc(s)
Description

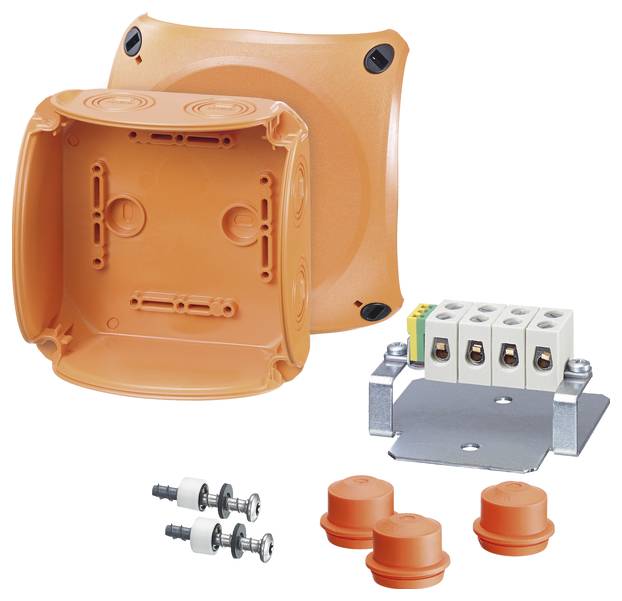

Cable junction box made of high-quality thermoplastic with functional retention in the event of a fire in conjunction with functional maintenance cables. Function class E30 to E90. For surface-mounting applications in buildings or protected installation outdoors. Standard with screw anchor, high-temperature resistant ceramic terminal for copper conductor, cable entry via metric knockouts in housing walls via the enclosed plug-in cable connection. Cover attachment with quick-release fasteners. With 5-pin terminal. As branch box up to 6 mm² or connection box up to 6 mm². Extension cable connection types AKMF in accessories.
This text is machine translated.
This text is machine translated.
