Hensel 62000265 Junction box Halogen-free, Sealable (L x W) 88 mm x 88 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 10
- Type of housing bushing: Sealing membrane
- Rated insulation voltage UI: 690 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -25..40 °C.
- Shape: Square
- Max. Conductor cross-section: 4 mm²
- Surface: Untreated
- Protection class IP55
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
Grey
- Dim
(L x W) 88 mm x 88 mm
- Length
88 mm
- Width
88 mm
- Depth
47 mm
Wall-/ceiling mounting
Grey
88
TRUE
50 mm
Square
Untreated
690 V
88 m
-25-40 °C
Plastic
FALSE
IP55
None
None
Other
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2296405 Hensel 62000265 Junction box Halogen-free, Sealable (L x W) 88 mm x 88 mm 1 pc(s)
Description

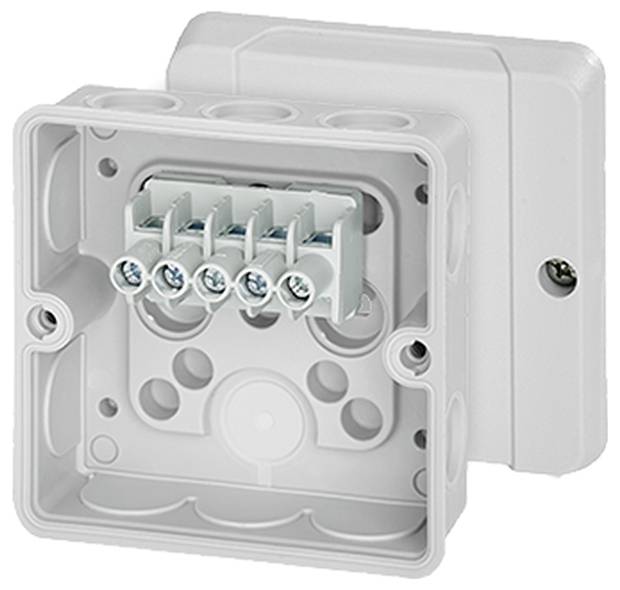

Cable junction boxes made of high-quality thermoplastic for surface-mounted applications in buildings or protected installation outdoors. Cable entry via elastic sealing membranes, simply push through the conductor, no hole tool required. Cover attachment with V2A screws. With screw terminals up to 2.5 mm², 5-pin.
