Hensel 62000272 Junction box Halogen-free, Sealable (L x W) 98 mm x 98 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Stackable: no.
- Number of introductions: 10
- Type of housing bushing: Sealing membrane
- Rated insulation voltage UI: 690 V.
- Assembly: Terminal
- Lid mounting: Screwed
- Introduction from behind: no.
- Operating temperature: -25..40 °C.
- Shape: Square
- Max. Conductor cross-section: 4 mm²
- Surface: Untreated
- Protection class IP55
- Pourable: no.
- Casting compound supplied: no.
- Material: Plastic
- Product type
Junction box
- Features
Halogen-free
Sealable
- Mounting type
Surface-mount
- Content
1 pc(s)
- Factory colour
White

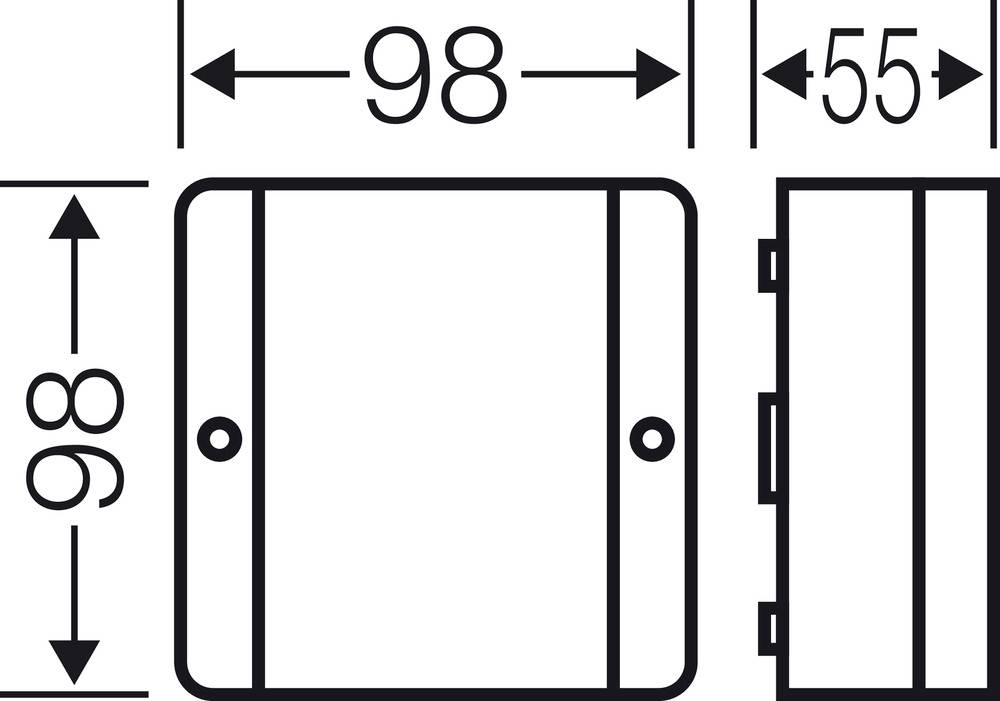

- Dim
(L x W) 98 mm x 98 mm
- Length
98 mm
- Width
98 mm
- Depth
52 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2297339 Hensel 62000272 Junction box Halogen-free, Sealable (L x W) 98 mm x 98 mm 1 pc(s)
Description

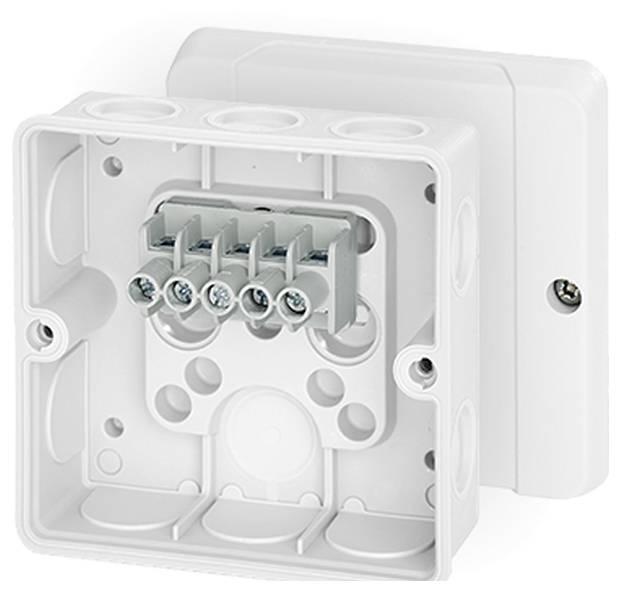

Cable junction boxes made of high-quality thermoplastic for surface-mounted applications in buildings or protected installation outdoors. Cable entry via elastic sealing membranes, simply push through the conductor, no hole tool required. Cover attachment with V2A screws. With screw terminals up to 4 mm², 5-pin.
