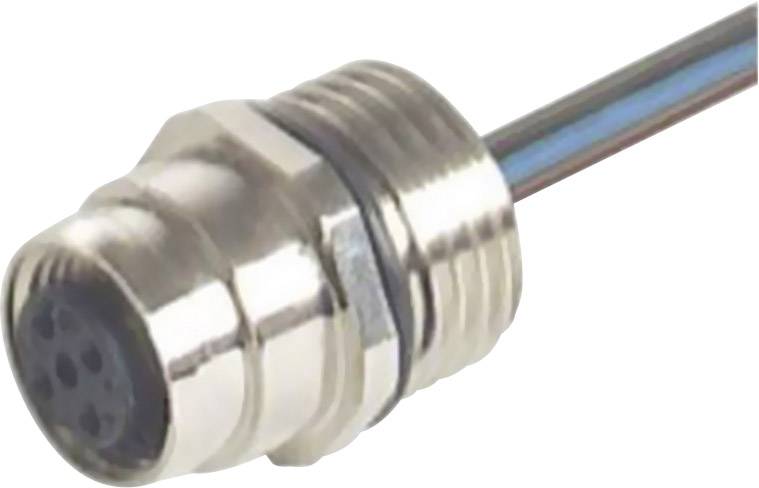

Hirschmann 933039200 EF12M4FIXAU M12 Socket, Panel Mount, PG / M Assembly
Product type
Sensor/actuator built-in connector
Connector type
Socket, built-in
Connector standard
Sensor connector
Connection side A
Cable, open end
Connection side B
M16 socket, built-in
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 10.99 / piece)
€ 10.99
incl. VAT
14-day return policy included
Technical specifications
- Protection class IP67
- Type
EF12M4FIXAU
- Product type
Sensor/actuator built-in connector
- Connector type
Socket, built-in
- Connector standard
Sensor connector
- Connection side A
Cable, open end
- Connection side B
M16 socket, built-in
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Open end cable
- Bore Ø
15.50 mm
- Thread type connection side
M16
- Thread type (wiring and installation)
PG9
- Cable colour
Brown
Blue
Black
- Contact material
CuSn
- Contact surface
Gold plated
- Sensor/actuator connectivity fittings
M16 front panel fitting
IP67
- Min. temperature
-25 °C
- Max. temperature
+90 °C
- Seal type
Screw-on
- Manufacturer part #
933039200
- Content
1 pc(s)
- Cable Ø range
- RoHS-compliant
- Type
Connector socket
- Type
EF12M4FIXAU
- Connection
-
- Contacts
gold-plated
Documents & Downloads
Datasheet
Datasheet 735220 Hirschmann 933039200 EF12M4FIXAU M12 Socket, Panel Mount, PG / M Assembly
Description
For installing control systems and switchboards in a housing.
Scope of delivery
- Mounting nuts not included.
Hints
Matching nuts ELST MPG 9 Order No. 73 51 80-LA; ELST MM 16 Order No. 73 04 53-LA;
