Name: Hobbywing LCD Programmierbox Pro Programmer Compatible with (controller): Hobbywing Xerun, Ezrun, Platinum
Brand: Hobbywing
SKU: 3400199
Availability: SoldOut

Multifunctional LCD Programming Box with Display. Options: 'Parameter Settings', 'Data Record', 'Mode Setting', 'System Settings'. Buttons: 'Save', 'Back', 'Cancel'.

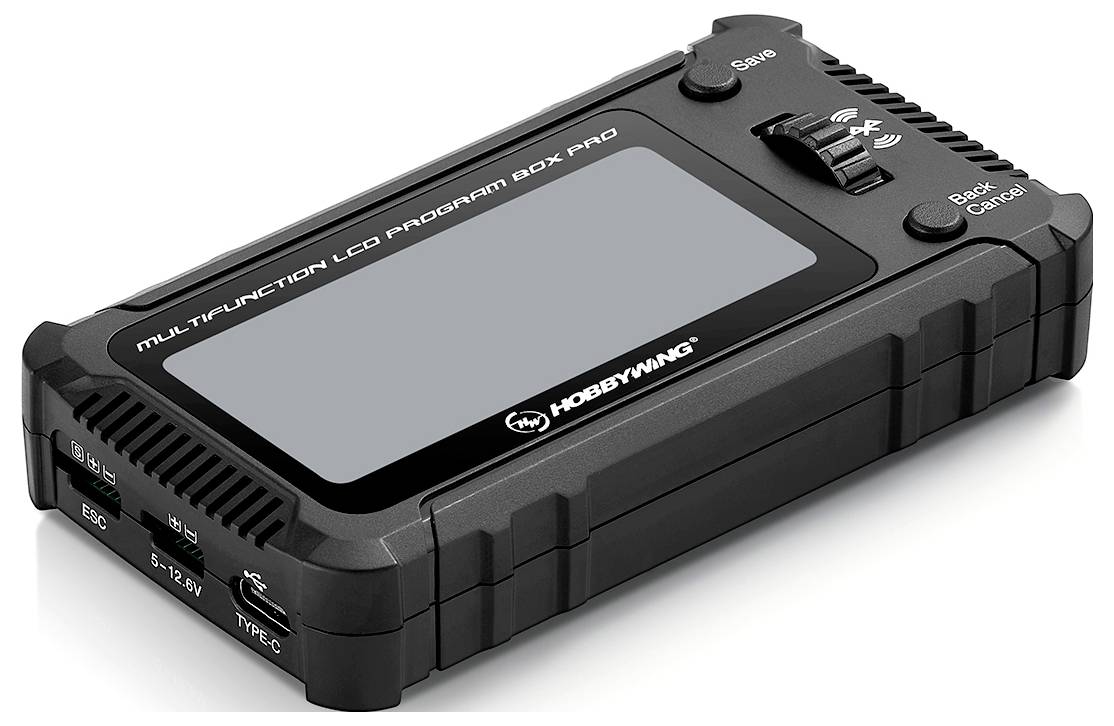

'Black LCD programming box with multiple buttons on the side, labelled 'Multifunction LCD Program Box Pro'. Primarily for hobby electronics.'

1/2

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 48.99 / piece)

€ 48.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Input voltage DC 5-12.6V
USB type-C, controller, power supply connections
Display: 2.8' LCD
LiPo measurement 2-8S LiPo/LiIon/LiFe
Accuracy +/- 0.1V

Product type: Programmer

Dim: (L x W) 106 mm x 59 mm

Length: 106 mm

Width: 59 mm

Compatible with: Hobbywing Xerun, Ezrun, Platinum

Weight: 85 g

Manufacturer part #: 30502002

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3400199 Hobbywing LCD Programmierbox Pro Programmer Compatible with (controller): Hobbywing Xerun, Ezrun, Platinum

Description

The multifunctional LCD Programmer Pro offers the possibility of programming the brushless controller comfortably and quickly with the 2.8" large LCD-screen - whether while traveling or at home at the computer. The box can be connected to a computer using a USB-C adapter, for example, to update the firmware. As an additional feature, the LCD programming box can also measure the voltage of individual lithium cells or whole packs. That is, three outstanding functions in one compact device.

Note: Please note the programming settings of your controller to find out which values can be set. Do not supply power to the programming box, unless your controller's instructions provide power to the programming box.

This text is machine translated.

Features

High-contrast display with 2.8'' diagonal screen size (approx. 7cm)
Adjustment of the background lighting in 20 available stages
Simple operation thanks to steering wheel
Save and record controller settings
Built-in Akku Tester for 1-8S batteries
Built-in Bluetooth signal
Compatible with HW Link V2 APP (iOS and Android)
Supports the following controllers: XERUN Auto-Regulator: Version 2.0 and later, EZRUN Auto-Regulator: Version 2.0 and later, Platinum Helicopter/Flight Controller, SEAKING PRO BOOT-Regulator, Selected QUICRUN Auto-Regulator
