Honeywell Home Smart TRV set Honeywell evohome EVO-HOUSE
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 385.00 / piece)
€ 385.00
incl. VAT
Only 2 Piece(s) available
Highlights & Details

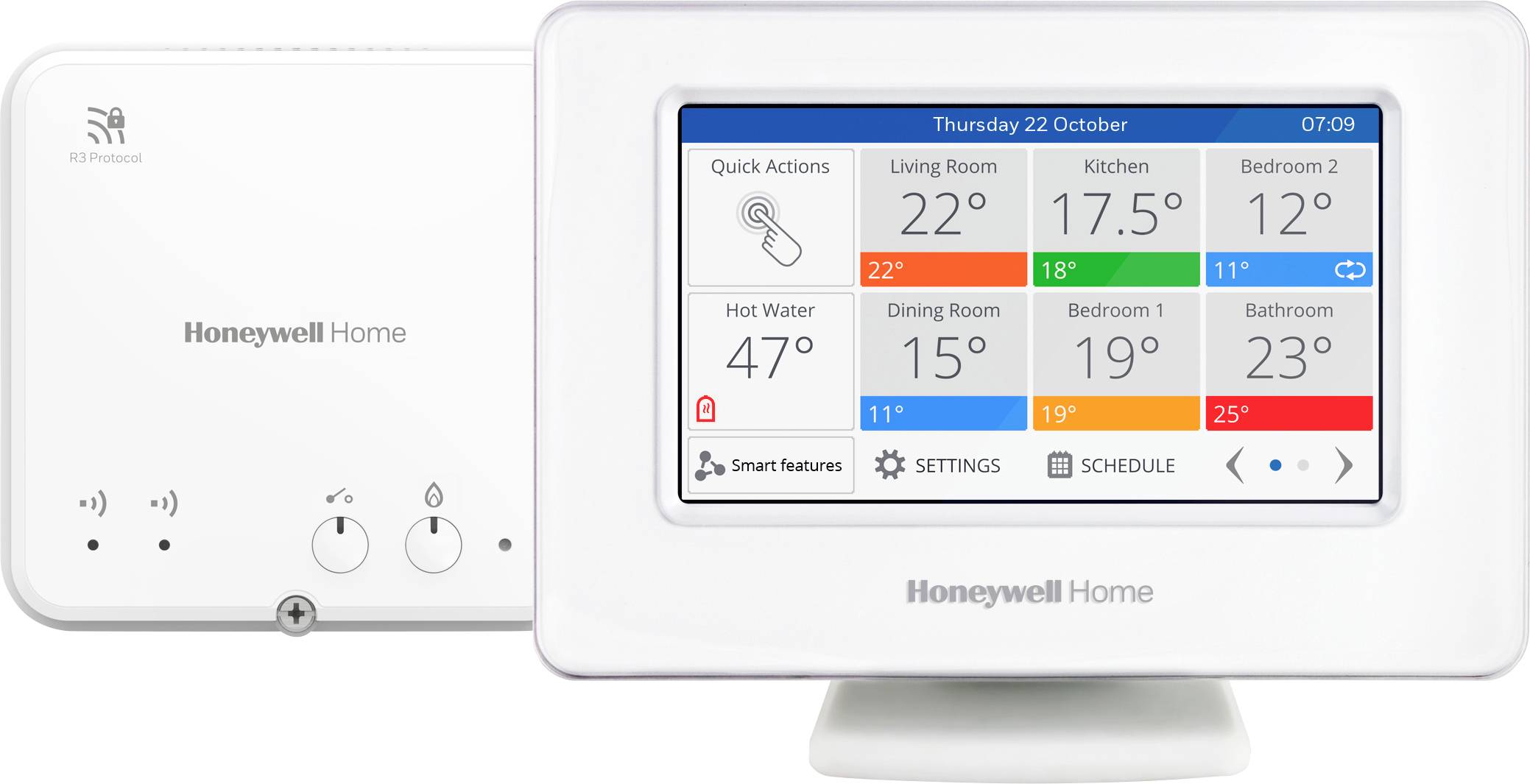

Evohome - Smart Heating Control - Convenient, Smart and Economical (Central Control Unit Wi-Fi with Touch Screen Colour Display + Control Module)
- Evohome control for individual zone regulation up to 12 zones as well as hot water storage Control of heating and cooling
- Control of boilers and heat pumps via universal control module
- Intelligent outdoor temperature options
- Temperature control, based on the patented self-learning Fuzzy-Logic, for a precise and economical room control
- Optimization functions calculate the heating up and cooling times and enable the adjustment of the actual heating and cooling requirements
- Adaptive heating control continuously adjusts to the climate and the climate over the course of the year
- Heating load of the system
- Patented, extended load scaling for the most efficient boiler control of boiler with ON/OFF control in partial-load operation
- Can be adjusted to individual heating and cooling characteristics
- Exceeding the highest energy efficiency rating for heating systems (ErP class VIII)
- Large backlit color touchscreen display with easy-to-read zone and
- Temperature information
- Action key for frequently used
- Override features: Absence mode, Saver mode, Day Off mode, and System Off mode are present by default
- Intuitive programming thanks to user-guided programming assistant
- Remote connectivity enables you to control your smartphone while on the move
- Improved and simplified integration of system components to reduce
- Installation time and costs
- Compatible with a variety of system components that are available through our Ramses
- III technology for encrypted wireless communication
- Tested wireless communication without interference by interior fittings
Technical specifications
- Multi-zone control system evohome, room controller electrical data
- Power supply 5 V DC ± 0.2 V max 2.6W
- Table stand or wall bracket (see accessories)
- Batteries: 2 x rechargeable batteries, type AA 1.2 V NiMH 2,000-2,400mAh
- Touch-screen, 96 x 56 mm (B x H) LCD color screen 480 x 272 pixels, 24 bit color depth
- Temperature sensor: NTC sensor (internal)
- Temperature range 0 – 35 oC
- IP30 protection
- Specifications
- Operating temperature O - 40 °C
- Dimensions 136 x 93 x 20 mm (W x H x D)
- Radio communication
- Radio frequency ISM 868 – 870 MHz,
- Receiver category 2
- Radio range: RX class 2, 30m on one
- Floor in residential buildings
- WLAN: IEEE 802.11b, g, n (2.4 GHz)
- Universal control module R9H electrical data
- Power supply: 230 V AC
- Contact load relay 24/230 V AC, 50 - 60 Hz, 0.5 A - 5 A resistive load
- 0.5 A - 3 A inductive load (0.6 pF)
- Wiring: Terminal block for wires up to 1.5mm2
- Wiring Access: Via large opening on the rear side of the wall housing
- Or directly onto the terminals from below. Power Wiring - Left Low Voltage Wiring - Right
- IP30 protection
- Specifications
- Operating temperature: 0 - 40 °C
- Dimensions 110 x 110 x 40 mm (W x H x D)
- Radio communication
- Radio frequency: Short range device 868 - 870MHz
- Radio power 25 mW
- Wireless range: RX class 2 30 m within residential buildings
- Product type
Smart TRV set
- Series
Honeywell evohome
- Operation type
electronical
Manufacturer-specific
- Power supply (LOV)
mains-powered
- Switching cycle
7 day mode
- Frequency
868 MHz
IP30
- Max. temperature setting
+35 °C
- Min. temperature setting
0 °C
- Factory colour
White
- Width
136 mm
- Height
93 mm
- Depth
20 mm
- Weight
1000 g
- Content
1 pc(s)
- Dim
(W x H x D) 136 x 93 x 20 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3457576 Honeywell Home Smart TRV set Honeywell evohome EVO-HOUSE
User & Safety Instructions
User & Safety Instructions 3457576 Honeywell Home Smart TRV set Honeywell evohome EVO-HOUSE
User & Safety Instructions 3457576 Honeywell Home Smart TRV set Honeywell evohome EVO-HOUSE
User & Safety Instructions 3457576 Honeywell Home Smart TRV set Honeywell evohome EVO-HOUSE
Description
Evohome - Heating control that's smart for your home. You can enjoy your favorite temperature in every room - whenever and however you want. With evohhome you can control your heating intelligently, efficiently and easily by APP or directly at the device. Whether living room, bedroom or bathroom: Evohhome thinks along – and saves energy and costs. Individual temperature control - room for room. Saving energy was never so comfortable. Easy to install, get immediate benefit.
This text is machine translated.
This text is machine translated.
Features
- The regulator is part of the evohhome room control system and communicates wirelessly with the radiator controllers EVO-TRV and the universal device control module R9H via the proven 868 MHz encrypted radio technology. The majority of heating systems can be extended with evohhome without major interruptions and no re-wiring.
Scope of delivery
- LCD-colour display:
- Touch screen
- Table stand
- With 6 bits. Power cable
- Inc. batteries
Hints
One-family houses with gas-/oil-/electric-/solid fuel boiler as well as air- and earth heat pumps
System requirements
- Evohome can be controlled remotely on any PC using Android and Apple smartphones or browsers. Smart home integration into third-party systems is also possible via IFTTT, Google assistant and Amazon Alexa.
