HT Instruments HT14D Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standards CAT II 600
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Mini multimeter with battery test function
- AC voltage from 0.1 V to 500 V.
- DC voltage from 0.1 mV to 500 V.
- DC current 1 µ A to 200 mA
- Resistance from 0.1 Ω to 2 MΩ
- Data hold
- Diode test
- Battery test for 9 V batteries
- SAFETY: IEC/EN 61010-1, CAT III 300 V, CAT II 600 V.
- Power supply: 1x 12 V battery type MS21, MN21
- Display: LCD, 3 ½ dgt, 2000 points
- Dimensions (L x W x H) 105 x 50 x 25 mm
- Weight: 100 g
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
500 V
- V AC reading range (min.)
0.1 V
- V AC reading range (max.)
500 V
- Amperage reading range DC (min.)
1 µA
- A DC reading range (max.)
200 mA
- Reading range - resistance
0.1 Ω - 2 MΩ
- Height
25 mm
- Width
50 mm
- Length
105 mm
- Weight
100 g
DAkkS standards
- Reading category
CAT II 600 V
CAT III 300 V
- Voltage metering
AC/DC
- Current reading
DC
- Type
HT14D
- Display
Digital
- Display (counts)
2000
- Dim
(L x W x H) 105 x 50 x 25 mm
- Features
Conforms wth DAkkS standards
Documents & Downloads
Datasheet
Datasheet 2469034 HT Instruments HT14D Handheld multimeter Calibrated to (DAkkS standards) Digital Conforms wth DAkkS standards CAT II 600
Description

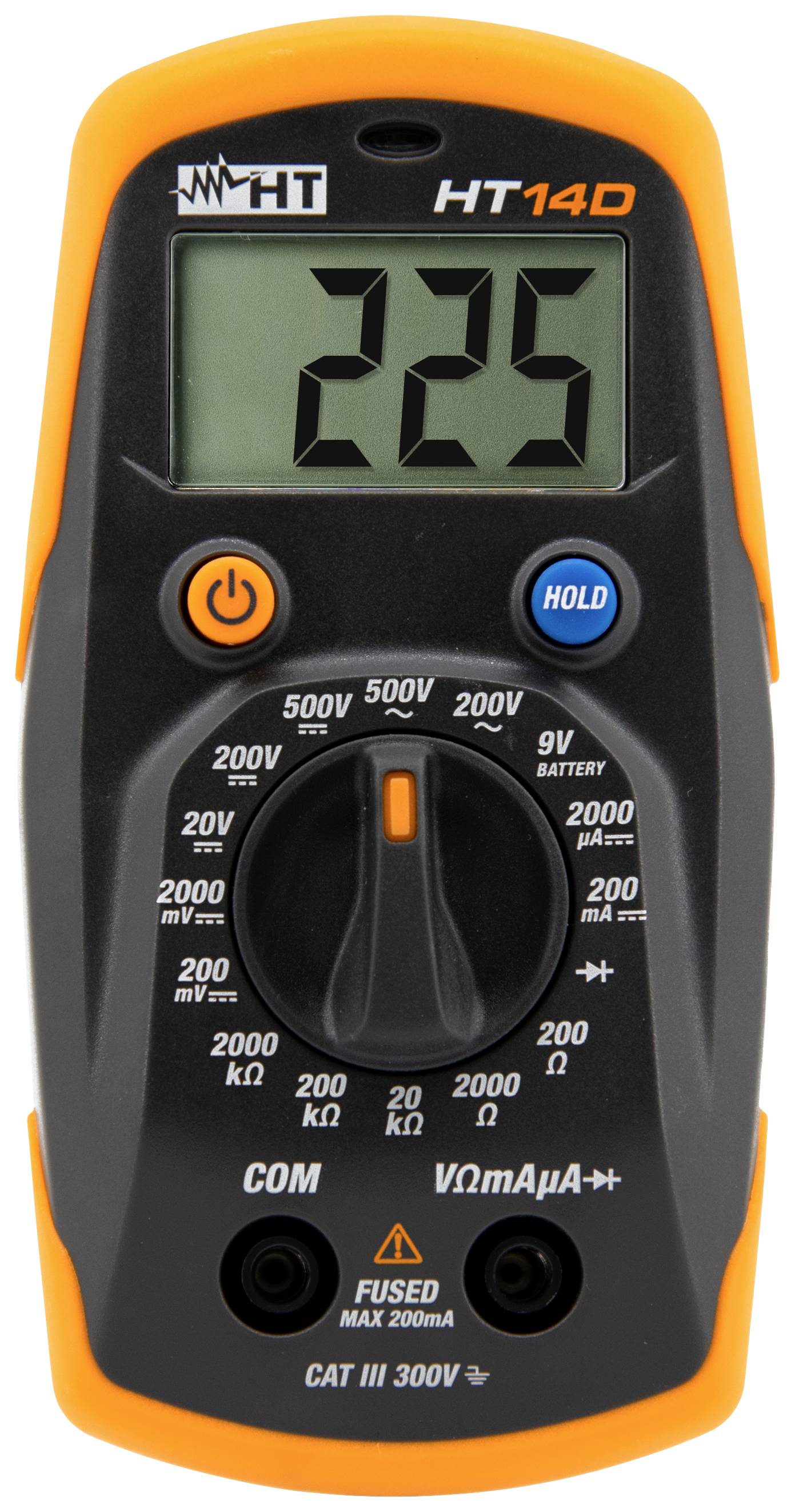

The HT14D is a very compact digital multimeter with a large LCD display, for AC/DC voltage up to 500 V and DC current up to 200 mA, resistance, battery test and diode test in electrical installations with cat III 300 V.
This text is machine translated.
This text is machine translated.
Scope of delivery
- measurement cable
- Protective case
- Battery
- User manual.
