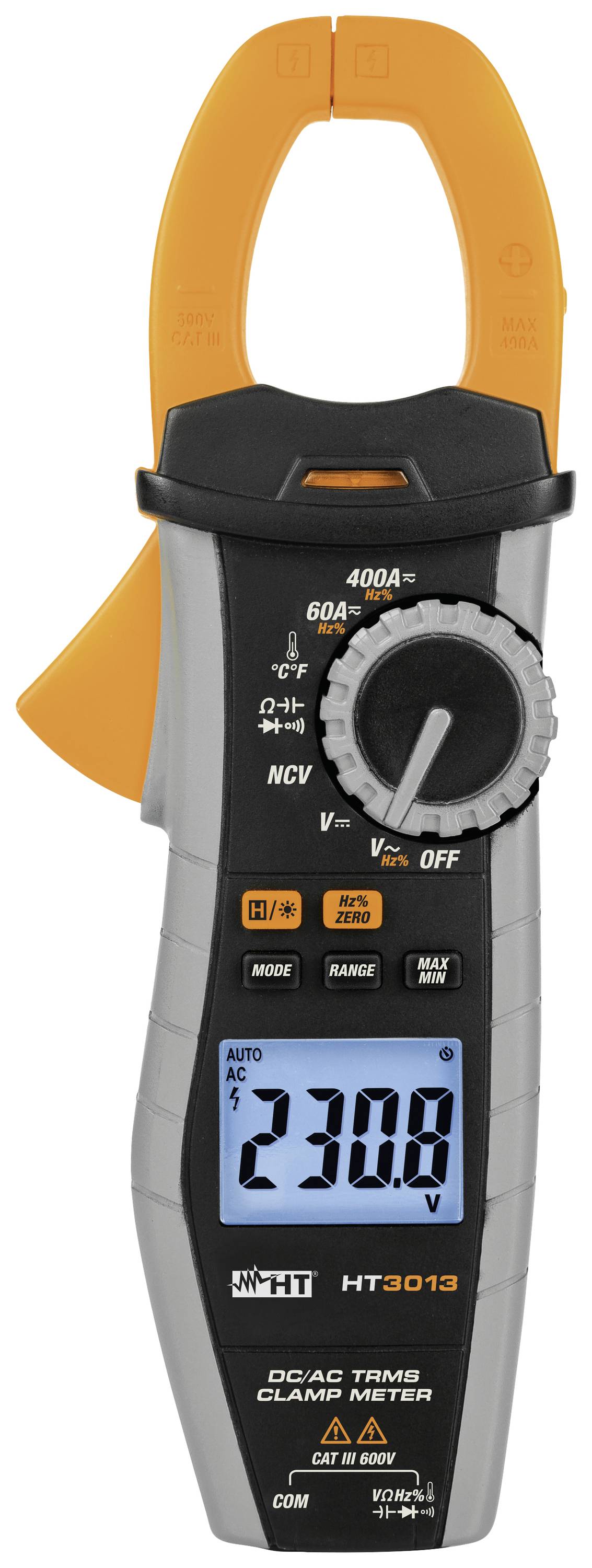

HT Instruments HT3013 Clamp meter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 6000
EAN:
Part number:
Item no:
Highlights & Details
TRMS clamp-on ammeter for AC/DC 400A current ISO
- AC current up to 400 A (TRMS)DC current up to 400 A.AC/DC voltage up to 600 V (TRMS)Resistance measurementContinuity test with buzzer"Voltage" sensorFrequencyCapacitanceDiode testTemperature using a K-type sensorSample ratioAutomatic range selection / Data HOLDRelative measurement/auto Power off
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.01 A
- A DC reading range (max.)
400 A
- A AC reading range (min.)
0.01 A
- Amperage reading range AC (max.)
400 A
- Reading range - resistance
0.1 Ω - 60 MΩ
- Reading range - capacity
0.01 nF - 6 mF
- Frequency reading range
0.01 Hz - 60 kHz
- Temperature
-50 °C - 760 °C
- Power supply (details)
1.5 V
- Height
42 mm
- Width
81 mm
- Length
220 mm
- Weight
320 g
ISO standards
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
HT3013
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 220 x 81 x 42 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2743384 HT Instruments HT3013 Clamp meter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 6000
Description
The clamp-on ammeter HT3013 can display AC/DC currents up to 400A and AC/DC voltages up to 600V, resistance, frequency, capacity, duty cycle, pulse ratio, Measure temperature with K-type probes, continuity and diode test. The device provides a visual (LED) and audible (buzzer) indication of whether alternating voltage is present thanks to a non-contact internal detector. In accordance with IEC / EN 61010-1 HT3013 is Ideal for measurements in domestic and industrial environments.
This text is machine translated.
This text is machine translated.
Features
- Display: LCDPower supply: 3 x 1.5 V AAA batteriesAuto Power OFF: After 15 minutes in stand-by modeSECURITY: IEC/EN 61010-1, IEC61010-2-032, IEC61010-2-033Insulation: Double insulationPollution level: 2Protection class: IP40
Scope of delivery
- Pair of test leads
- Batteries
- Bag
- User manual
- K-type wire probe + adapter
