Name: HT Instruments IRONMETER Handheld multimeter Calibrated to (ISO standards) Digital Data Hold function, ISO calibration,
Brand: HT Instruments
SKU: 2203423

Highlights & Details

Extremely robust TRMS multimeter up to 600 V / 20 A AC/DC

CAT III 600 V

Technical specifications

Voltage reading range DC (min.): 0.1 mV

Product type: Handheld multimeter

Voltage DC reading range (max.): 600 V

V AC reading range (min.): 0.001 V

V AC reading range (max.): 600 V

Amperage reading range DC (min.): 0.1 µA

A DC reading range (max.): 10 A

A AC reading range (min.): 0.1 µA

Amperage reading range AC (max.): 10 A

Reading range - resistance: 0.1 Ω - 40.00 MΩ

Reading range - capacity: 0.01 nF - 4000 µF

Frequency reading range: 10.00 Hz - 10.00 kHz

Measurement type (details): True RMS

Power supply (details): 2 x 1.5 V AAA batteries

Height: 45 mm

Width: 65 mm

Length: 120 mm

Weight: 200 g

: ISO standards

Reading category: CAT III 600 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: IRONMETER

Display: Digital

Display (counts): 4000

Dim: (L x W x H) 120 x 65 x 45 mm

Calibration service: 5 calibration values per range; VDC, VAC, ADC, AAC, ohms, capacitance, frequency, temperature

Features: Data Hold function
ISO calibration
Screen back-lighting
Continuity tester
Capacitance testing

Documents & Downloads

Datasheet

Datasheet 2203423 HT Instruments IRONMETER Handheld multimeter Calibrated to (ISO standards) Digital Data Hold function, ISO calibration,

User & Safety Instructions

User & Safety Instructions 2203423 HT Instruments IRONMETER Handheld multimeter Calibrated to (ISO standards) Digital Data Hold function, ISO calibration,

Description

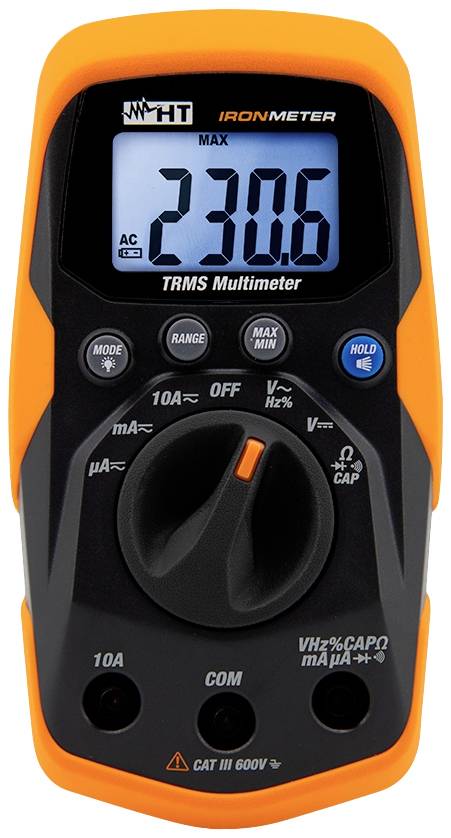

The IRONMETER is a professional, precise TRMS multimeter with a shock and break-proof casing. It offers all the important functions of a True RMS multimeter in a single, compact handheld device. The casing was developed especially according to the latest technology, in order to make the multimeter more robust than ever before and to come close to the indestructible. The measuring functions allow the use in almost all electrical areas. The IRONMETER corresponds to IEC/EN 61010-1 as well as the overvoltage category CAT III 600 V.

This text is machine translated.

Scope of delivery

2 test leads with 4 mm probes
2 Batteries AAA
User manual
Protective case.

Hints

Please note the sample calibration certificate stored under "Downloads" for the scope of the calibration. Your right to cancel does not apply to this product.
