HUAWEI 98012382 S310-24P4X Network switch 1 GBit/s PoE

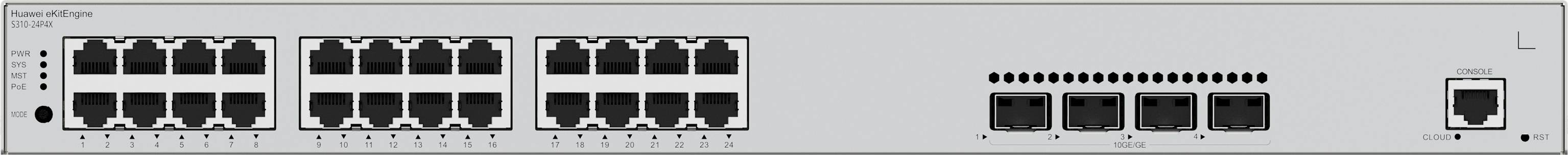

A network switch with multiple ports for connecting devices in a local network. Shows front view and connections.

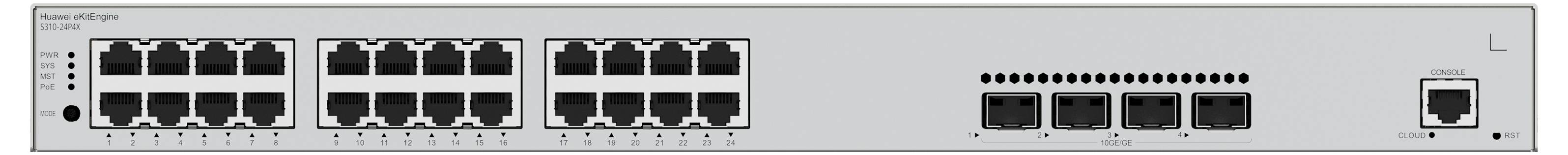

Grey network switch with four rows of Ethernet ports, LED indicators on the left and a single port on the right.

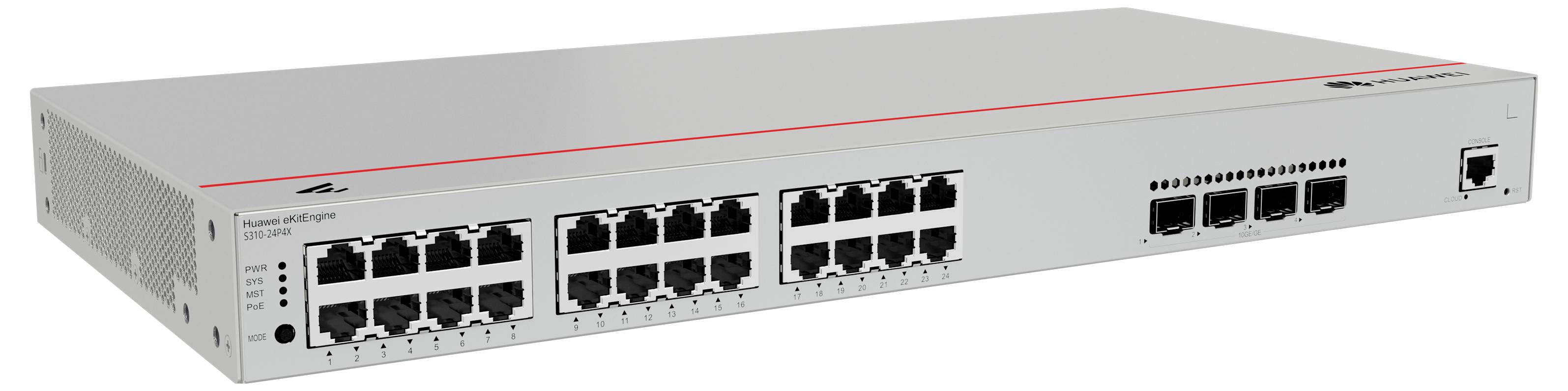

Network switch with 16 Ethernet ports and 2 SFP ports. Device in grey colour, suitable for managing local area networks.

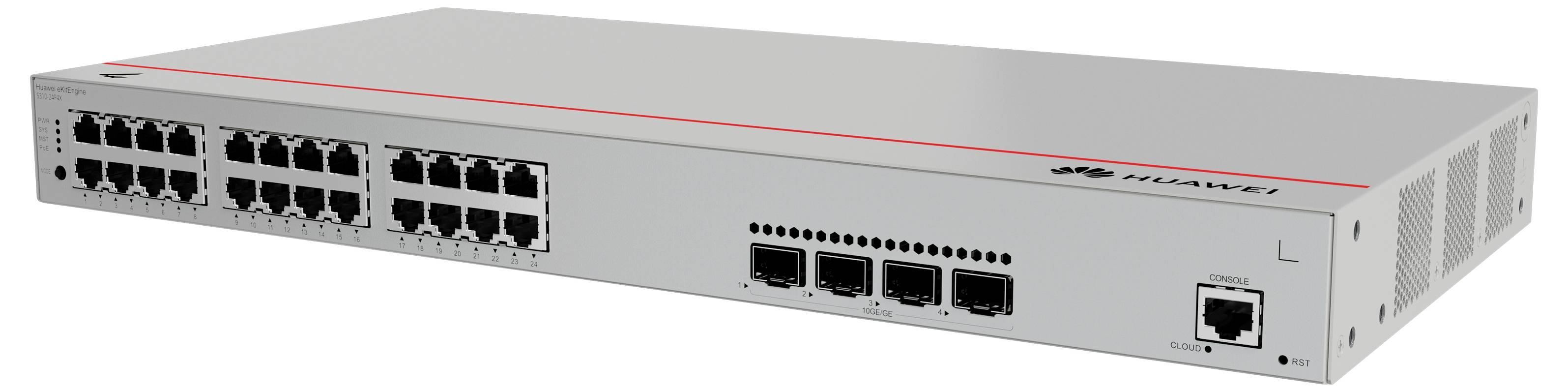

A grey network switch with multiple Ethernet ports and light indicators on the front, suitable for IT infrastructures.

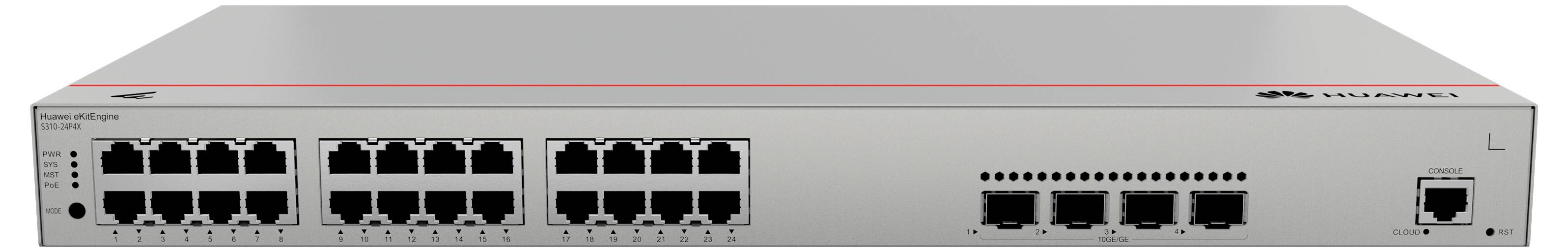

A network switch with 24 Ethernet ports and additional uplink ports, suitable for connecting network devices in an office.

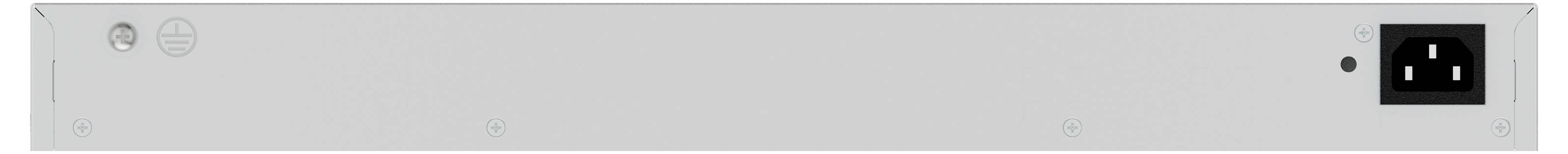

Rear view of a silver device front panel with a power on/off button on the left and power socket on the right.

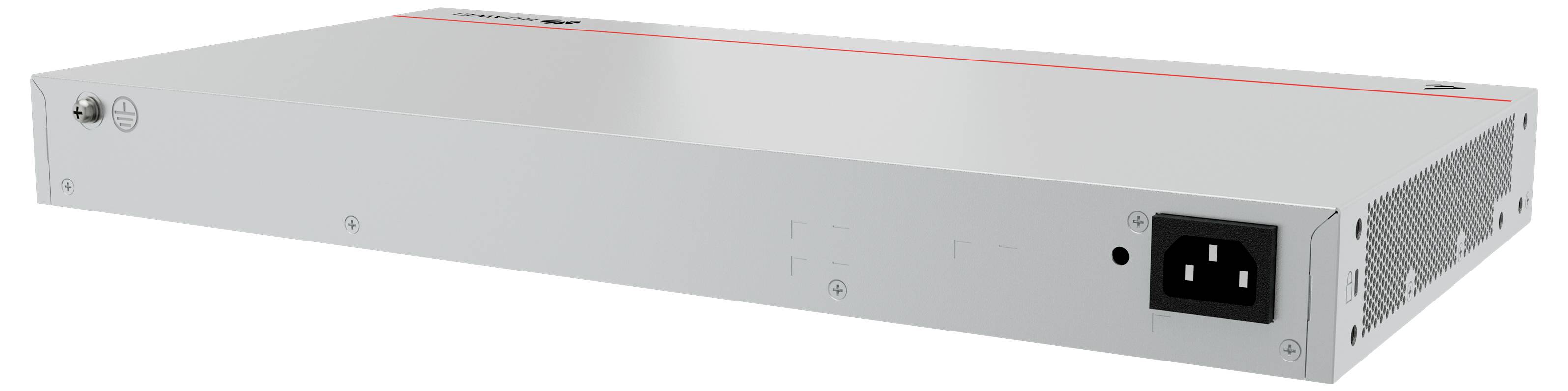

Silver metal network router with network connection on the right side. Ventilation grille at the back for heat dissipation. No visible branding.
1/7
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

HUAWEI S310-24P4X Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U gray

  • Number of basic switching RJ-45 Ethernet ports: 24 console port: RJ-45
  • 10G support
  • 1U Rack-mounting
  • AC power supply includes Power over Ethernet (PoE)
  • This text is machine translated.

Technical specifications

  • Number of basic switching RJ-45 Ethernet ports: 24
  • Basic Switching RJ-45 Ethernet ports Type Gigabit Ethernet (10/100/1000)
  • Number of SFP modules installed: 4
  • Console port RJ-45
  • 10G support: Yes
  • DHCP functions: DHCPv6 snooping
  • Rack mounting: Yes
  • Form factor: 1U
  • Case material: metal
  • LED indicators: Yes
  • International protection class (IP code): IP20
  • Storage capacity: 1 MB
  • Flash memory 2000 MB
  • Energy source: AC
  • Power supply included: Yes
  • AC input voltage 100 - 240 V
  • AC input frequency 50/60 Hz
  • Power consumption (standard mode) 37.12 W.
  • Max power consumption: 485.91 W
  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) 400 W total power
  • Operating temperature -5 °C - 50 °C
  • Temperature range during storage -40 - 70 °C.
  • Operating relative humidity: 5 - 95%
  • Operating height 0 - 5000 m
  • Height during storage: 0 - 5000 m.
  • Heat dissipation 126.65 BTU/h
Product type

Network switch

LAN transfer rate

1000 MBit/s

Transfer rate

1 GBit/s

Working principle

Managed switch

Ethernet ports

24

SFP ports

4 x

10/100/1000 Mbps ports

24 x

Router features

PoE

Weight

3.80

Width

442 mm

Height

43.6 mm

Depth

220 mm

Type

S310-24P4X

Rack size

483 mm (19")

Interfaces

RJ45

Factory colour

Grey

Max. ambient temperature

50 °C

Min. ambient temperature

-5 °C

Cable length

0 cm

Control LEDs

Yes

Design height

43.6 mm

Keyboard layout

German, QWERTZ

Rack mount option

Yes

Power consumption (ON)

37.12 W

Power supply (details)

100 - 240 V

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2337454 HUAWEI 98012382 S310-24P4X Network switch 1 GBit/s PoE

Description

Features

  • Basic Switching RJ-45 Ethernet ports Type Gigabit Ethernet (10/100/1000)
  • Number of basic switching RJ-45 Ethernet ports: 24
  • Number of SFP modules installed: 4
  • Console port RJ-45
  • Power over Ethernet (PoE)
  • Rack installation
  • Form factor: 1U
