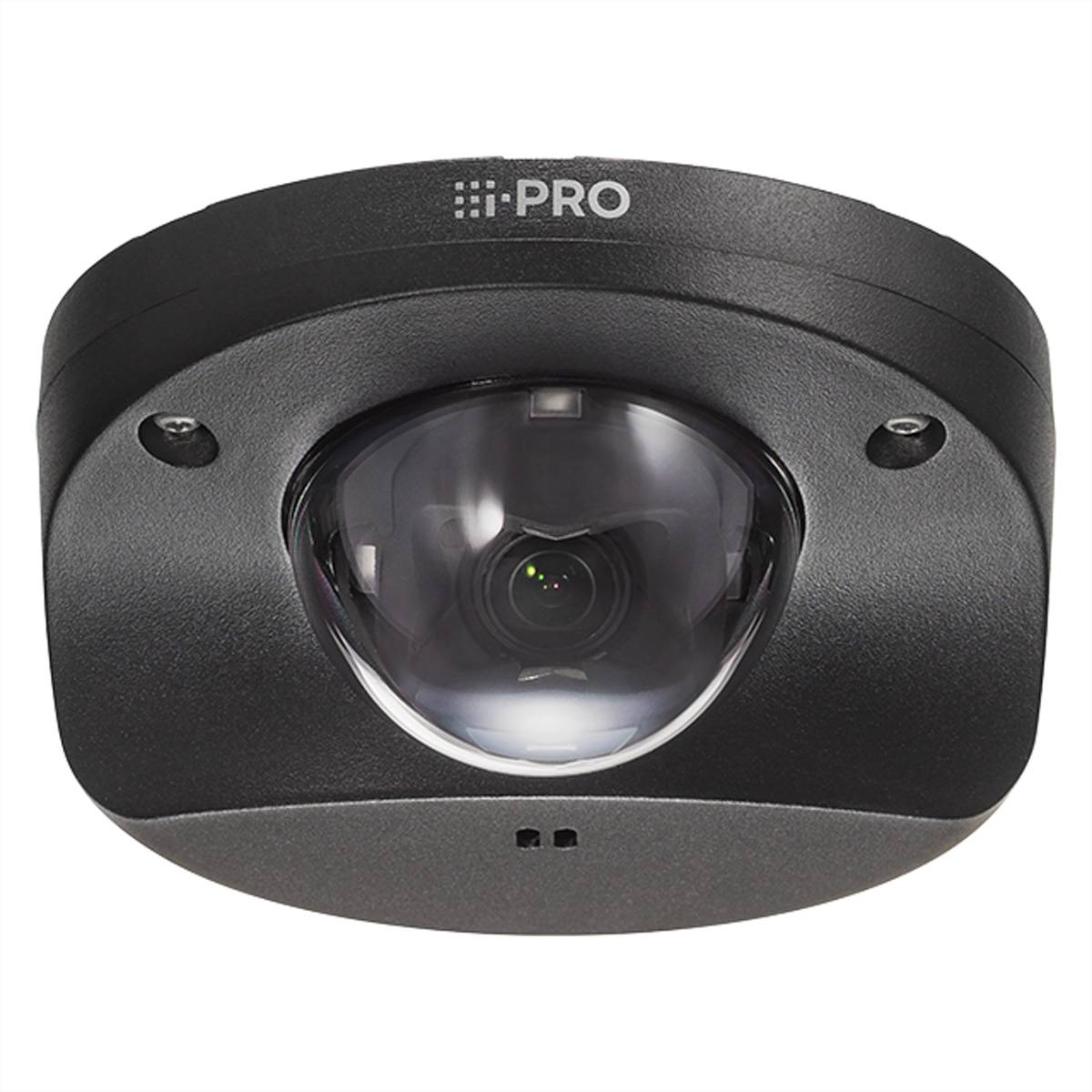

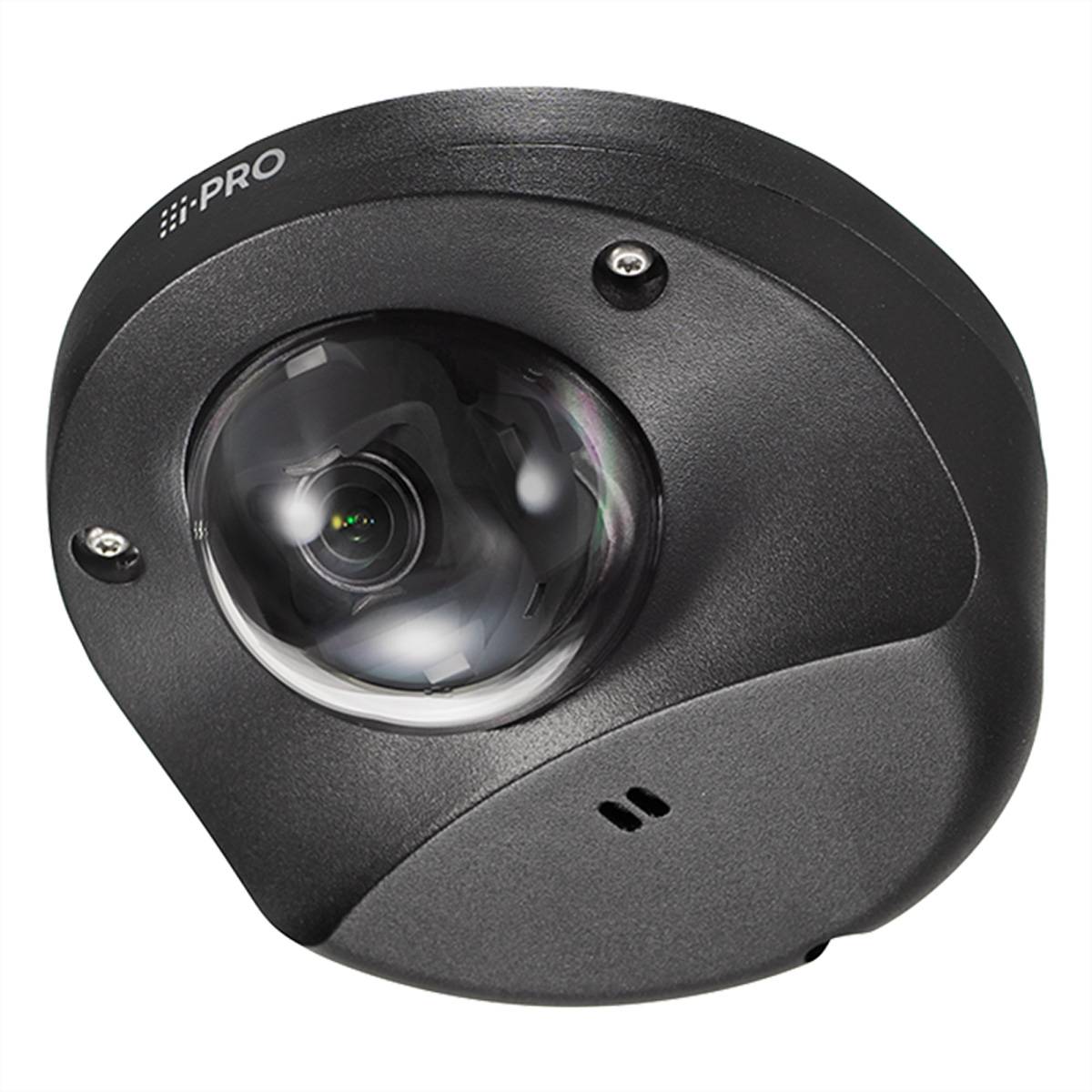

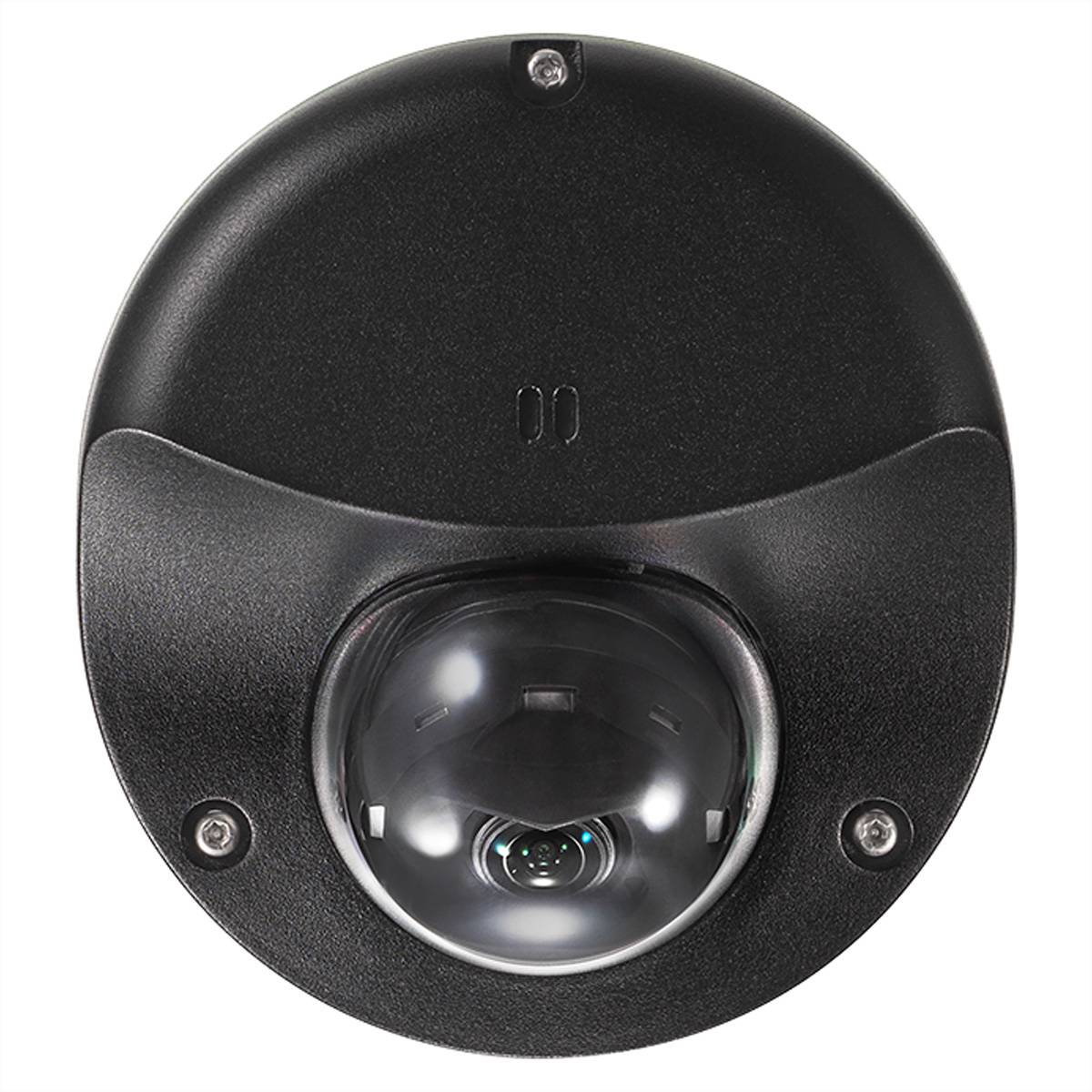

i-PRO i-PRO 2MP AI OUTDOOR VANDAL Compact Dome WV-S35302-F2L1
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
I-PRO WV-S35302-F2L1 Security Camera Outdoor IP Security Camera 1920 x 1080 Pixels
- Outdoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 1920 x 1080 pixels
- Wired Ethernet/LAN
- Night vision 21 m
- Optical Zoom: 3x
- Dome
- IP66 IK10
- Black
- 475 g
Technical specifications
- Supported positioning: Outside
- Form factor: Dome
- Tilt angle range 0 - 90°
- Supported audio formats: AAC-LC,ADPCM,G.711,G.726
- Transfer type
Corded
- Width
109 mm
- Height
53 mm
- Depth
119 mm
- Weight
475 g
- Factory colour
Black
IP66
- Display resolution
1920 x 1080 Pixel
- Playback of
AAC-LC
- Material (details)
Aluminium
Resin
- Microphone
Yes
- Type
IP-security camera
- Sensor type
CMOS
- UKCA
not relevant
- Operating temperature (T-T)
-40 - 50 °C
- Ethernet LAN
yes
- Minimum illumination
0.02 Lux
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Number of users
14 Benutzer
- Number of lenses
1
- Privacy masking
yes
- Text caption overlay
yes
- Power consumption (Power over Ethernet (PoE))
8.6 W
- Privacy protection
yes
- Number of sensors
1
- Noise reduction
yes
- Closest focusing distance
0.5 m
- Web browser
yes
- Pan range
-45 - 45°
- Highlight Compensation (HLC)
yes
- Observe distance
6.8 m
- Detect distance
17.1 m
- Recognize distance
3.4 m
- Identify distance
1.7 m
- Dynamic range
144 dB
- Number of effective pixels (H x V)
5,57 x 3,13 p
- Card reader integrated
yes
- Frame rate
60 fps
- Bit rate range
16 - 128 Kbit/s
- Digest authentication
yes
- Number of Privacy masking areas
8
- Zoom capability
yes
- Maximum aperture number
2.1
- Night vision
yes
- Power consumption
180 mA
- Fixed focal length
2.4 mm
- Video motion detection
yes
- Audio detection
yes
- Maximum memory card size
512 GB
- Operating relative humidity (H-H)
10 - 100 %
- Optical zoom
3 x
- Total megapixels
2 MP
- Back Light Compensation (BLC)
yes
- HTTPS encryption
yes
- Number of cameras
1
- Fog proof
yes
Documents & Downloads
Datasheet
Datasheet 3798733 i-PRO i-PRO 2MP AI OUTDOOR VANDAL Compact Dome WV-S35302-F2L1
User & Safety Instructions
User & Safety Instructions 3798733 i-PRO i-PRO 2MP AI OUTDOOR VANDAL Compact Dome WV-S35302-F2L1
Description
2 Megapixel Compact Outdoor Dome Camera with AI Engine The WV-S35302-F2L1 S-Series Outdoor Compact Dome Network Cameras 2MP(1080p)@60fps, 2.4mm, 1x, H:132deg.V:74deg., H.265/H.264/JPEG, WDR[144dB], Preinstalled AI analytics applications, Sound Classification, IA, ONVIF G, M, s, T, microSDXC/microSDHC/microSD, DC48 /PoE, IK10, IP66/NEMA 4X, black model, -30°C to +60°C, -22°F to +140°F, digital certificates by GlobalSign, FIPS 140-2 Level3
This text is machine translated.
Scope of delivery
- I-PRO 2MP AI OUTDOOR vandal compact dome camera
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
