Name: i-PRO i-PRO 5MP OUTDOOR VANDAL Dome Kamera WV-U25502-V3L
Brand: i-PRO
SKU: 3798827

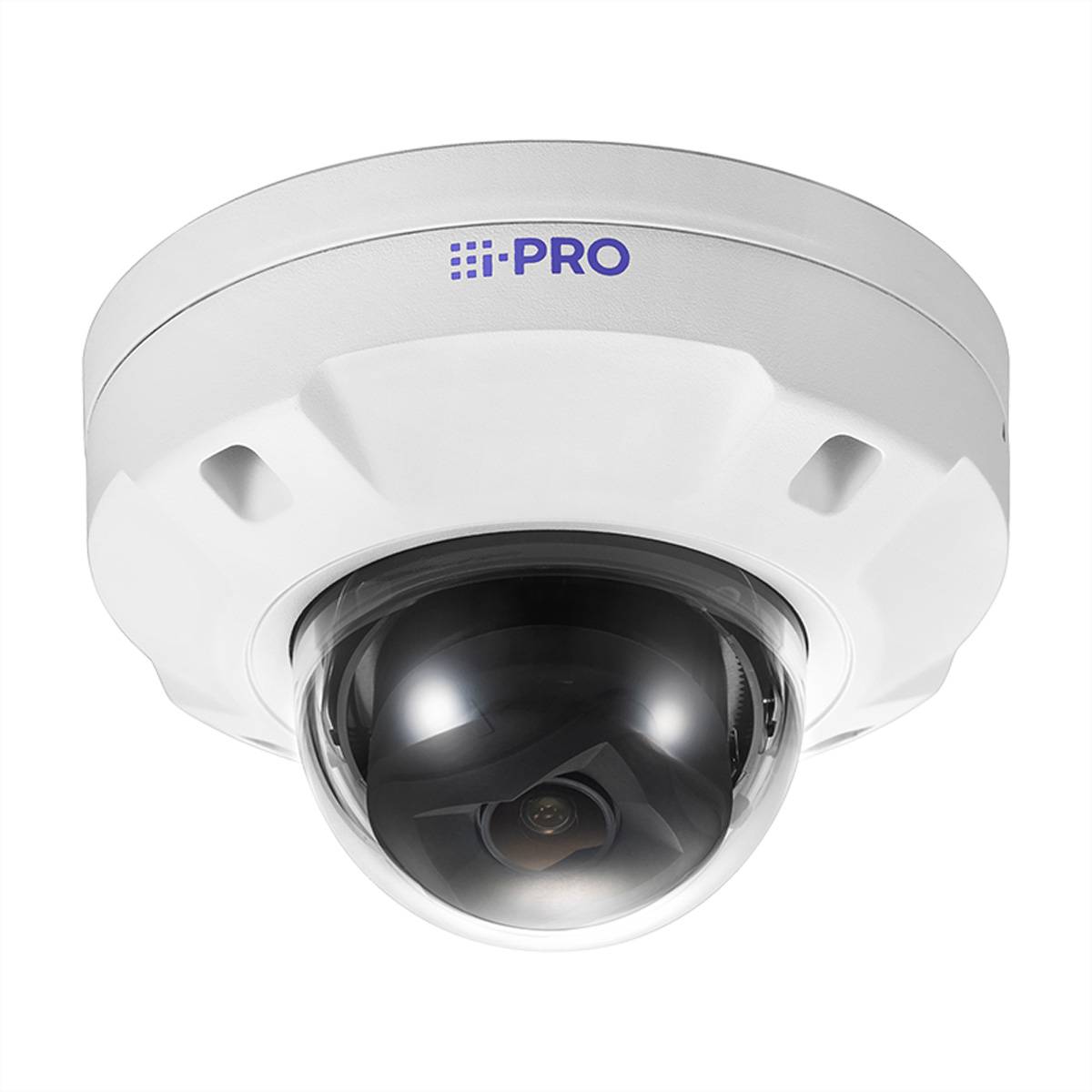

i-PRO i-PRO 5MP OUTDOOR VANDAL Dome Kamera WV-U25502-V3L-0

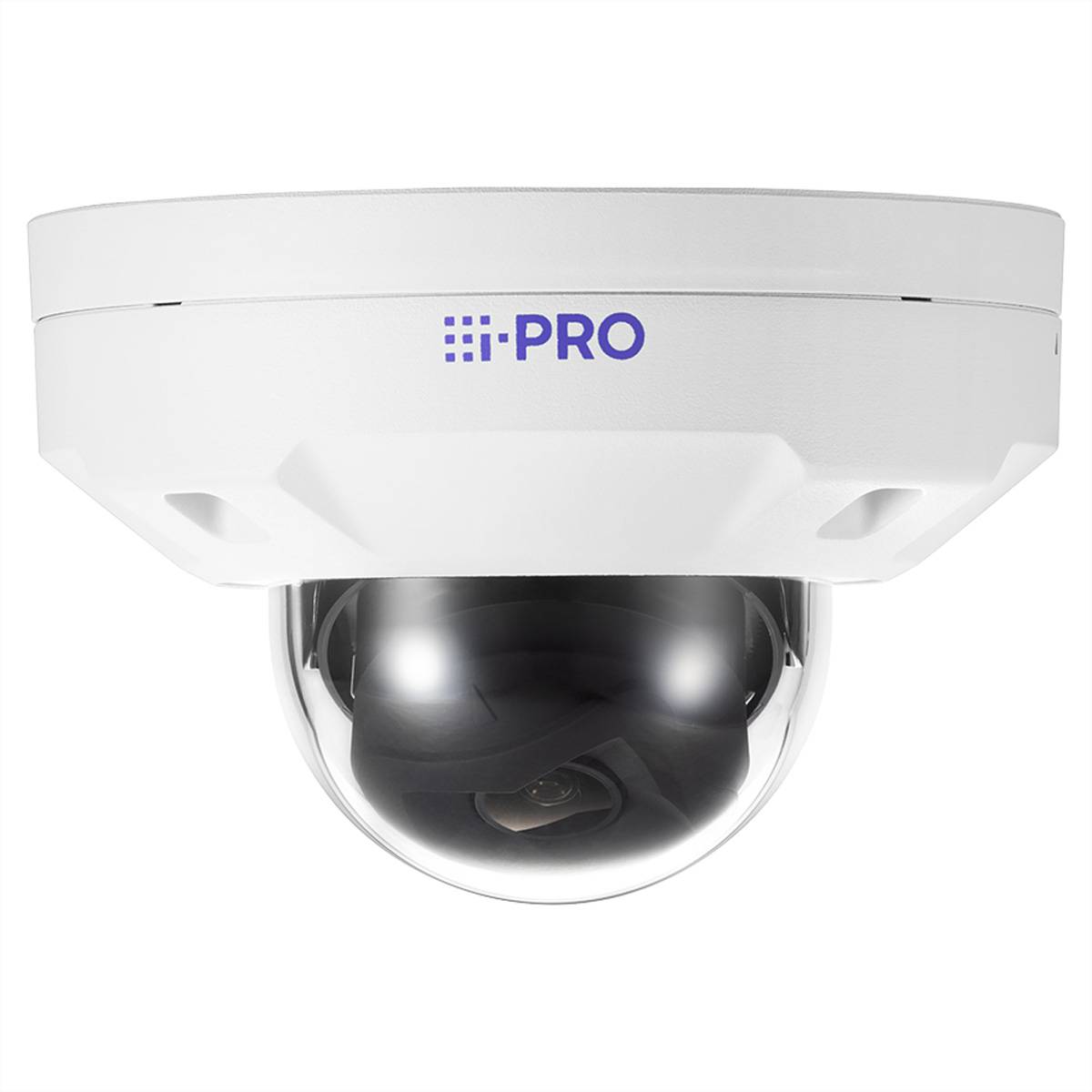

i-PRO i-PRO 5MP OUTDOOR VANDAL Dome Kamera WV-U25502-V3L-1

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

I-PRO WV-U25502-V3L Security Camera Cartridge (Form) IP Security Camera Outdoor 2560 x 1440 Pixel Wall

Outdoor IP security camera
CMOS 25.4 / 2.8 mm (1 / 2.8") 5 MP 2560 x 1440 pixels
Wired Ethernet/LAN
Night view 28 m IR
Optical Zoom: 3.2x Digital Zoom: 12.8x
Cartridge wall (shape)
IP66 IK10
Black, White
1 kg

Technical specifications

Supported positioning: Outside
Form factor: Cartridge (shape)
Tilt angle range 0 - 100°

Transfer type: Corded

Width: 154 mm

Height: 105 mm

Depth: 154 mm

Weight: 1 kg

Factory colour: Black
White

: IP66

Display resolution: 2560 x 1440 Pixel

Material (details): Aluminium
Resin
Stainless steel

Type: IP-security camera

Rotation: 290°

10/100/1000 Mbps ports: 1 x

Power consumption (ON): 9.6 W

Sensor type: CMOS

Safety: 802.1x RADIUS
FIPS 140-3
HTTPS

UKCA: not relevant

Operating temperature (T-T): -30 - 50 °C

Ethernet LAN: yes

Video streaming: yes

Minimum illumination: 0.003 Lux

Optical sensor size: 25,4 / 2,8 mm (1 / 2.8")

Number of users: 14 Benutzer

Number of lenses: 1

Text caption overlay: yes

Privacy protection: yes

Number of sensors: 1

Noise reduction: yes

Closest focusing distance: 2 m

Web browser: yes

Pan range: -180 - 180°

Detect distance (wide): 43.7 m

Detect distance (tele): 205.4 m

Observe distance (wide): 17.5 m

Observe distance (tele): 82.1 m

Recognize distance (wide): 8.7 m

Recognize distance (tele): 41.1 m

Identify distance (wide): 4.4 m

Identify distance (tele): 20.5 m

Highlight Compensation (HLC): yes

Card reader integrated: yes

Frame rate: 30 fps

Camera pan control: yes

Camera tilt control: yes

Digest authentication: yes

Number of Privacy masking areas: 8

Zoom capability: yes

Digital zoom: 12.8 x

Minimum aperture number: 1.6

Maximum aperture number: 3.2

Night vision: yes

Power consumption: 200 mA

Video motion detection: yes

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 10 - 100 %

Optical zoom: 3.2 x

Total megapixels: 5 MP

Back Light Compensation (BLC): yes

Number of cameras: 1

Fog proof: yes

Documents & Downloads

Datasheet

Datasheet 3798827 i-PRO i-PRO 5MP OUTDOOR VANDAL Dome Kamera WV-U25502-V3L

User & Safety Instructions

User & Safety Instructions 3798827 i-PRO i-PRO 5MP OUTDOOR VANDAL Dome Kamera WV-U25502-V3L

Description

5 Megapixel outdoor IR dome camera (3.2 x Zoom) The WV-U25502-V3L, outdoor, dome, 5MP@30fps, RICOM, 3.2x, H:28 to 99deg.V:15 to 52deg., IR, H.264/H.264/JPEG, WDR[120dB], ONVIF G, s, T, microSDXC, PoE, IK10, IP66, white (i-PRO), -30 °C to +50 °C, FIPS 140-3 level 3
