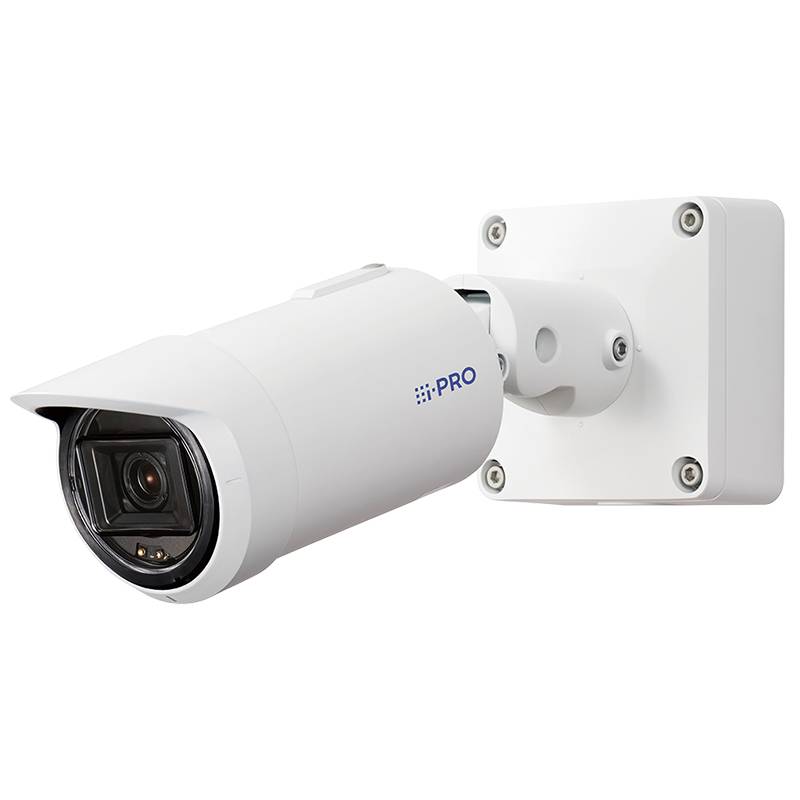

Name: i-PRO i-PRO WV-S1536LNA Bullet Kamera 2 MP, 37 WV-S1536LNA
Brand: i-PRO
SKU: 3798717

i-PRO i-PRO WV-S1536LNA Bullet Kamera 2 MP, 37 WV-S1536LNA-0

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

I-PRO WV-S1536LNA security camera cartridge (Paragaph) IP security camera outdoors 1920 x 1080 pixels ceiling/wall

Outdoor IP security camera
CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 1920 x 1080 pixels
Wired Ethernet/LAN
Night view 70 m IR
Optical Zoom 9.3x
Cartridge (shape) ceiling/wall
IP66 IK10
Black, White
2.4 kg

Technical specifications

Supported positioning: Outside
Form factor: Cartridge (shape)
Tilt angle range -100 - 100°
Supported audio formats: AAC-LC,G.711,G.726

Transfer type: Corded

Width: 133 mm

Height: 133 mm

Depth: 383 mm

Weight: 2.4 kg

Factory colour: Black
White

: IP66

Display resolution: 1920 x 1080 Pixel

Playback of: AAC-LC

Material (details): Aluminium
Resin
Polycarbonate (PC)

Type: IP-security camera

10/100/1000 Mbps ports: 1 x

Power consumption (ON): 8.5 W

Sensor type: CMOS

UKCA: not relevant

Operating temperature (T-T): -40 - 60 °C

Ethernet LAN: yes

Minimum illumination: 0.005 Lux

Auto focus: yes

Optical sensor size: 25,4 / 2,8 mm (1 / 2.8")

Number of users: 14 Benutzer

Number of lenses: 1

Text caption overlay: yes

Power consumption (Power over Ethernet (PoE)): 9.1 W

Privacy protection: yes

Number of sensors: 1

Microphone in: yes

Noise reduction: yes

Closest focusing distance: 0.3 m

Web browser: yes

Pan range: -180 - 180°

Detect distance (wide): 23.5 m

Detect distance (tele): 114.8 m

Observe distance (wide): 9.4 m

Observe distance (tele): 45.9 m

Recognize distance (wide): 4.7 m

Recognize distance (tele): 23 m

Identify distance (wide): 2.4 m

Identify distance (tele): 11.5 m

Highlight Compensation (HLC): yes

Dynamic range: 144 dB

Card reader integrated: yes

Frame rate: 60 fps

Web-based management: yes

Video intelligence analytic: yes

Bit rate range: 16 - 128 Kbit/s

Number of Privacy masking areas: 8

Zoom capability: yes

Minimum aperture number: 1.3

Maximum aperture number: 2.5

Night vision: yes

Audio detection: yes

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 10 - 100 %

Number of languages: 9

Optical zoom: 9.3 x

Total megapixels: 2 MP

Back Light Compensation (BLC): yes

Alarm input/output: yes

Number of cameras: 1

Fog proof: yes

Documents & Downloads

Datasheet

Datasheet 3798717 i-PRO i-PRO WV-S1536LNA Bullet Kamera 2 MP, 37 WV-S1536LNA

User & Safety Instructions

User & Safety Instructions 3798717 i-PRO i-PRO WV-S1536LNA Bullet Kamera 2 MP, 37 WV-S1536LNA

Description

Type : IP security camera
Form factor : cartridge (shape)
Maximum resolution : 1920 x 1080 pixels
Supported video formats : H.264, H.265
Auto focus : Yes
Supported audio formats : AAC-LC, G.711, G.726
Ethernet/LAN : Yes
Number of Ethernet LAN connections (RJ-45) : 1
Microphone input : Yes
Ethernet interface type : Fast Ethernet
Integrated Card Reader : Yes
Product Colour : Black, White
Relative humidity in operation : 10 - 100%
Operating temperature: -40 to + 60 °C.
Compatible memory cards : SD, SDHC, SDXC
Power standard: IEEE 802.3af
Weighs 2.4 kg.
Certification: UL (UL62368-1), c-UL (CSA C22.2 No.73-62368), CE, IEC62368-1, FCC (Part15 ClassA), ICES-1 ClassA, EN55022 Class, EN55035
Width 133 mm
Height: 133 mm
Housing material : aluminum, resin, polycarbonate (PC)
Depth: 383 mm

This text is machine translated.
