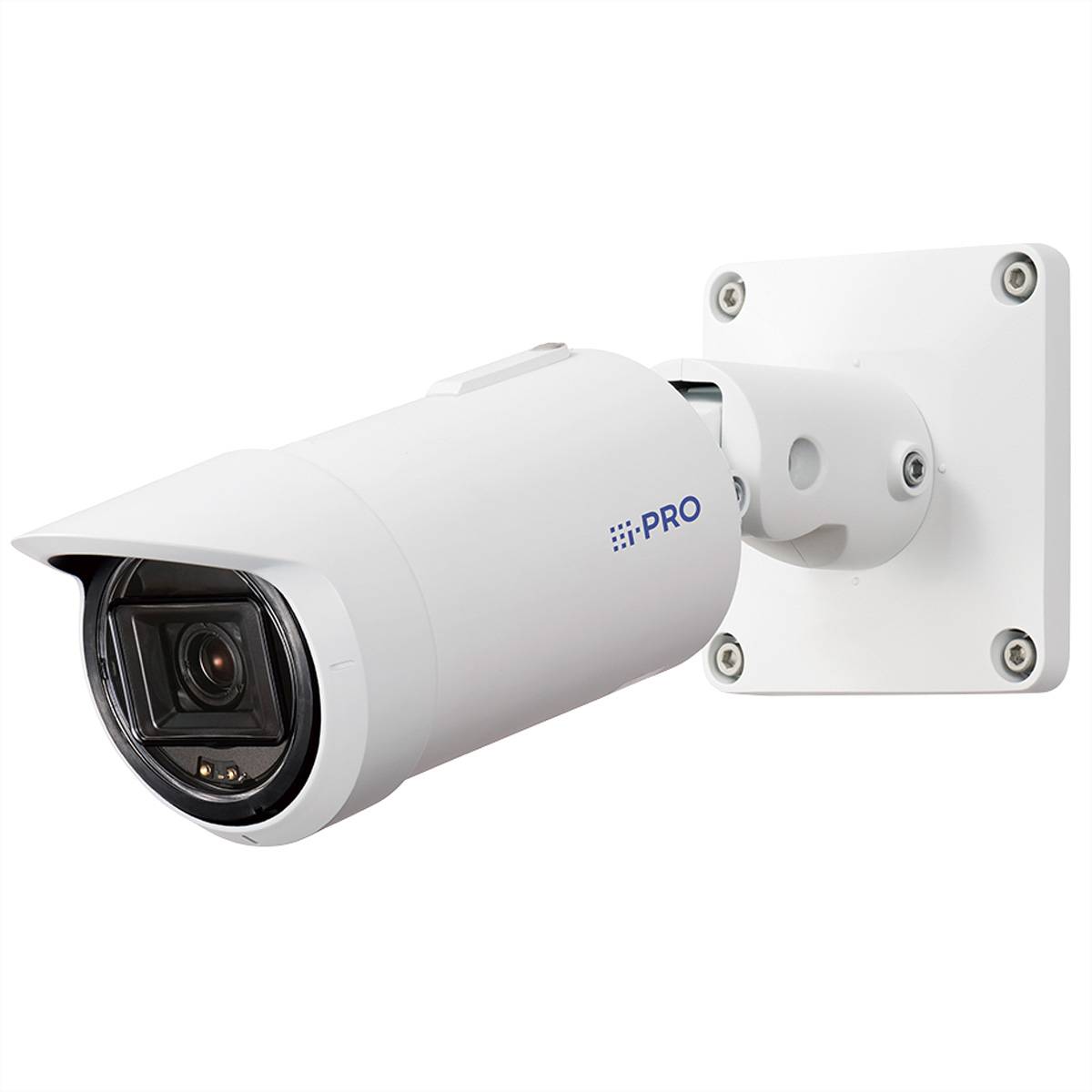

Name: i-PRO i-PRO WV-S1536LTA 2MP Bullet-Netzwerkkam WV-S1536LTA
Brand: i-PRO
SKU: 3798722

i-PRO i-PRO WV-S1536LTA 2MP Bullet-Netzwerkkam WV-S1536LTA-0

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

I-PRO WV-S1536LTA Security Camera Cartridge (Form) Outdoor Ceiling/Wall

Outside
CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP
Wired Ethernet/LAN
Night view 70 m IR
Optical Zoom 2.3x
Cartridge (shape) ceiling/wall
IP66 IK10
White
2.4 kg

Technical specifications

Supported positioning: Outside
Form factor: Cartridge (shape)
Supported audio formats: AAC-LC,G.711,G.726

Transfer type: Corded

Width: 133 mm

Height: 133 mm

Depth: 383 mm

Weight: 2.4 kg

Factory colour: White

: IP66

Bluetooth: No

Playback of: AAC-LC

Material (details): Aluminium
Polycarbonate (PC)
Stainless steel

Rotation: 270°

Sensor type: CMOS

Wi-Fi: No

UKCA: not relevant

Operating temperature (T-T): -40 - 60 °C

Ethernet LAN: yes

Optical sensor size: 25,4 / 2,8 mm (1 / 2.8")

Alarm input channels: 3

Noise reduction: yes

Detect distance (wide): 118.2 m

Detect distance (tele): 291.7 m

Observe distance (wide): 47.3 m

Observe distance (tele): 116.7 m

Recognize distance (wide): 23.6 m

Recognize distance (tele): 58.3 m

Identify distance (wide): 11.8 m

Identify distance (tele): 29.2 m

Dynamic range: 144 dB

Night vision: yes

Video motion detection: yes

Audio detection: yes

Operating relative humidity (H-H): 10 - 100 %

Optical zoom: 2.3 x

Total megapixels: 2 MP

Back Light Compensation (BLC): yes

Documents & Downloads

Datasheet

Datasheet 3798722 i-PRO i-PRO WV-S1536LTA 2MP Bullet-Netzwerkkam WV-S1536LTA

User & Safety Instructions

User & Safety Instructions 3798722 i-PRO i-PRO WV-S1536LTA 2MP Bullet-Netzwerkkam WV-S1536LTA

Description

2MP (1080p) Outdoor Bullet Network Camera The WV-S1536LTA S Series Bullet Network Camera Outdoor Cameras, 2MP(1080p)@60fps, f=9 to 21mm,F1.7 Motorised, 2.3x, H:15 to 36deg.V:9 to 20deg., IR(70m/230ft), H.264/H.264/JPEG, Smart Coding, WDR[144dB] True D/N, Pre-installed AI analysis applications, Noise Classification, HLC, IA, fog detection, ONVIF G,M,S,T, built-in heating, microSDXC, 12VDC/PoE, IK10, IP66/NEMA 4X, i-PRO white model, -40°C to +60°C, -40°F to +140°F, GlobalSign digital certificates, FIPS 140-2 Level3, Easy Kitting

This text is machine translated.
