Name: i-PRO i-PRO WV-S15501-Z1L Bullet AI-Kamera 5 M WV-S15501-Z1L
Brand: i-PRO
SKU: 3798792

i-PRO i-PRO WV-S15501-Z1L Bullet AI-Kamera 5 M WV-S15501-Z1L-0

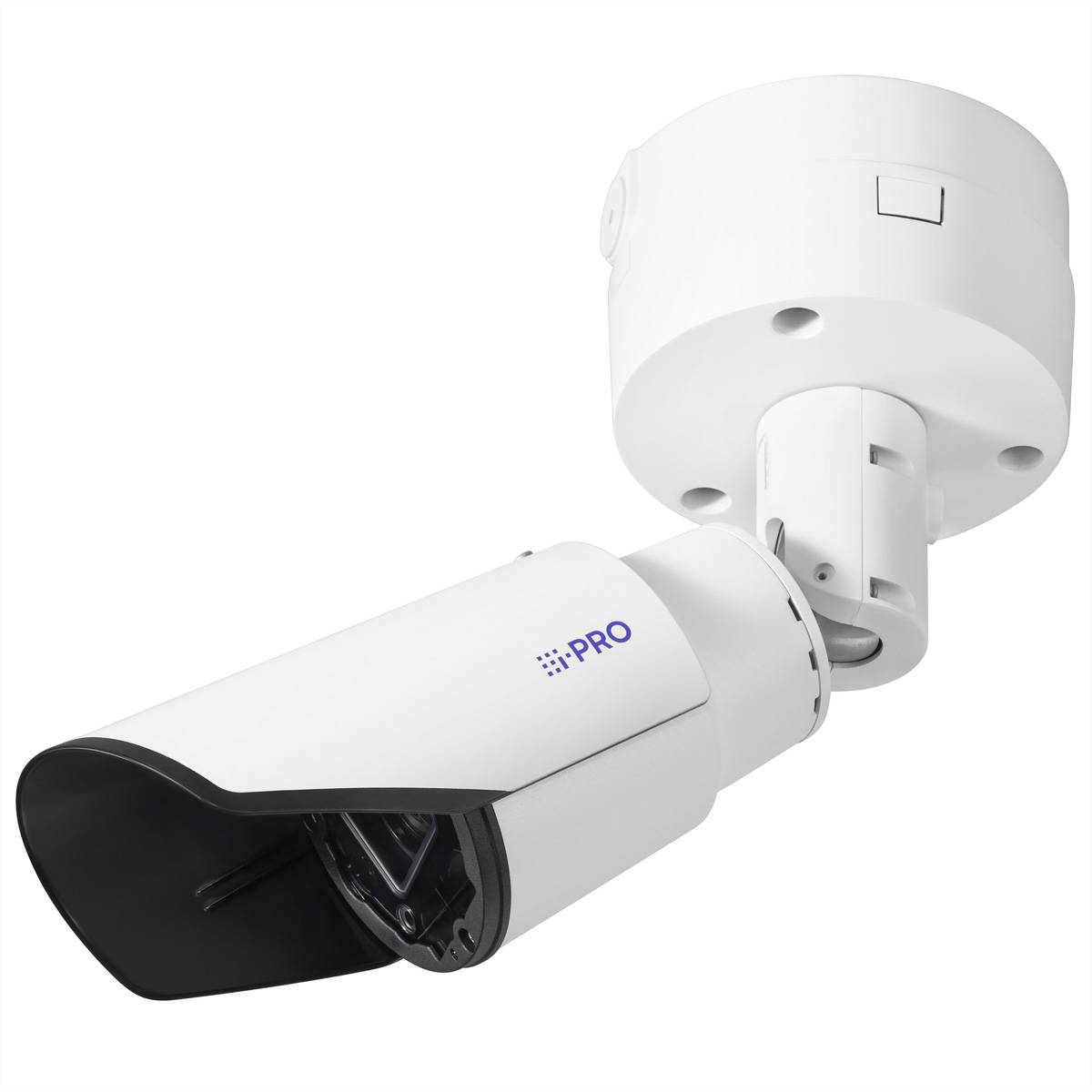

i-PRO i-PRO WV-S15501-Z1L Bullet AI-Kamera 5 M WV-S15501-Z1L-1

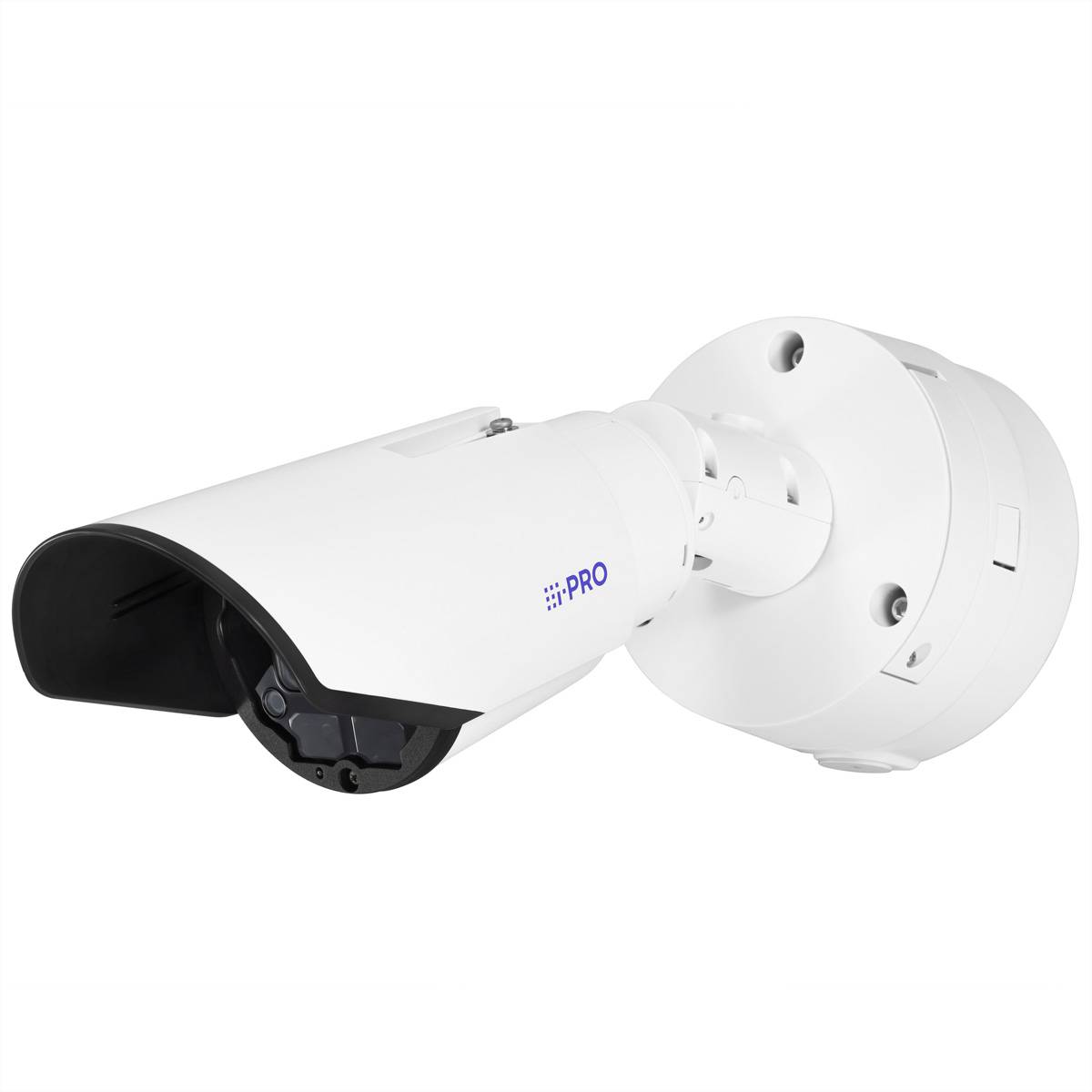

i-PRO i-PRO WV-S15501-Z1L Bullet AI-Kamera 5 M WV-S15501-Z1L-2

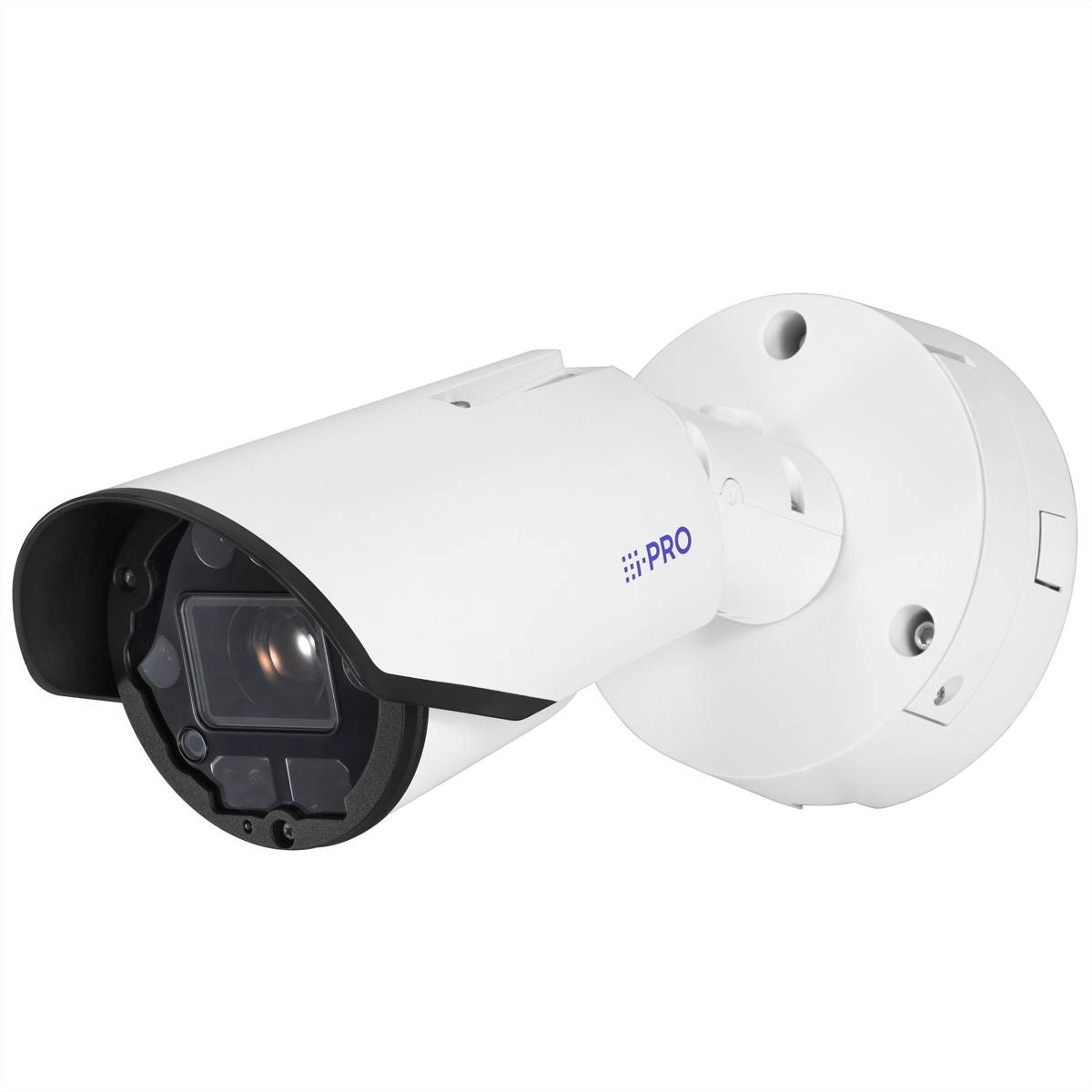

i-PRO i-PRO WV-S15501-Z1L Bullet AI-Kamera 5 M WV-S15501-Z1L-3

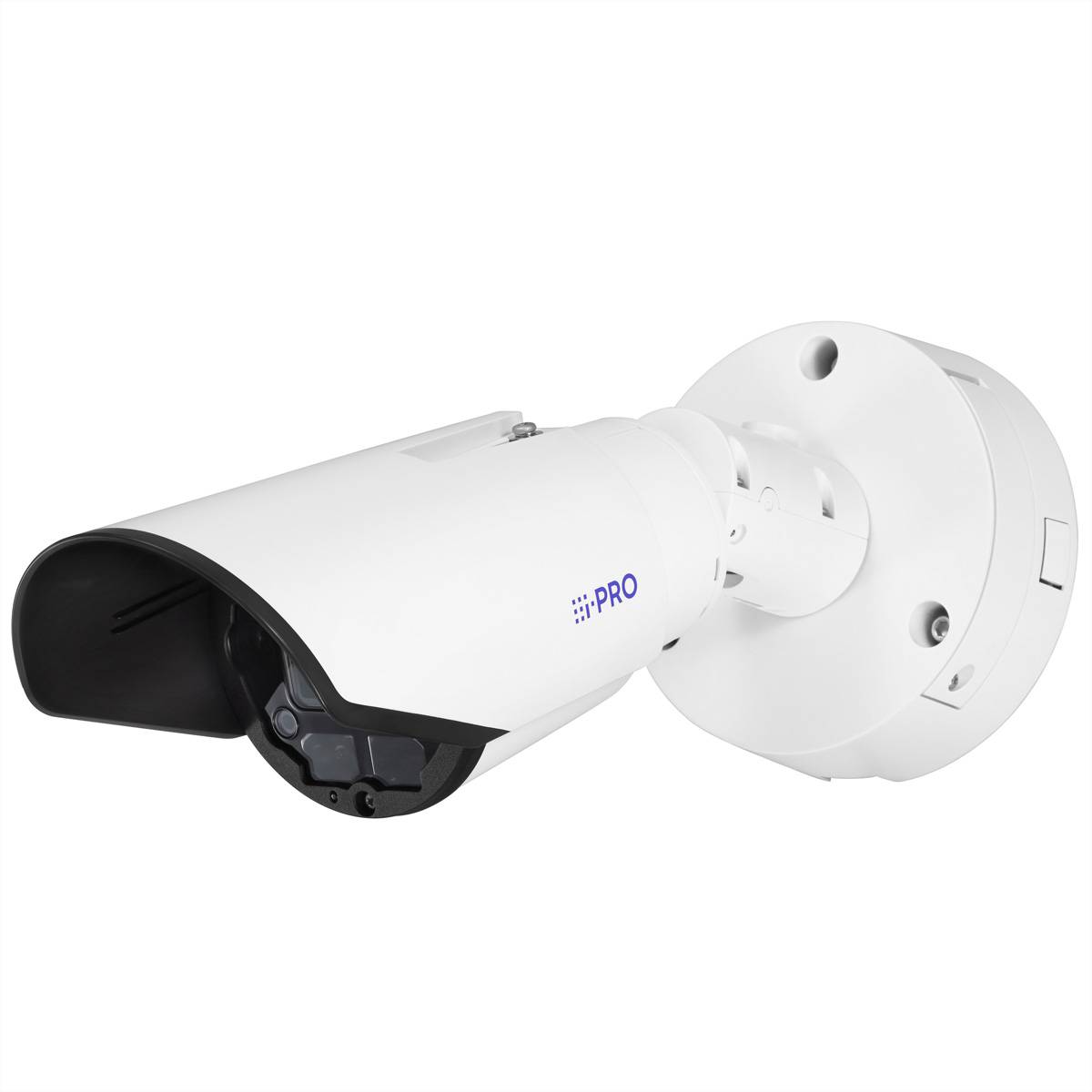

i-PRO i-PRO WV-S15501-Z1L Bullet AI-Kamera 5 M WV-S15501-Z1L-4

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

I-PRO WV-S15501-Z1L Security Camera Cartridge (Form) IP Security Camera Outdoor 3072 x 1728 Pixel Ceiling/Wall

Outdoor IP security camera
CMOS 25.4 / 2.8 mm (1 / 2.8") 5 MP 3072 x 1728 pixels
Wired Ethernet/LAN
Night view 180 m IR
Optical Zoom: 10x Digital Zoom: 160x
Cartridge (shape) corrosion resistant ceiling/wall
IP66, IP67 IK10
White
3.6 kg

Technical specifications

Supported positioning: Outside
Form factor: Cartridge (shape)
International protection class (IP code): IP66, IP67
Tilt angle range 0 - 100°
Maximum resolution 3072 x 1728 pixel
Supported audio formats: AAC-LC,G.711,G.726

Transfer type: Corded

Width: 168 mm

Height: 456 mm

Depth: 168 mm

Weight: 3.6 kg

Factory colour: White

Playback of: AAC-LC

Material (details): Aluminium
Polycarbonate (PC)

Type: IP-security camera

10/100/1000 Mbps ports: 1 x

Power consumption (ON): 32.4 W

Sensor type: CMOS

Safety: FIPS 140-2

UKCA: not relevant

Audio system full duplex: yes

Operating temperature (T-T): -40 - 60 °C

Ethernet LAN: yes

Image stabilizer: yes

Minimum illumination: 0.04 Lux

Optical sensor size: 25,4 / 2,8 mm (1 / 2.8")

Number of users: 14 Benutzer

Noise reduction: yes

Web browser: yes

Pan range: 180 - 180°

Detect distance (wide): 92.4 m

Detect distance (tele): 960.9 m

Observe distance (wide): 36.9 m

Observe distance (tele): 384.4 m

Recognize distance (wide): 18.5 m

Recognize distance (tele): 192.2 m

Identify distance (wide): 9.2 m

Identify distance (tele): 96.1 m

Highlight Compensation (HLC): yes

Dynamic range: 132 dB

Card reader integrated: yes

Frame rate: 30 fps

Zoom capability: yes

Digital zoom: 160 x

Minimum aperture number: 1.6

Maximum aperture number: 3

Night vision: yes

Power consumption: 600 mA

Video motion detection: yes

Audio detection: yes

DC output current: 1.3 A

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 10 - 100 %

Number of languages: 9

Optical zoom: 10 x

Storage temperature (T-T): -30 - 60 °C

Total megapixels: 5 MP

Back Light Compensation (BLC): yes

Built-in HDD: no

Day/night mode: yes

Alarm input/output: yes

Number of cameras: 1

Documents & Downloads

Datasheet

Datasheet 3798792 i-PRO i-PRO WV-S15501-Z1L Bullet AI-Kamera 5 M WV-S15501-Z1L

User & Safety Instructions

User & Safety Instructions 3798792 i-PRO i-PRO WV-S15501-Z1L Bullet AI-Kamera 5 M WV-S15501-Z1L

Description

Bullet network camera 5MP for outdoor use with 10-fold optical Zoom, IR LED, integrated KI-processor 5MP bullet-camera. Up to 3 Edge AI-analysis-Apps. 10-fold optical Zoom. Built-in IR LED IP66, IP67, IK10 CERTIFIED. Built-in FIPS 140-2 level 3 certified Secure Element. NDAA-compliant

This text is machine translated.
