i-PRO i-PRO WV-S66300-Z3LN PTZ Speed-Dome Kame WV-S66300-Z3LN
EAN:
Part number:
Item no:
Highlights & Details

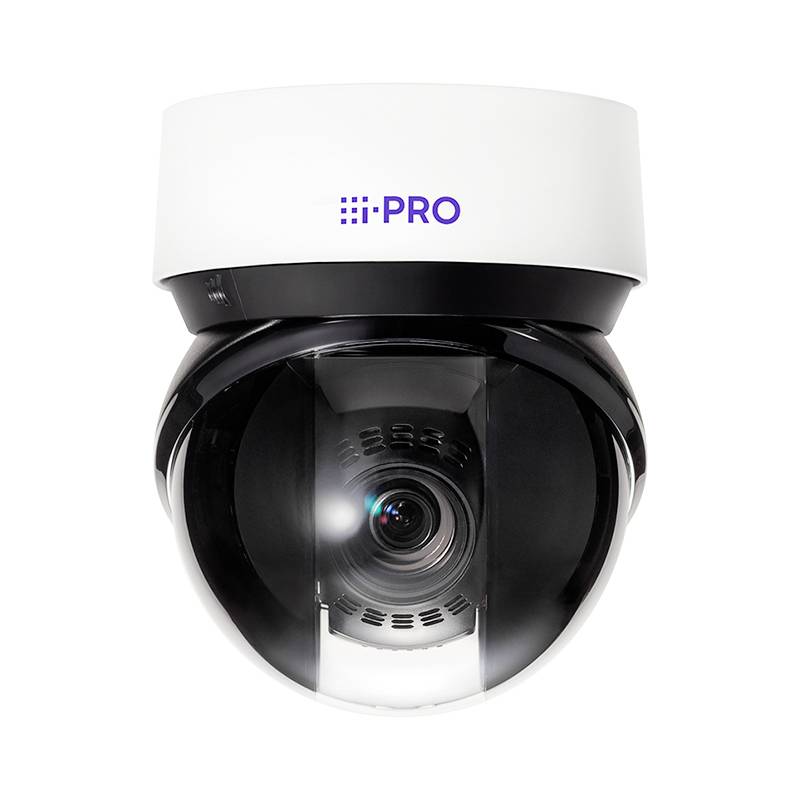

I-PRO WV-S66300-Z3LN security camera dome IP security camera outdoor 2048 x 1536 pixels ceiling
- Outdoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 2048 x 1536 pixels
- Wired Ethernet/LAN
- Night vision 350 m
- Optical Zoom: 32x
- Dome ceiling Manipulation-proof, wind-resistant
- IP66 IK10
- Black
- 3 kg
- This text is machine translated.
Technical specifications
- Supported positioning: Outside
- Form factor: Dome
- Tilt angle range -20 - 90°
- Inclination speed 150 °/second
- Preset slope speed: 500 ° / second
- Webcam - pan speed: 700 ° / second
- Supported audio formats: AAC-LC,G.711,G.726
- Transfer type
Corded
- Width
167 mm
- Height
205 mm
- Depth
167 mm
- Weight
3 kg
- Factory colour
Black
IP66
- Display resolution
2048 x 1536 Pixel
- Playback of
AAC-LC
- Material (details)
Aluminium
Polycarbonate (PC)
Stainless steel
- Type
IP-security camera
- 10/100/1000 Mbps ports
1 x
- Sensor type
CMOS
- Safety
FIPS 140-2
- UKCA
not relevant
- Operating temperature (T-T)
-50 - 60 °C
- Ethernet LAN
yes
- Image stabilizer
yes
- Minimum illumination
0.0003 Lux
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Number of users
14 Benutzer
- Number of lenses
1
- Preset points
yes
- Auto pan mode
yes
- Auto patrol mode
yes
- Privacy masking
yes
- Text caption overlay
yes
- Power consumption (Power over Ethernet (PoE))
45.9 W
- Number of sensors
1
- Microphone in
yes
- Noise reduction
yes
- Closest focusing distance
3 m
- Web browser
yes
- Pan range
0 - 360°
- Detect distance (wide)
60.3 m
- Detect distance (tele)
1833.2 m
- Observe distance (wide)
24.1 m
- Observe distance (tele)
733.3 m
- Recognize distance (wide)
12.1 m
- Recognize distance (tele)
366.6 m
- Identify distance (wide)
6 m
- Identify distance (tele)
183.3 m
- Highlight Compensation (HLC)
yes
- Dynamic range
144 dB
- Number of effective pixels (H x V)
5,57 x 3,13 p
- Card reader integrated
yes
- Frame rate
60 fps
- Camera tilt control
yes
- Bit rate range
16 - 128 Kbit/s
- Digest authentication
yes
- Number of Privacy masking areas
32
- Zoom capability
yes
- Minimum aperture number
1.6
- Maximum aperture number
4.4
- Night vision
yes
- Power consumption
850 mA
- Video motion detection
yes
- Audio detection
yes
- Maximum memory card size
512 GB
- Operating relative humidity (H-H)
10 - 100 %
- Number of languages
9
- Optical zoom
32 x
- PTZ control
yes
- Total megapixels
2 MP
- Back Light Compensation (BLC)
yes
- Auto-tracking
yes
- HTTPS encryption
yes
- Alarm input/output
yes
- Number of cameras
1
- Fog proof
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3798787 i-PRO i-PRO WV-S66300-Z3LN PTZ Speed-Dome Kame WV-S66300-Z3LN
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
