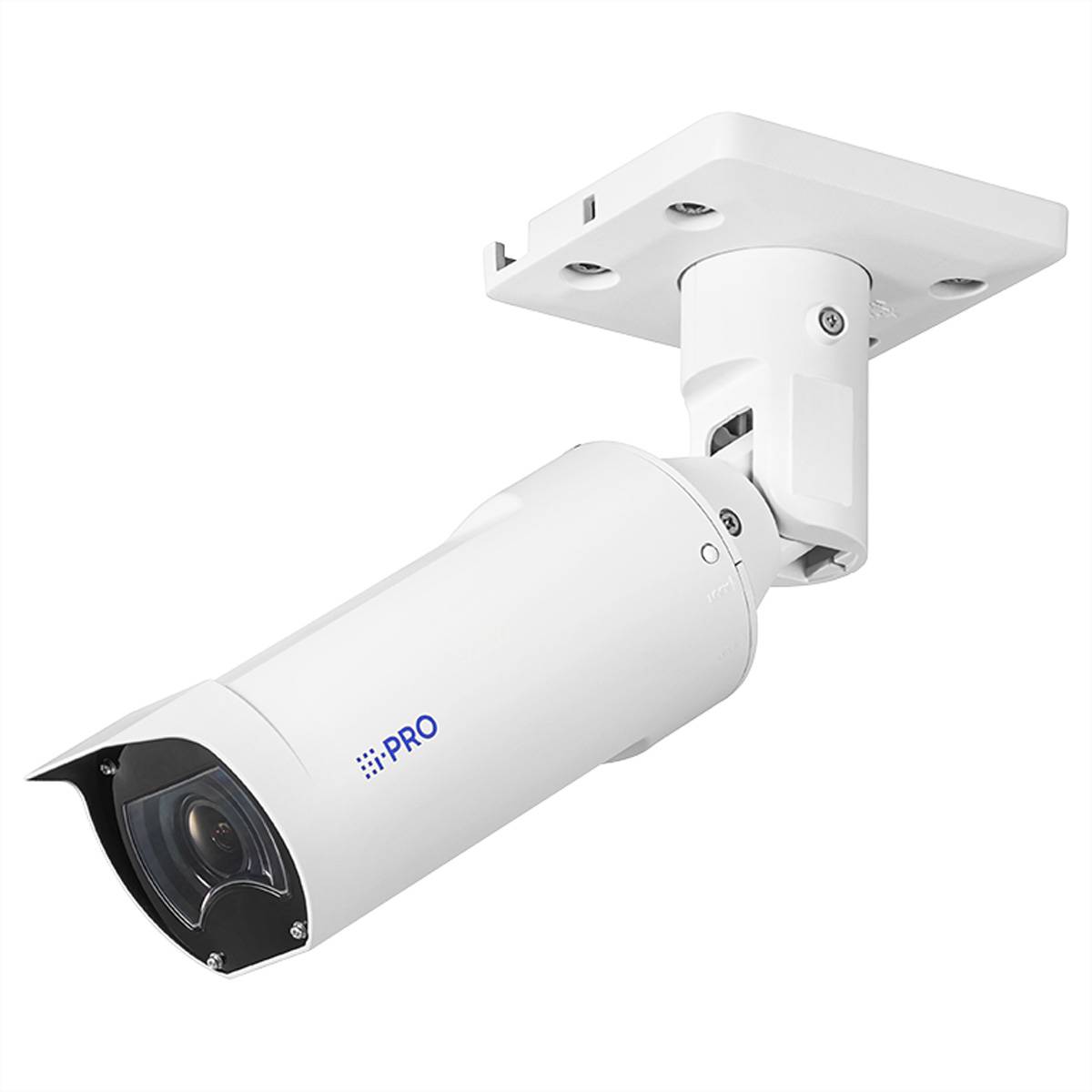

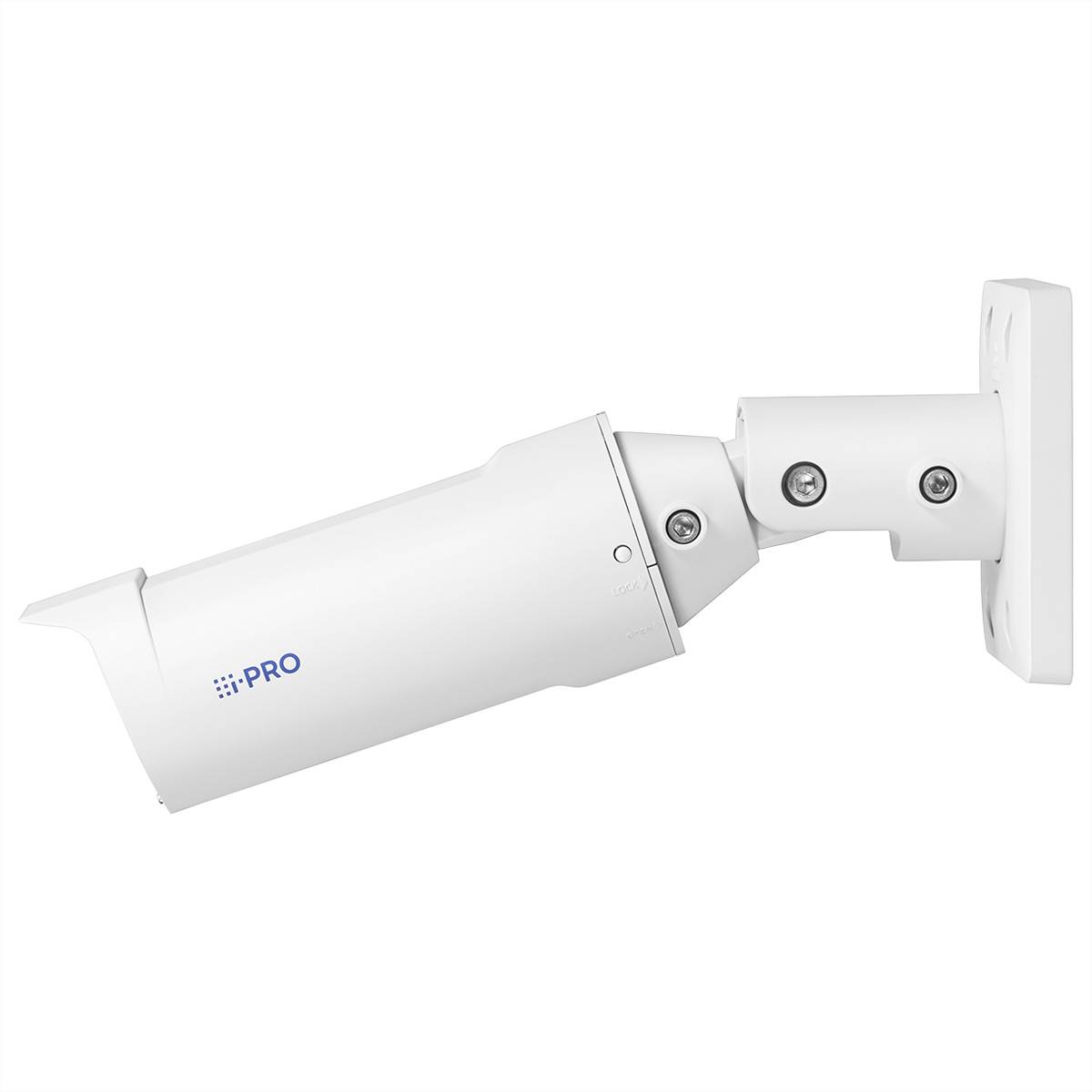

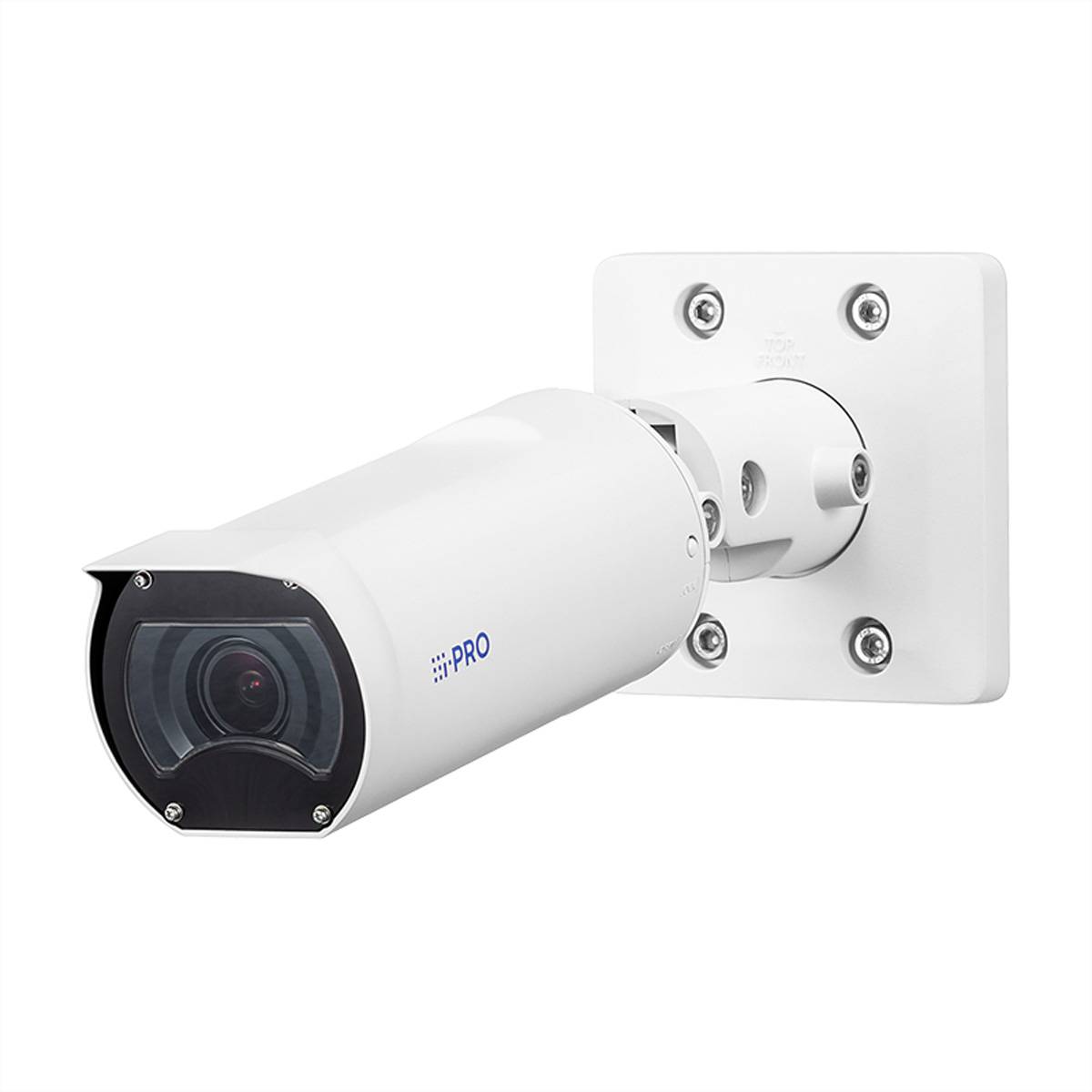

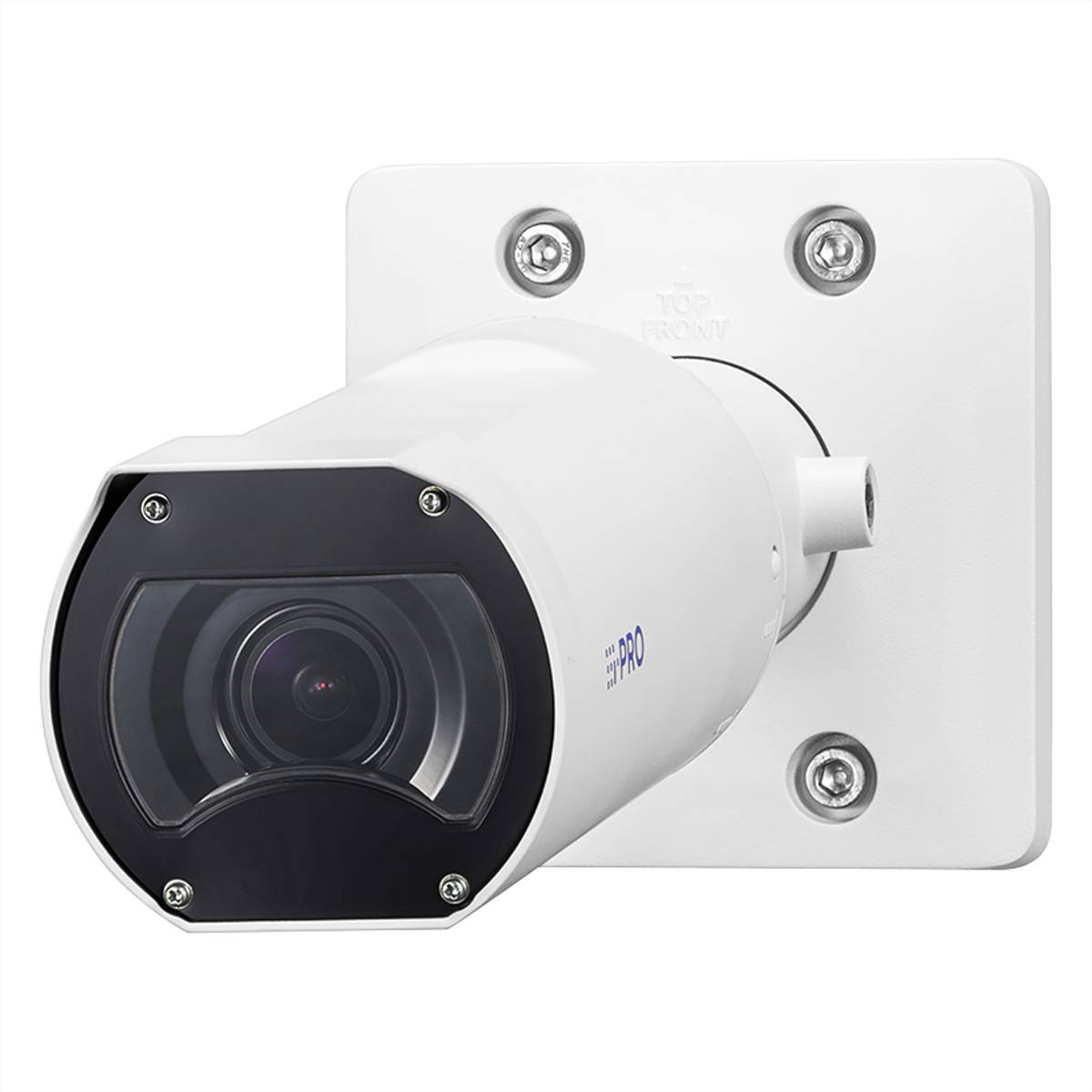

Name: i-PRO i-PRO WV-U15350-V3L Bullet AI-Kamera 2 M WV-U15350-V3L
Brand: i-PRO
SKU: 3798817

i-PRO i-PRO WV-U15350-V3L Bullet AI-Kamera 2 M WV-U15350-V3L-0

i-PRO i-PRO WV-U15350-V3L Bullet AI-Kamera 2 M WV-U15350-V3L-1

i-PRO i-PRO WV-U15350-V3L Bullet AI-Kamera 2 M WV-U15350-V3L-2

i-PRO i-PRO WV-U15350-V3L Bullet AI-Kamera 2 M WV-U15350-V3L-3

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

I-PRO WV-U15350-V3L security camera cartridge (form) IP security camera outdoors 1920 x 1080 pixels ceiling/wall

Outdoor IP security camera
CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 1920 x 1080 pixels
Wired Ethernet/LAN
Night view 42 m IR
Optical Zoom: 3.2x Digital Zoom: 9.6x
Cartridge (form) Ceiling/wall Corrosion resistant, dust proof, water proof, wind resistant
IP66 IK10
White
1 kg

Technical specifications

Supported positioning: Outside
Form factor: Cartridge (shape)
Tilt angle range 0 - 100°
Number of simultaneous live view channels: 14 channels
Data transfer rate 100 Mbit/s.

Transfer type: Corded

Width: 112.5 mm

Height: 112.5 mm

Depth: 298.5 mm

Weight: 1 kg

Factory colour: White

: IP66

Bluetooth: No

Display resolution: 1920 x 1080 Pixel

Material (details): Aluminium
Polycarbonate (PC)
Stainless steel

Type: IP-security camera

Sensor type: CMOS

Safety: FIPS 140-3
HTTPS

Wi-Fi: No

UKCA: not relevant

Operating temperature (T-T): -30 - 50 °C

Ethernet LAN: yes

Storage relative humidity (H-H): 10 - 95 %

Minimum illumination: 0.002 Lux

Optical sensor size: 25,4 / 2,8 mm (1 / 2.8")

Power consumption (Power over Ethernet (PoE)): 9.6 W

Privacy protection: yes

Noise reduction: yes

Web browser: yes

Pan range: -180 - 180°

Power over Ethernet (PoE): yes

Detect distance (wide): 24.9 m

Detect distance (tele): 138.5 m

Observe distance (wide): 10 m

Observe distance (tele): 55.4 m

Recognize distance (wide): 5 m

Recognize distance (tele): 27.7 m

Identify distance (wide): 2.5 m

Identify distance (tele): 13.8 m

Highlight Compensation (HLC): yes

Dynamic range: 120 dB

Card reader integrated: yes

Camera pan control: yes

Camera tilt control: yes

: yes

Zoom capability: yes

Digital zoom: 9.6 x

Maximum aperture number: 1.6

Night vision: yes

Power consumption: 200 mA

Video motion detection: yes

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 10 - 100 %

Optical zoom: 3.2 x

Storage temperature (T-T): -30 - 60 °C

Total megapixels: 2 MP

Back Light Compensation (BLC): yes

Built-in HDD: no

Number of cameras: 1

Fog proof: yes

Documents & Downloads

Datasheet

Datasheet 3798817 i-PRO i-PRO WV-U15350-V3L Bullet AI-Kamera 2 M WV-U15350-V3L

User & Safety Instructions

User & Safety Instructions 3798817 i-PRO i-PRO WV-U15350-V3L Bullet AI-Kamera 2 M WV-U15350-V3L

Description

U-Series Bullet Camera with 2MP Edge-AI Picture Analysis Outdoor Bullet Camera. AI-based image analysis with the AI VMD APP. Audio recording. 3.2-fold optical Zoom. Integrated IR-LED (42 m) IP66, IK10 certified. Integrated FIPS 140-3 Level 3 certified SecureElement (EdgeLock® SE052F NXP® Semiconductors). NDAA-compliant

This text is machine translated.
