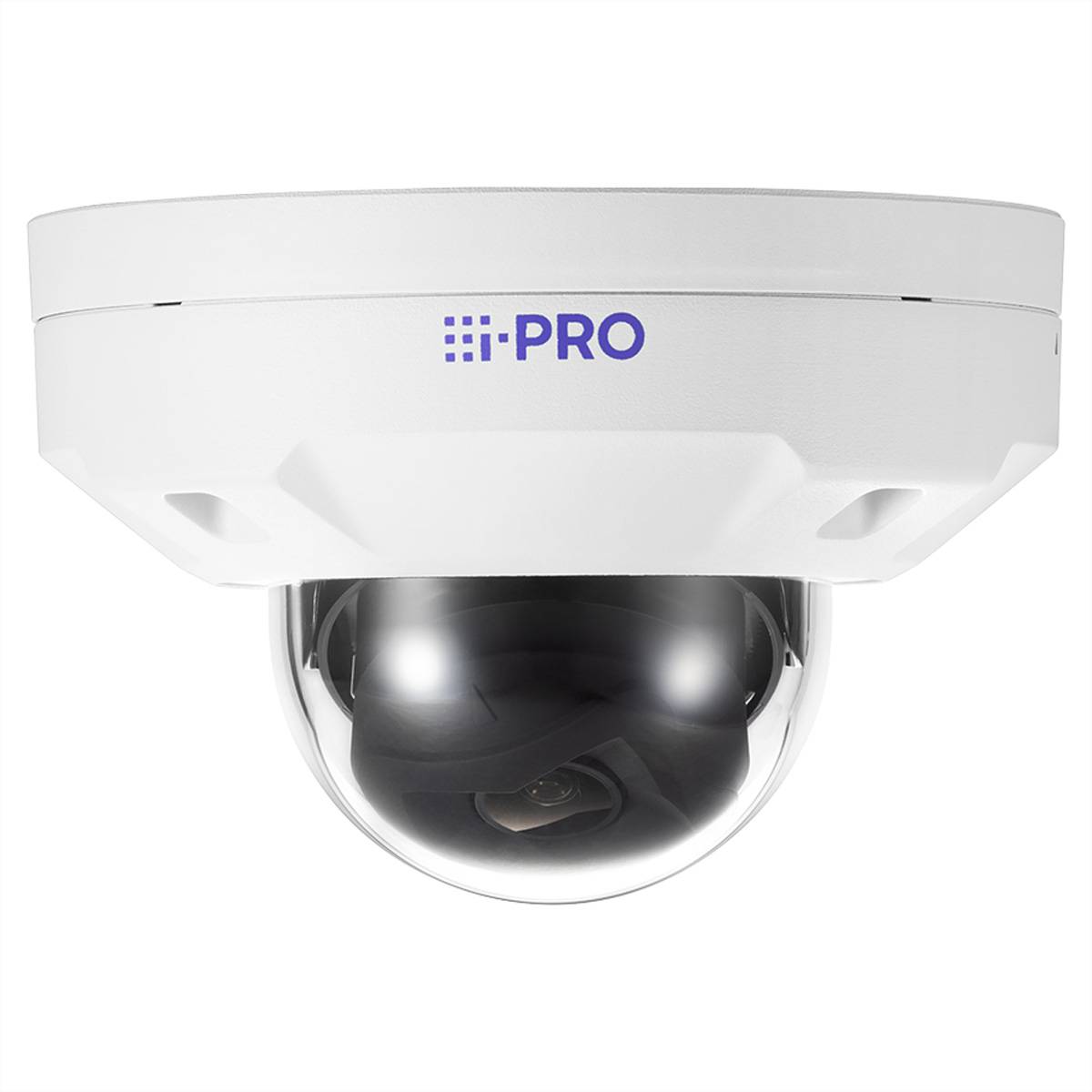

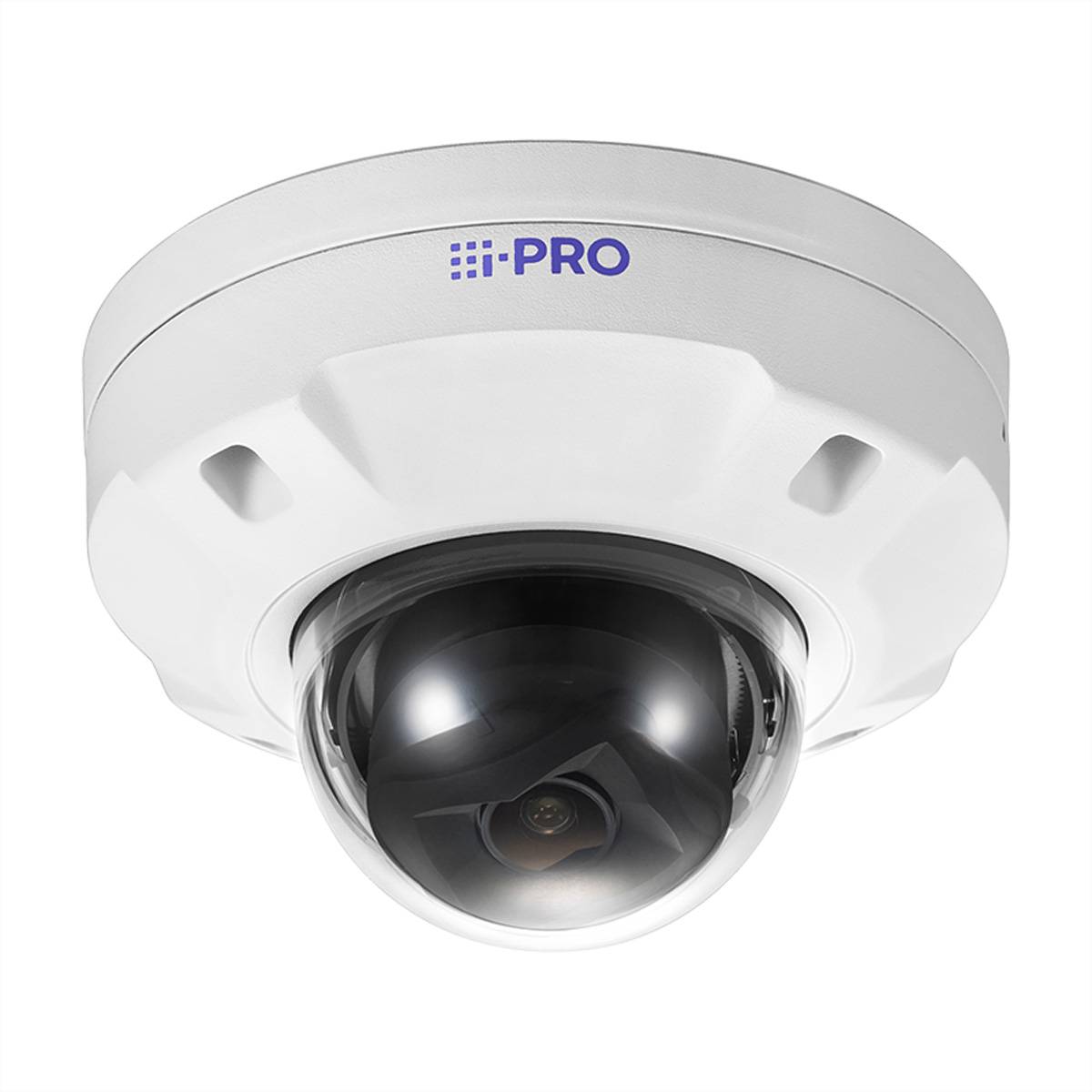

i-PRO i-PRO WV-U25551-V3L Dome AI-Kamera 5 MP, WV-U25551-V3L
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
I-PRO WV-U25551-V3L Security Camera Outdoor IP Security Camera 2560 x 1440 Pixel Ceiling
- Outdoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8") 5 MP 2560 x 1440 pixels
- Wired Ethernet/LAN
- Night view 28 m IR
- Optical Zoom: 3.2x Digital Zoom: 12.8x
- Dome room ceiling corrosion-resistant
- IP66 IK10
- Black, White
- 1 kg
Technical specifications
- Supported positioning: Outside
- Form factor: Dome
- Tilt angle range -30 - 85°
- Supported audio formats: AAC-LC,G.711,G.726
- Transfer type
Corded
- Width
154 mm
- Height
105 mm
- Depth
154 mm
- Weight
1 kg
- Factory colour
Black
White
IP66
- Display resolution
2560 x 1440 Pixel
- Playback of
AAC-LC
- Material (details)
Aluminium
Polycarbonate (PC)
- Type
IP-security camera
- 10/100/1000 Mbps ports
1 x
- Power consumption (ON)
9.6 W
- Sensor type
CMOS
- Safety
FIPS 140-3
- UKCA
not relevant
- Operating temperature (T-T)
-30 - 50 °C
- Ethernet LAN
yes
- Minimum illumination
0.07 Lux
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Number of users
14 Benutzer
- Noise reduction
yes
- Web browser
yes
- Pan range
-105 - 255°
- Detect distance (wide)
43.7 m
- Detect distance (tele)
205.4 m
- Observe distance (wide)
17.5 m
- Observe distance (tele)
82.1 m
- Recognize distance (wide)
8.7 m
- Recognize distance (tele)
41.1 m
- Identify distance (wide)
4.4 m
- Identify distance (tele)
20.5 m
- Highlight Compensation (HLC)
yes
- Dynamic range
120 dB
- Card reader integrated
yes
- Frame rate
30 fps
- Digital zoom
12.8 x
- Minimum aperture number
1.6
- Maximum aperture number
3.2
- Night vision
yes
- Power consumption
200 mA
- Video motion detection
yes
- Maximum memory card size
512 GB
- Operating relative humidity (H-H)
10 - 100 %
- Number of languages
9
- Optical zoom
3.2 x
- Storage temperature (T-T)
-20 - 50 °C
- Total megapixels
5 MP
- Back Light Compensation (BLC)
yes
- Day/night mode
yes
- Alarm input/output
yes
- Number of cameras
1
Documents & Downloads
Datasheet
Datasheet 3798821 i-PRO i-PRO WV-U25551-V3L Dome AI-Kamera 5 MP, WV-U25551-V3L
User & Safety Instructions
User & Safety Instructions 3798821 i-PRO i-PRO WV-U25551-V3L Dome AI-Kamera 5 MP, WV-U25551-V3L
Description
U-Series Dome Camera with Edge-KI image analysis 5MP Vandal-proof Outdoor Dome Camera. AI-based image analysis with the AI VMD APP. Audio recording. 3.2-fold optical Zoom. Integrated IR-LED (28 m) IP66, IK10 certified. Integrated FIPS 140-3 Level 3 certified SecureElement (EdgeLock® SE052F NXP® Semiconductors). NDAA-compliant
This text is machine translated.
Scope of delivery
- I-PRO WV-U25551-V3L Dome AI-camera 5 MP, 28-100°, IR-LED 28m
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
