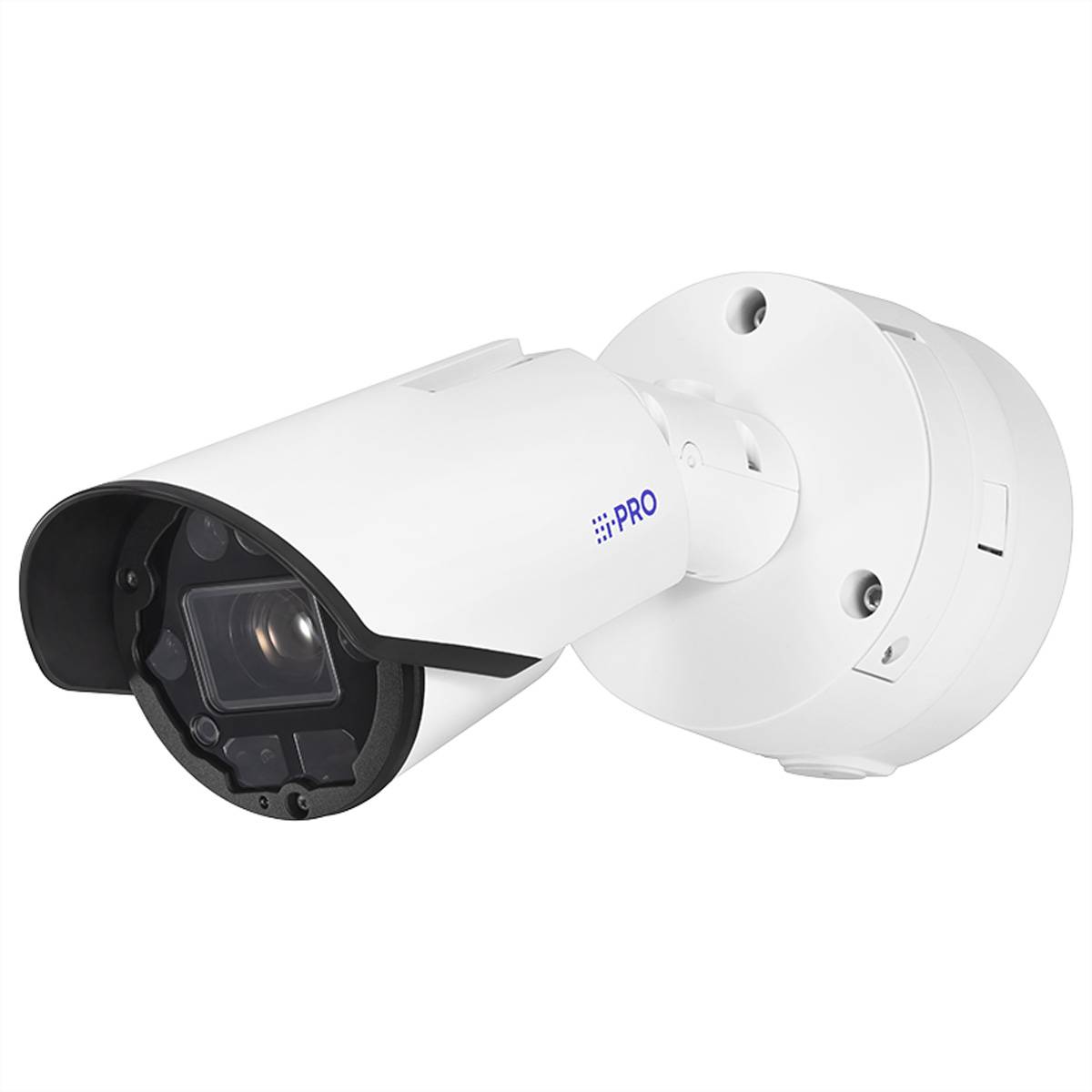

Name: i-PRO i-PRO WV-X15701-Z3LN AI Bullet Kamera 8 WV-X15701-Z3LN
Brand: i-PRO
SKU: 3798795

i-PRO i-PRO WV-X15701-Z3LN AI Bullet Kamera 8 WV-X15701-Z3LN-0

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

I-PRO WV-X15701-Z3LN security camera cartridge (form) IP security camera outdoors 3840 x 2160 pixels ceiling/wall

Outdoor IP security camera
CMOS 25.4 / 2.8 mm (1 / 2.8") 3840 x 2160 pixels
Wired Ethernet/LAN
Night view 140 m IR
Optical Zoom: 30x Digital Zoom: 480x
Cartridge (shape) Top/wall corrosion resistant, dust resistant, shock resistant, vibration resistant, water proof, Wind-resistant
IP66, IP67 IK10
White
3.6 kg

Technical specifications

Supported positioning: Outside
Form factor: Cartridge (shape)
International protection class (IP code): IP66, IP67
Tilt angle range 0 - 100°
Supported audio formats: AAC-LC,ADPCM,G.711,G.726
Interface RJ-45
Data transfer rate 100 Mbit/s.
Number of concurrent users (local + network): 14 users

Transfer type: Corded

Depth: 456 mm

Weight: 3.6 kg

Factory colour: White

Bluetooth: No

(Ø): 16.8 cm

Display resolution: 3840 x 2160 Pixel

Playback of: AAC-LC

Material (details): Aluminium
Polycarbonate (PC)

Microphone: No

Type: IP-security camera

Power consumption (ON): 15.6 W

Sensor type: CMOS

Safety: FIPS 140-2
HTTPS

Wi-Fi: No

UKCA: not relevant

Operating temperature (T-T): -40 - 60 °C

Ethernet LAN: yes

Storage relative humidity (H-H): 10 - 95 %

Image stabilizer: yes

Minimum illumination: 0.006 Lux

Optical sensor size: 25,4 / 2,8 mm (1 / 2.8")

Alarm input channels: 3

Preset points: yes

Power consumption (Power over Ethernet (PoE)): 32.4 W

Privacy protection: yes

Noise reduction: yes

Web browser: yes

Pan range: -180 - 180°

Detect distance (wide): 127.1 m

Detect distance (tele): 3519.7 m

Observe distance (wide): 50.8 m

Observe distance (tele): 1407.9 m

Recognize distance (wide): 25.4 m

Recognize distance (tele): 703.9 m

Identify distance (wide): 12.7 m

Identify distance (tele): 352 m

Highlight Compensation (HLC): yes

Dynamic range: 132 dB

Card reader integrated: yes

Camera pan control: yes

Camera tilt control: yes

: yes

Number of Privacy masking areas: 8

Zoom capability: yes

Digital zoom: 480 x

Maximum aperture number: 1.8

Night vision: yes

Video motion detection: yes

Audio detection: yes

DC output current: 1.3 A

Maximum memory card size: 512 GB

Operating relative humidity (H-H): 10 - 100 %

Optical zoom: 30 x

Storage temperature (T-T): -30 - 60 °C

Back Light Compensation (BLC): yes

Built-in HDD: no

Video recording: yes

Alarm input/output: yes

Number of cameras: 1

Fog proof: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3798795 i-PRO i-PRO WV-X15701-Z3LN AI Bullet Kamera 8 WV-X15701-Z3LN

Description

4K AI camera (30x Zoom), bullet network camera, suitable for outdoor use The WV-X15701-Z3LN, outdoor, BOX, 8MP(4K)@60fps, Tamron, 30x, H:2.5 to 62deg.V:1.4 to 37deg., IR, H.265/H.264/JPEG, WDR[132dB], Preinstalled AI analysis applications, 9 AI slots, ONVIF G, M, S, T, microSDXC, 12VDC/PoE+/PoE++, IK10, IP66/IP67/NEMA 4X, ClearSight coating, white (i-PRO), -40 °C to +60 °C, FIPS 140-2 level 3

This text is machine translated.
