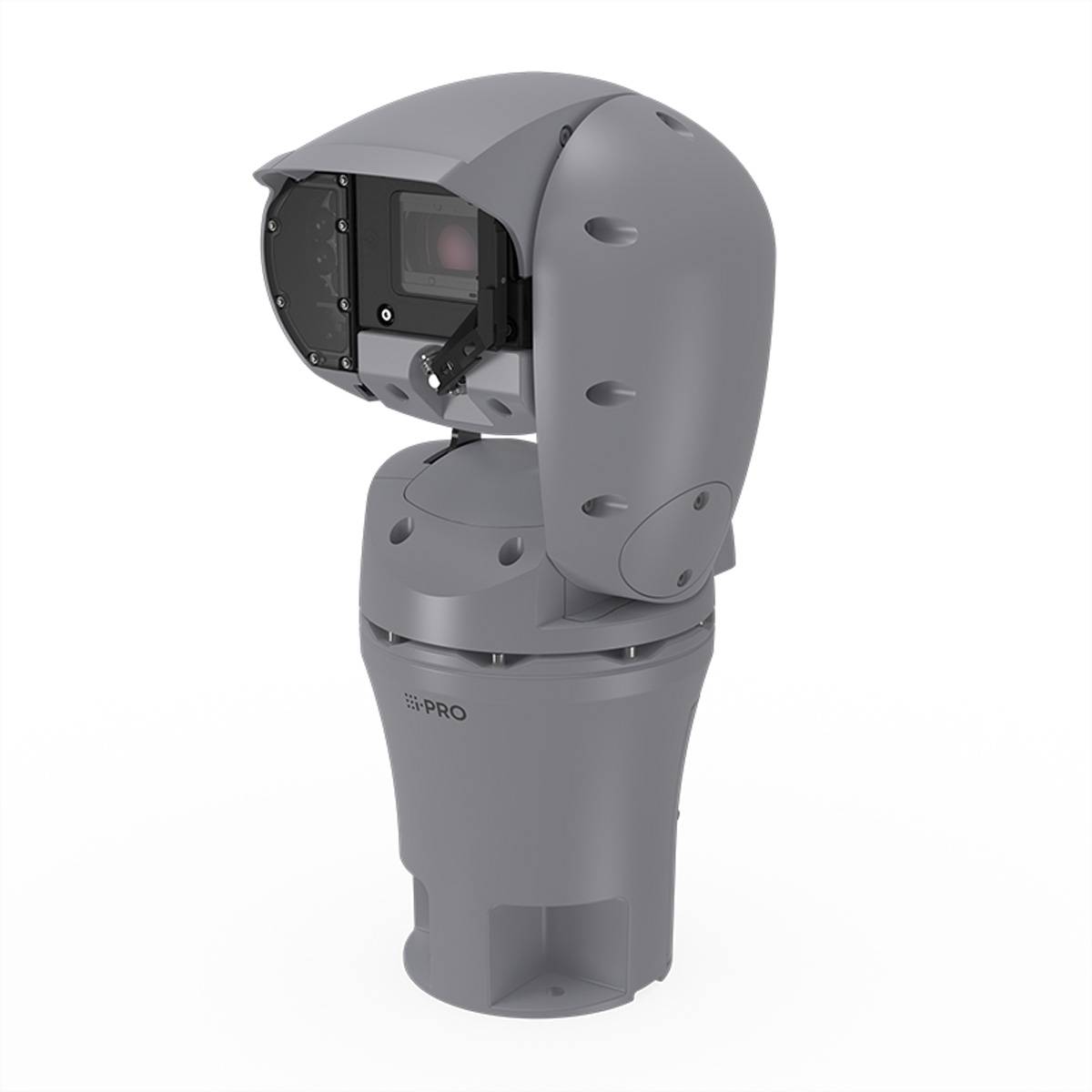

Name: i-PRO I-PRO WV-X67710-Z3L3 OUTDOOR VANDAL PTZ, WV-X67710-Z3L3
Brand: i-PRO
SKU: 3798796

i-PRO I-PRO WV-X67710-Z3L3 OUTDOOR VANDAL PTZ, WV-X67710-Z3L3-0

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

I-PRO WV-X67710-Z3L3 security camera Tower IP security camera outdoors 3840 x 2160 pixels

Outdoor IP security camera
CMOS 25.4 / 2.8 mm (1 / 2.8") 3840 x 2160 pixels
Wired Ethernet/LAN
Night view 350 m IR
Optical Zoom: 30x Digital Zoom: 480x
Tower dust-resistant, shock-resistant, vibration-resistant, water-proof, wind-resistant
IP66, IP68 IK10 WEATHER PROOF
Grey
8.1 kg

Technical specifications

Supported positioning: Outside
International protection class (IP code): IP66, IP68
Tilt angle range -90 - 90°
Preset slope speed: 200 ° / second
Preset Shell Speed: 200 °/second
Supported audio formats: AAC-LC,ADPCM,G.711,G.726
Interface RJ-45
Data transfer rate 100 Mbit/s.
Number of concurrent users (local + network): 14 users

Transfer type: Corded

Width: 226 mm

Height: 450 mm

Depth: 266 mm

Weight: 8.1 kg

Factory colour: Grey

Bluetooth: No

Display resolution: 3840 x 2160 Pixel

Playback of: AAC-LC

Case type: Tower

Material (details): Resin

Type: IP-security camera

Rotation: 360°

Power consumption (ON): 78.7 W

Power supply (details): 24 V

Sensor type: CMOS

Safety: FIPS 140-2
HTTPS

Wi-Fi: No

UKCA: not relevant

Operating temperature (T-T): -50 - 65 °C

Weatherproof: yes

Ethernet LAN: yes

Storage relative humidity (H-H): 10 - 95 %

Image stabilizer: yes

Minimum illumination: 0.006 Lux

Optical sensor size: 25,4 / 2,8 mm (1 / 2.8")

Preset points: yes

Auto pan mode: yes

Auto patrol mode: yes

Power consumption (Power over Ethernet (PoE)): 70.2 W

Privacy protection: yes

Noise reduction: yes

Web browser: yes

Pan range: 0 - 360°

Detect distance (wide): 127.8 m

Detect distance (tele): 3519.7 m

Observe distance (wide): 51.1 m

Observe distance (tele): 1407.9 m

Recognize distance (wide): 25.6 m

Recognize distance (tele): 703.9 m

Identify distance (wide): 12.8 m

Identify distance (tele): 352 m

Highlight Compensation (HLC): yes

Dynamic range: 132 dB

Card reader integrated: no

Camera pan control: yes

Camera tilt control: yes

: yes

Digest authentication: yes

Pan manual speed: 0,065 - 100 °/Sekunde

Tilt manual speed: 0,065 - 100 °/Sekunde

Number of Privacy masking areas: 32

Zoom capability: yes

Digital zoom: 480 x

Maximum aperture number: 1.8

Night vision: yes

Power consumption: 4900 mA

Video motion detection: yes

Audio detection: yes

Operating relative humidity (H-H): 10 - 100 %

Optical zoom: 30 x

PTZ control: yes

Storage temperature (T-T): -30 - 65 °C

Back Light Compensation (BLC): yes

Auto-tracking: yes

Alarm input/output: yes

Number of cameras: 1

Fog proof: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3798796 i-PRO I-PRO WV-X67710-Z3L3 OUTDOOR VANDAL PTZ, WV-X67710-Z3L3

Description

4K AI network camera, PTZ (pan/tilt/Zoom) network camera, suitable for outdoor use The WV-X67710-Z3L3 X-series outdoor PTZ network cameras, 8MP(4K)@30fps, f=4.5 to 135mm, F1.8 motorized, 30x, H:2.5 to 62deg.V:1.4 to 37deg., IR, H.265/H.264/JPEG, WDR[132dB], Preinstalled AI analytics applications, sound classification, HLC, ONVIF G, M, S, T, POE+, IK10, IP66/IP68/NEMA 4X, ISO14993 (Heavy Salt Damage Resistance), Gray model, -50 °C to +65 °C, FIPS 140-2 Level3, Easy Kitting

This text is machine translated.
