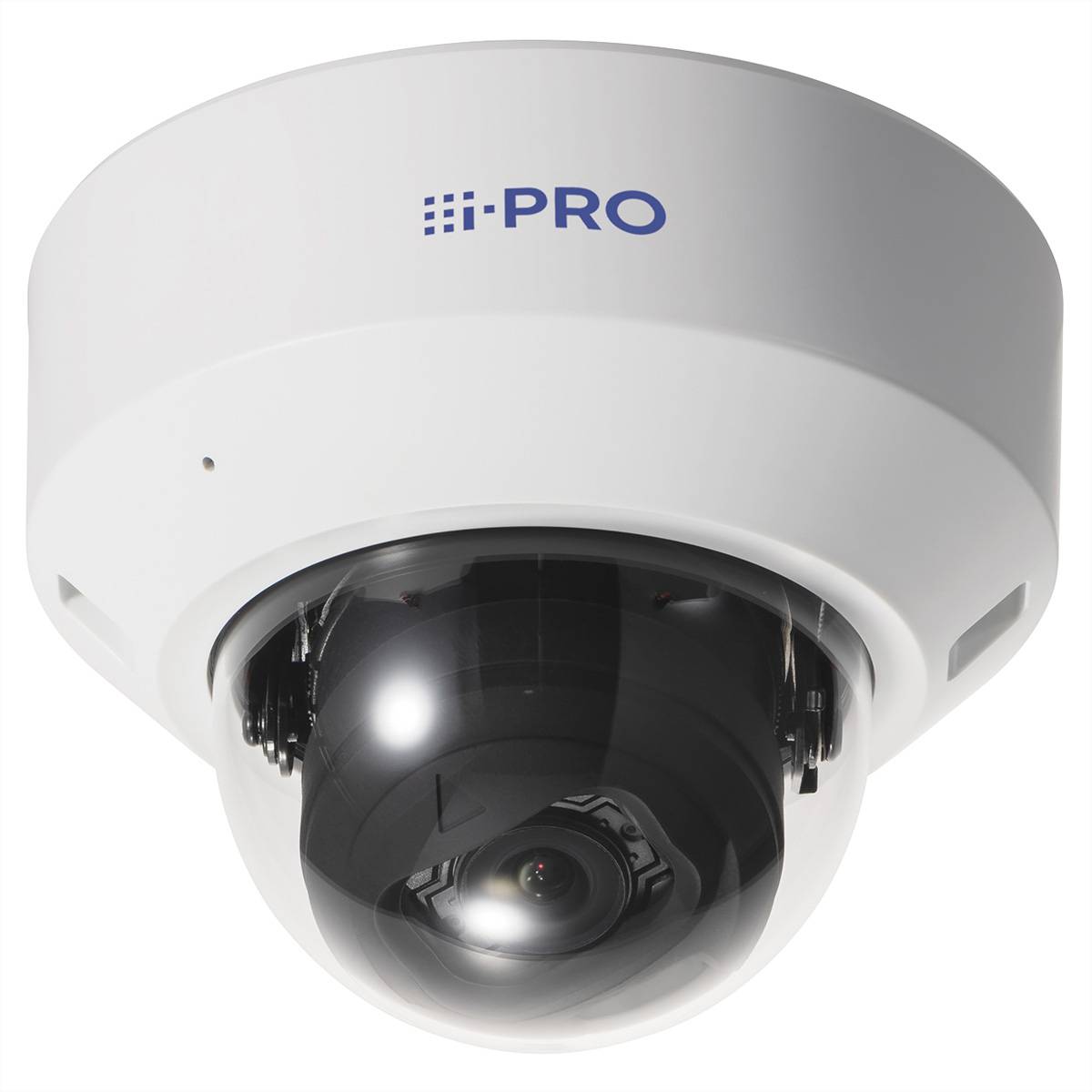

i-PRO Netzwerkkamera WV-S2136A
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
I-PRO WV-S2136A security camera dome IP security camera indoors 2048 x 1536 pixels
- Indoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 2048 x 1536 pixels
- Wired Ethernet/LAN
- Optical Zoom 9.3x
- Dome
- Black, White
- 470 g
Technical specifications
- Supported positioning: Indoors
- Form factor: Dome
- Tilt angle range -30 - 85°
- Supported audio formats: AAC-LC,G.711,G.726
- Transfer type
Corded
- Width
129.5 mm
- Height
101 mm
- Depth
129.5 mm
- Weight
470 g
- Factory colour
Black
White
- Camera type
Dome camera
- Display resolution
2048 x 1536 Pixel
- Playback of
AAC-LC
- Max. viewing angle hor.
115°
- Enclosure material
Acrylic
- CCTV features
PoE IEEE 802.3af
- Material (details)
Acrylic
Acrylonitrile butadiene styrene (ABS)
- Type
IP-security camera
- Rotation
360°
- 10/100/1000 Mbps ports
1 x
- Used at
Internal
- Power consumption (ON)
4.9 W
- Power supply (details)
12-48 V
- Sensor type
CMOS
- Power supply
PoE (Power over Ethernet)
- UKCA
not relevant
- Operating temperature (T-T)
-10 - 50 °C
- Ethernet LAN
yes
- Minimum illumination
0.006 Lux
- Auto focus
yes
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Number of users
14 Benutzer
- Terminal block port
yes
- Number of lenses
1
- Privacy masking
yes
- Text caption overlay
yes
- Power consumption (Power over Ethernet (PoE))
5.3 W
- Number of sensors
1
- Microphone in
yes
- Noise reduction
yes
- Closest focusing distance
0.3 m
- Web browser
yes
- Composite video out
1
- Detect distance (wide)
24.5 m
- Detect distance (tele)
118.2 m
- Observe distance (wide)
9.8 m
- Observe distance (tele)
47.3 m
- Recognize distance (wide)
4.9 m
- Recognize distance (tele)
23.6 m
- Identify distance (wide)
2.4 m
- Identify distance (tele)
11.8 m
- Highlight Compensation (HLC)
yes
- Dynamic range
144 dB
- Number of effective pixels (H x V)
5,57 x 3,13 p
- Card reader integrated
yes
- Frame rate
60 fps
- Camera tilt control
yes
- Video intelligence analytic
yes
- Bit rate range
16 - 128 Kbit/s
- Number of Privacy masking areas
8
- Zoom capability
yes
- Minimum aperture number
1.3
- Maximum aperture number
2.5
- Night vision
no
- Video motion detection
yes
- Audio detection
yes
- Maximum memory card size
512 GB
- Operating relative humidity (H-H)
10 - 90 %
- Number of languages
9
- Optical zoom
9.3 x
- Total megapixels
2 MP
- Back Light Compensation (BLC)
yes
- HTTPS encryption
yes
- Alarm input/output
yes
- Number of cameras
1
- Fog proof
yes
Documents & Downloads
Datasheet
Datasheet 3798724 i-PRO Netzwerkkamera WV-S2136A
User & Safety Instructions
User & Safety Instructions 3798724 i-PRO Netzwerkkamera WV-S2136A
Description
I-PRO WV-S2136A. Type: IP-security camera, Supported positioning: Inside, transmission technology: Cabled. Product color: Black, white, form factor: Dome, housing material: Acrylic, acrylonitrile-butadiene-styrene (ABS). Minimum lighting: 0.006 Lux, rotation angle: 360°, viewing angle (horizontal): 36 - 115°. Sensor type: CMOS, size of image sensor: 25.4 / 2.8 mm (1 / 2.8 "), number of effective pixels (H x V): 5.57 x 3.13 pixels. Optical Zoom: 9.3x, Focus: With motor/by hand, Focal length range: 2.9 - 9 mm
This text is machine translated.
This text is machine translated.
Scope of delivery
- I-PRO WV-S2136A 2MP Indoor Dome Network Camera with AI engine
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
