i-PRO WJ-NU101KG i-PRO WJ-NU101KG NVR Netzwerk-Videorekor Network video recorder
EAN:
Part number:
Item no:
Highlights & Details

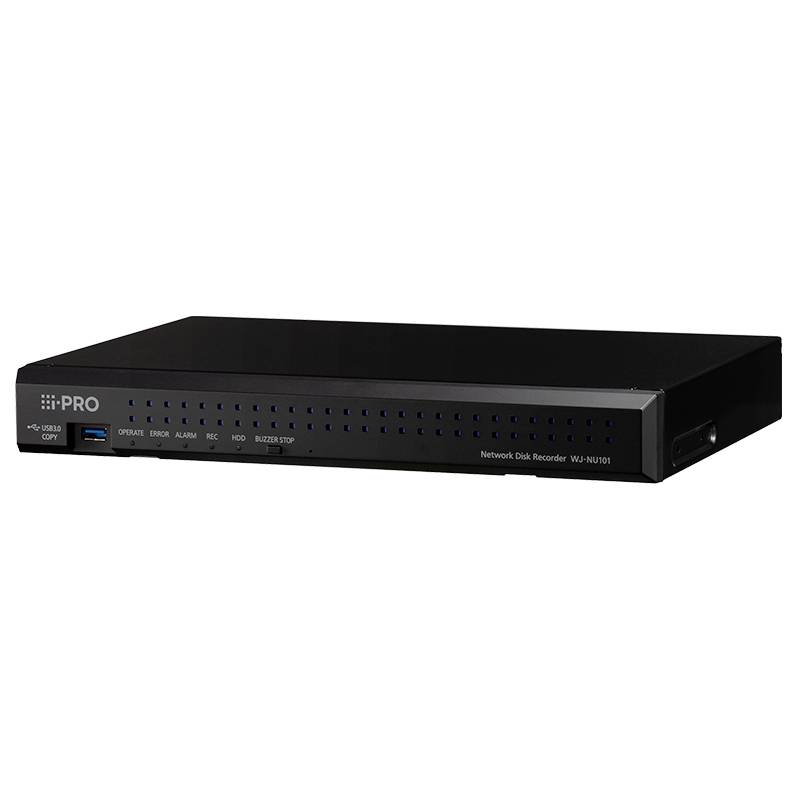

I-PRO WJ-NU101KG network video recorder (NVR)
- Video input channels: 4 channels
- 3840 x 2160 pixels
- Number of HDDs installed: 1 Max. Storage capacity 20 TB
- No. of Ethernet LAN ports (RJ-45): 5 Power over Ethernet (PoE)
- Built-in 2.8 GHz processor
- This text is machine translated.
Technical specifications
- Video input channels: 4 channels
- Supported audio formats: AAC-LC,G.711,MP4
- Maximum frame rate 60 fps
- Product type
Network video recorder
- Signal standard
IP
- Factory colour
Black
- Width
340 mm
- Height
44 mm
- Depth
230 mm
- Weight
2.1 kg
- Dim
(W x H x D) 340 x 44 x 230 mm
- Display resolution
3840 x 2160 Pixel
- Playback of
AAC-LC
- Format
3.5 inch
- Processor cores (No.)
4 x
- No. of USB A 2.0 ports
1 x
- Output voltage
54 V
- 10/100/1000 Mbps ports
5 x
- Power consumption (ON)
90 W
- CPU speed
2.8 GHz
- UKCA
yes
- Power over Ethernet (PoE) ports quantity
4
- Operating temperature (T-T)
0 - 45 °C
- Total Power over Ethernet (PoE) budget
50 W
- Number of simultaneous viewers
16
- Alarm input channels
4
- Alarm output channels
1
- Power over Ethernet (PoE) power per port
30 W
- Power over Ethernet (PoE)
yes
- Number of HDDs installed
1
- Reset button
yes
- Maximum storage capacity
20 TB
- Operating relative humidity (H-H)
5 - 90 %
- Built-in processor
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3798698 i-PRO WJ-NU101KG i-PRO WJ-NU101KG NVR Netzwerk-Videorekor Network video recorder
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
