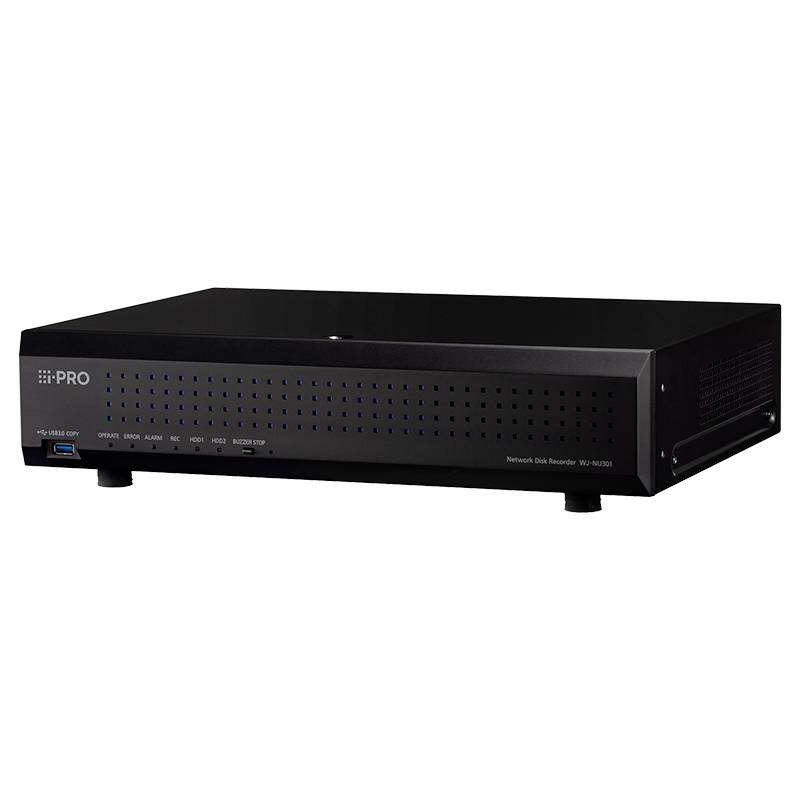

i-PRO WJ-NU301KG i-PRO WJ-NU301 NVR Netzwerk-Videorekorde Network video recorder
EAN:
Part number:
Item no:
Highlights & Details
I-PRO 16-Channel. Network Recorder NVR with a build-in PoE+ switch for 16ch.
- Video input channels: 16 channels
- 3840 x 2160 pixels
- Number of HDDs installed: 2 Max. Storage capacity 40 TB HDD Interface SATA
- No. of Ethernet LAN ports (RJ-45): 17 Power over Ethernet (PoE)
- Built-in 2.8 GHz processor
- This text is machine translated.
Technical specifications
- Video input channels: 16 channels
- Supported audio formats: AAC-LC,G.711,MP4
- Maximum frame rate 60 fps
- Product type
Network video recorder
- Signal standard
IP
- Factory colour
Black
- Width
420 mm
- Height
88 mm
- Depth
300 mm
- Weight
4.7 kg
- Dim
(W x H x D) 420 x 88 x 300 mm
- Display resolution
3840 x 2160 Pixel
- Playback of
AAC-LC
- Format
3.5 inch
- Processor cores (No.)
4 x
- No. of USB A 2.0 ports
1 x
- 10/100/1000 Mbps ports
17 x
- Power consumption (ON)
340 W
- CPU speed
2.8 GHz
- Power supply (details)
100 - 240 V
- UKCA
yes
- Power over Ethernet (PoE) ports quantity
16
- Operating temperature (T-T)
0 - 45 °C
- Total Power over Ethernet (PoE) budget
233 W
- Number of simultaneous viewers
16
- Alarm input channels
4
- Alarm output channels
1
- Power over Ethernet (PoE) power per port
30 W
- Power over Ethernet (PoE)
yes
- Number of HDDs installed
2
- Reset button
yes
- Maximum storage capacity
40 TB
- Operating relative humidity (H-H)
5 - 90 %
- RAID support
yes
- Built-in processor
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3798701 i-PRO WJ-NU301KG i-PRO WJ-NU301 NVR Netzwerk-Videorekorde Network video recorder
