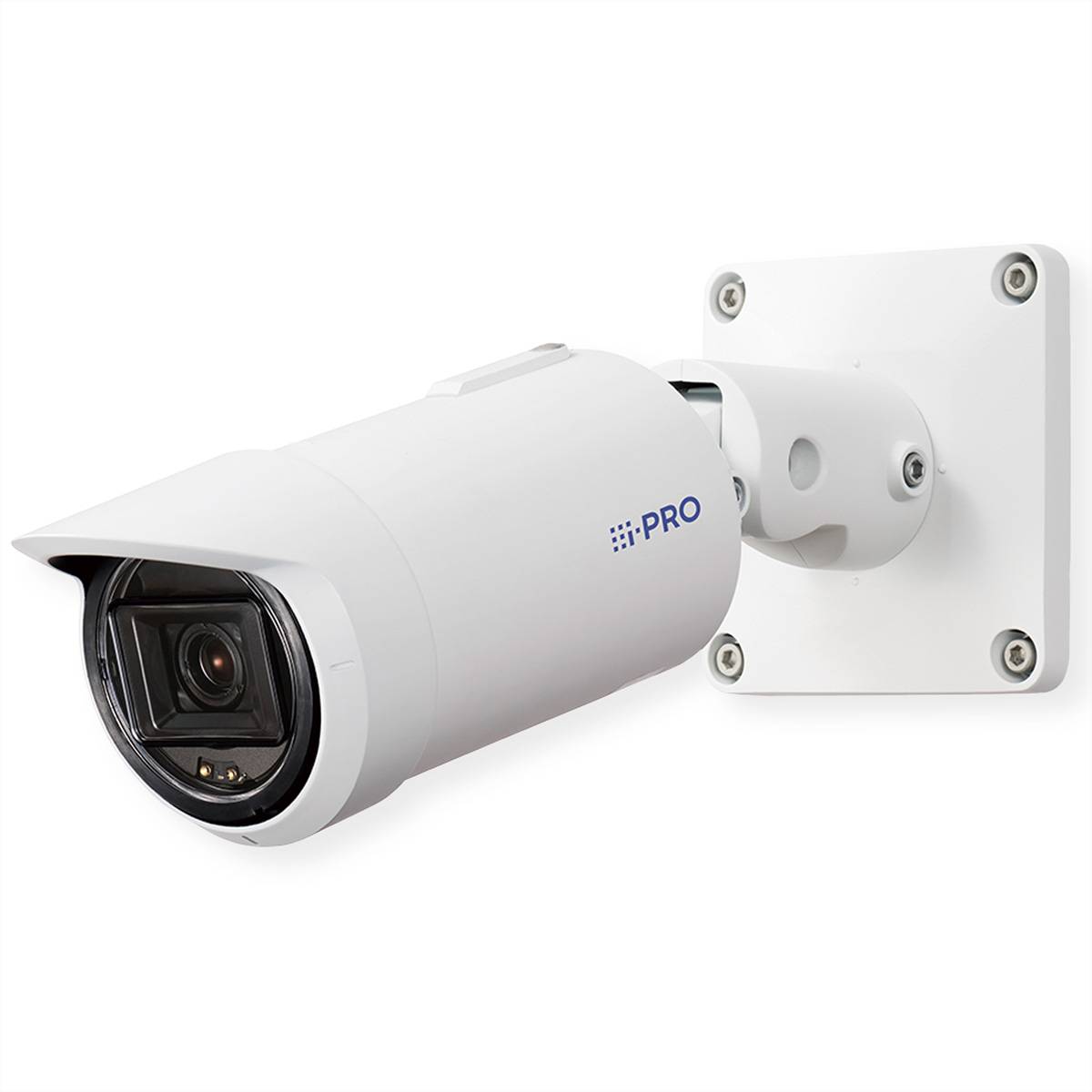

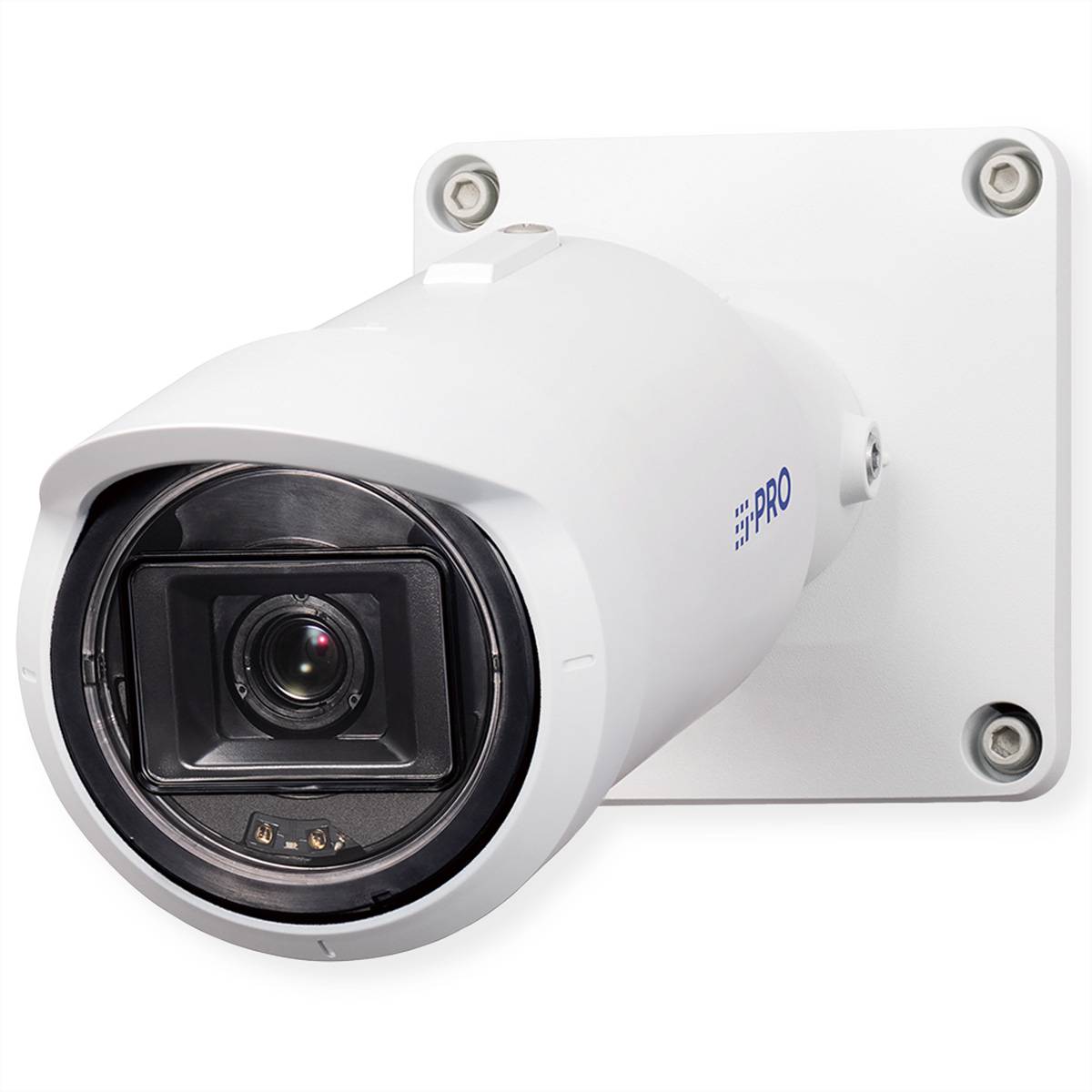

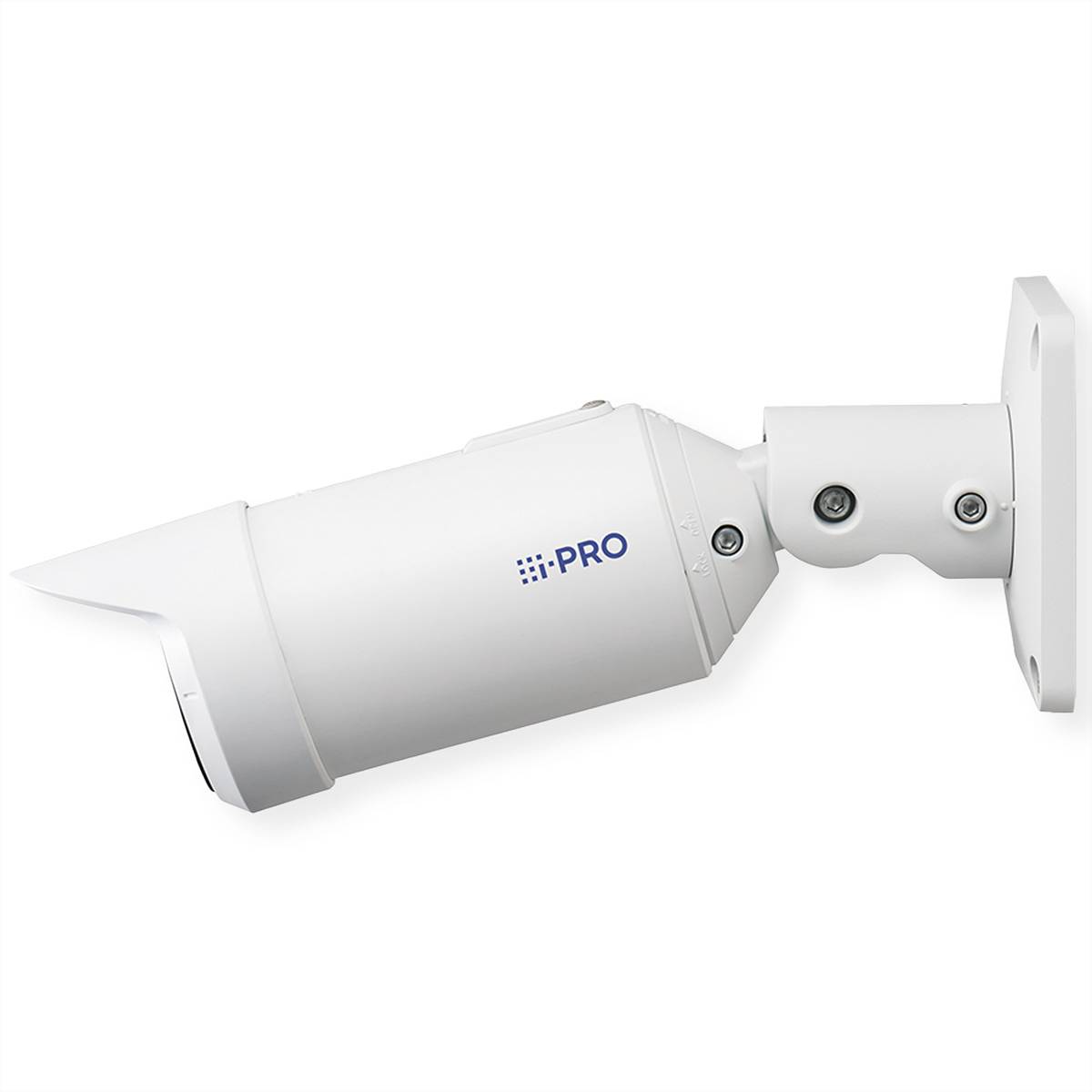

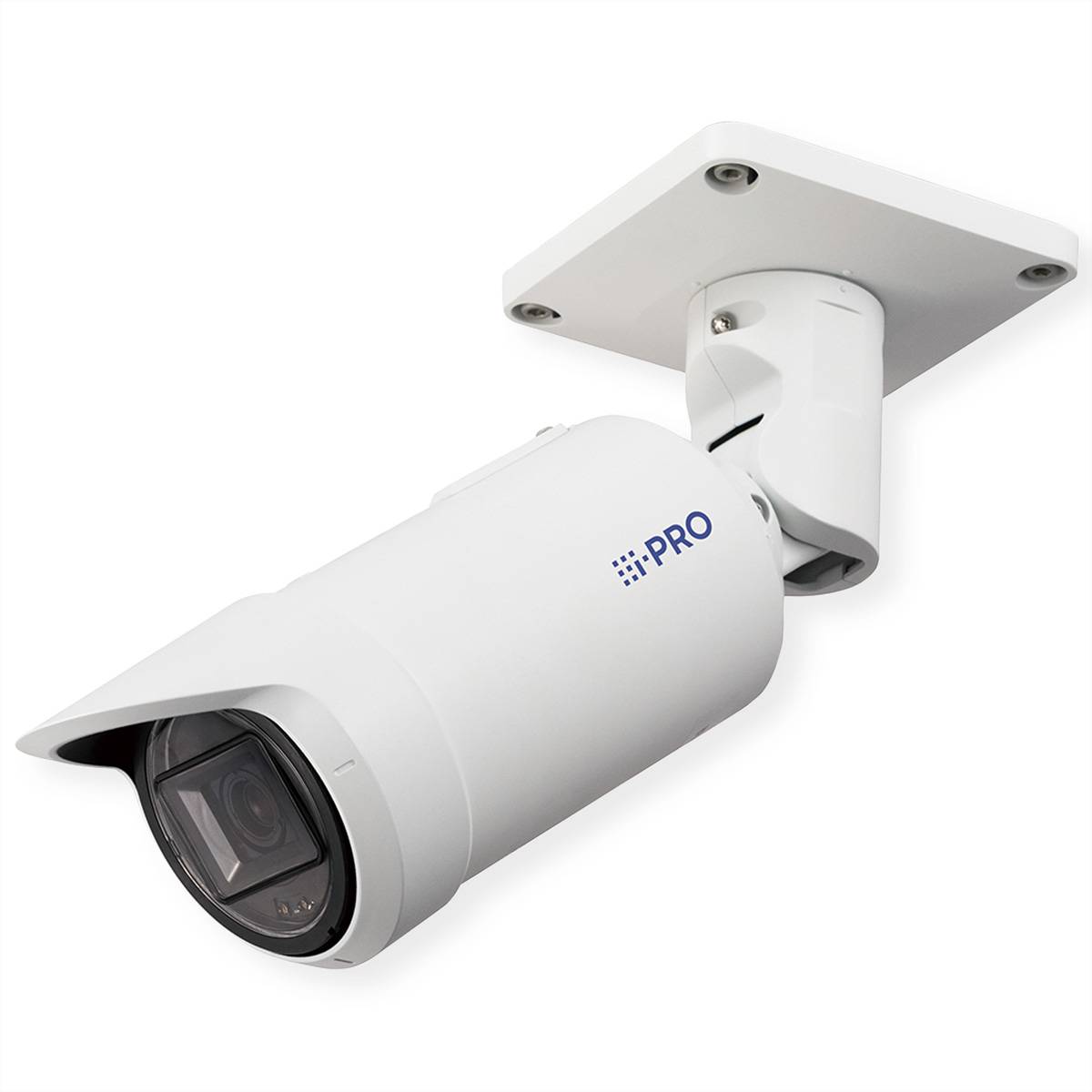

i-PRO WV-S15500-V3LN i-PRO WV-S15500-V3LN
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
I-PRO WV-S15500-V3LN security camera cartridge (form) IP security camera interior & exterior 3072 x 1728 pixels ceiling/wall
- IP security camera for indoors and outdoors
- CMOS 25.4 / 2.8 mm (1 / 2.8") 5 MP 3072 x 1728 pixels
- Wired Ethernet/LAN
- Night vision 55 m
- Optical Zoom 9.3x
- Cartridge (form) moisture-proof ceiling/wall
- IP66 IK10
- Black, White
- 2.4 kg
Technical specifications
- Supported positioning: Inside & outside
- Form factor: Cartridge (shape)
- Tilt angle range -100 - 100°
- Maximum resolution 3072 x 1728 pixel
- Supported audio formats: AAC-LC,G.711,G.726
- Transfer type
Corded
- Width
133 mm
- Height
133 mm
- Depth
383 mm
- Weight
2.4 kg
- Factory colour
White
IP66
- Camera type
Bullet camera
- Playback of
AAC-LC
- Signal standard
IP
- CCTV features
IR LEDs
- Material (details)
Aluminium
Resin
Polycarbonate (PC)
- Type
IP-security camera
- Rotation
360°
- 10/100/1000 Mbps ports
1 x
- Used at
Outdoors
- Power consumption (ON)
12 W
- Power supply (details)
12-48 V
- Sensor type
CMOS
- Power supply
PoE (Power over Ethernet)
- UKCA
not relevant
- Operating temperature (T-T)
-40 - 60 °C
- Ethernet LAN
yes
- Minimum illumination
0.04 Lux
- Auto focus
yes
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Number of users
14 Benutzer
- Number of lenses
1
- Text caption overlay
yes
- Power consumption (Power over Ethernet (PoE))
11.5 W
- Privacy protection
yes
- Number of sensors
1
- Microphone in
yes
- Noise reduction
yes
- Closest focusing distance
0.3 m
- Detect distance (wide)
46.3 m
- Detect distance (tele)
201 m
- Observe distance (wide)
18.5 m
- Observe distance (tele)
80.4 m
- Recognize distance (wide)
9.3 m
- Recognize distance (tele)
40.2 m
- Identify distance (wide)
4.6 m
- Identify distance (tele)
20.1 m
- Highlight Compensation (HLC)
yes
- Dynamic range
132 dB
- Card reader integrated
yes
- Frame rate
30 fps
- Video intelligence analytic
yes
- Bit rate range
16 - 128 Kbit/s
- Number of Privacy masking areas
8
- Zoom capability
yes
- Minimum aperture number
1.3
- Maximum aperture number
2.5
- Night vision
yes
- Video motion detection
yes
- Audio detection
yes
- Maximum memory card size
512 GB
- Operating relative humidity (H-H)
10 - 100 %
- Number of languages
9
- Optical zoom
9.3 x
- Total megapixels
5 MP
- Back Light Compensation (BLC)
yes
- Alarm input/output
yes
- Number of cameras
1
- Fog proof
yes
Documents & Downloads
Datasheet
Datasheet 3798686 i-PRO WV-S15500-V3LN i-PRO WV-S15500-V3LN
User & Safety Instructions
User & Safety Instructions 3798686 i-PRO WV-S15500-V3LN i-PRO WV-S15500-V3LN
Description
5MP Bullet Network camera for outdoor 5MP Intelligent Automatic (with AI-engine). Super-dynamic 132dB. Colour night vision (0.04 to 0.06 lx) (-V2LG: 0.12 to 0.17 lx). Intelligent coding (with AI-engine). Built-in IR LED Vandalism-proof ONVIF® PROFILE G / M / S / T
This text is machine translated.
Scope of delivery
- I-PRO WV-S15500-V3LN Outdoor Bullet VANDAL 1/3" 5MP 2.9 - 9 mm
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
