i-PRO WV-S25500-V3L i-PRO WV-S25500-V3L
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

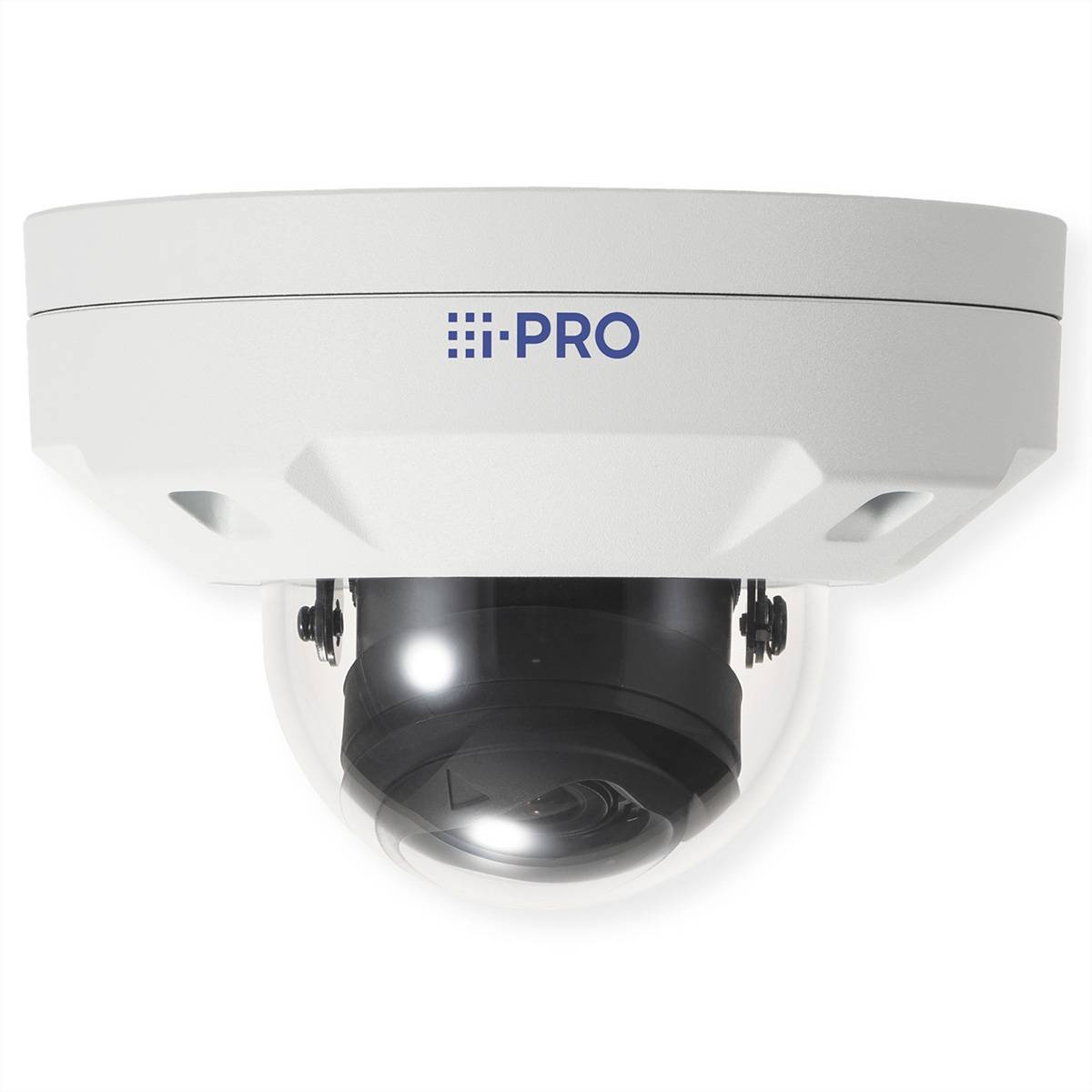

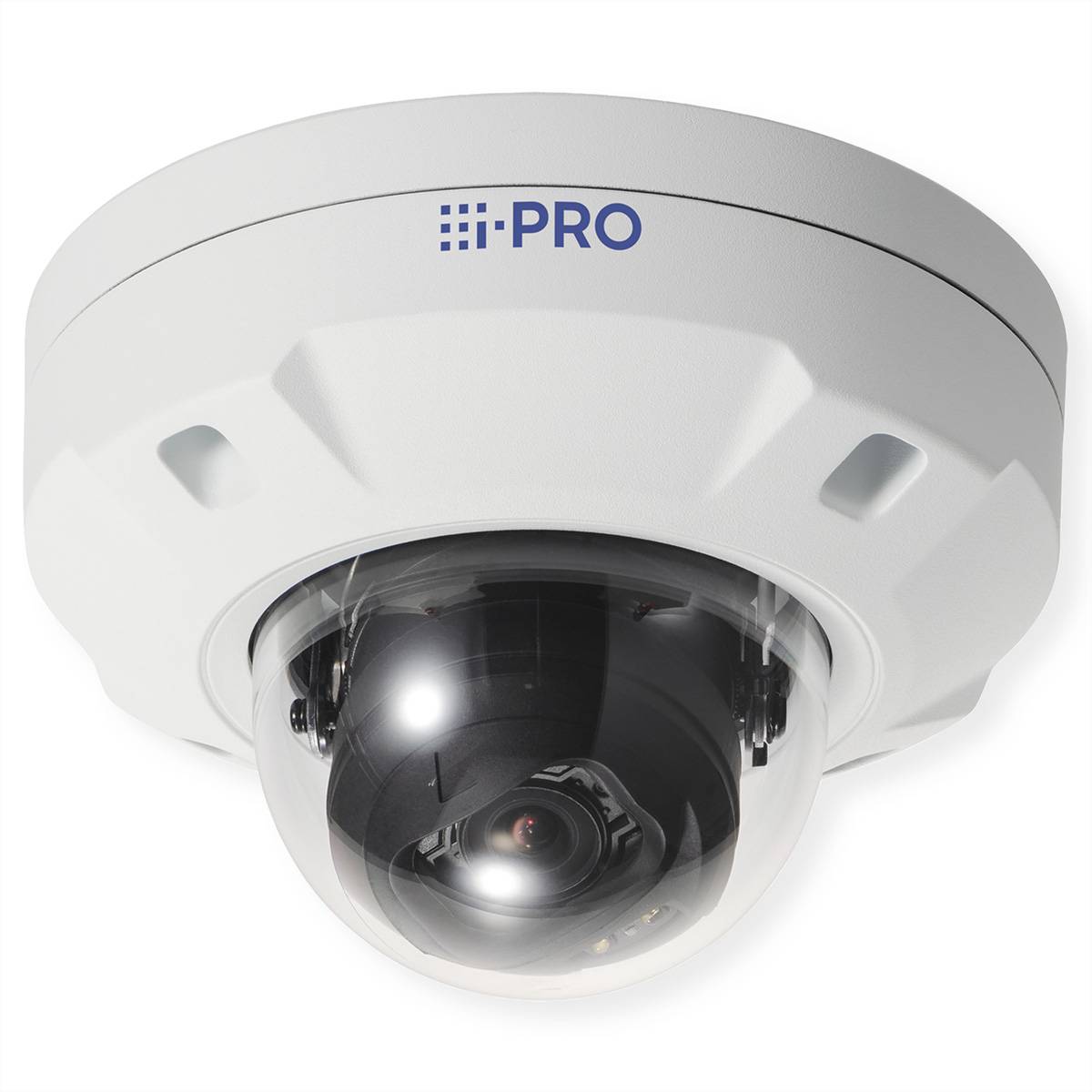

I-PRO WV-S25500-V3L Security Camera Outdoor IP Security Camera 3072 x 2304 Pixel Ceiling
- Outdoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8") 5 MP 3072 x 2304 pixels
- Wired Ethernet/LAN
- Night view 55 m IR
- Optical Zoom 3.1x
- Dome ceiling
- IP66 IK10
- White
- 1.1 kg
Technical specifications
- Supported positioning: Outside
- Form factor: Dome
- Maximum resolution 3072 x 2304 pixel
- Supported audio formats: G.711,G.726
- Transfer type
Corded
- Width
155 mm
- Height
105 mm
- Depth
155 mm
- Weight
1.1 kg
- Factory colour
White
IP66
- Bluetooth
No
- Camera type
Dome camera
- (Ø)
15.4 cm
- Signal standard
IP
- CCTV features
IR LEDs
- Material (details)
Aluminium
Polycarbonate (PC)
- Type
IP-security camera
- Used at
Outdoors
- Power consumption (ON)
12 W
- Sensor type
CMOS
- Power supply
PoE (Power over Ethernet)
- Wi-Fi
No
- UKCA
not relevant
- Operating temperature (T-T)
-40 - 60 °C
- Ethernet LAN
yes
- Minimum illumination
0 Lux
- Auto focus
yes
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Number of users
14 Benutzer
- Power consumption (Power over Ethernet (PoE))
11.5 W
- Web browser
yes
- Detect distance (wide)
48.9 m
- Detect distance (tele)
207.4 m
- Observe distance (wide)
19.5 m
- Observe distance (tele)
83 m
- Recognize distance (wide)
9.8 m
- Recognize distance (tele)
41.5 m
- Identify distance (wide)
4.9 m
- Identify distance (tele)
20.7 m
- Highlight Compensation (HLC)
yes
- Dynamic range
132 dB
- Card reader integrated
yes
- Number of Privacy masking areas
8
- Zoom capability
yes
- Night vision
yes
- Video motion detection
yes
- Audio detection
yes
- Operating relative humidity (H-H)
10 - 100 %
- Optical zoom
3.1 x
- Total megapixels
5 MP
- Back Light Compensation (BLC)
yes
- Built-in HDD
no
- Number of cameras
1
Documents & Downloads
Datasheet
Datasheet 3798692 i-PRO WV-S25500-V3L i-PRO WV-S25500-V3L
User & Safety Instructions
User & Safety Instructions 3798692 i-PRO WV-S25500-V3L i-PRO WV-S25500-V3L
Description
5MP Outdoor Dome Network Camera 5MP. Intelligent Automatic (with AI-engine). Super-dynamic 132dB. Colour night vision (0.04 to 0.06 lx) (-V2LG: 0.12 to 0.17 lx). Intelligent coding (with AI-engine). Built-in IR LED Vandalism-proof ONVIF® PROFILE G / M / S / T
This text is machine translated.
Scope of delivery
- I-PRO WV-S25500-V3L Outdoor Dome VANDAL 1/3" 5MP 2.9 - 9 mm
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
