i-PRO WV-S65340-Z4N i-PRO WV-S65340-Z4N
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

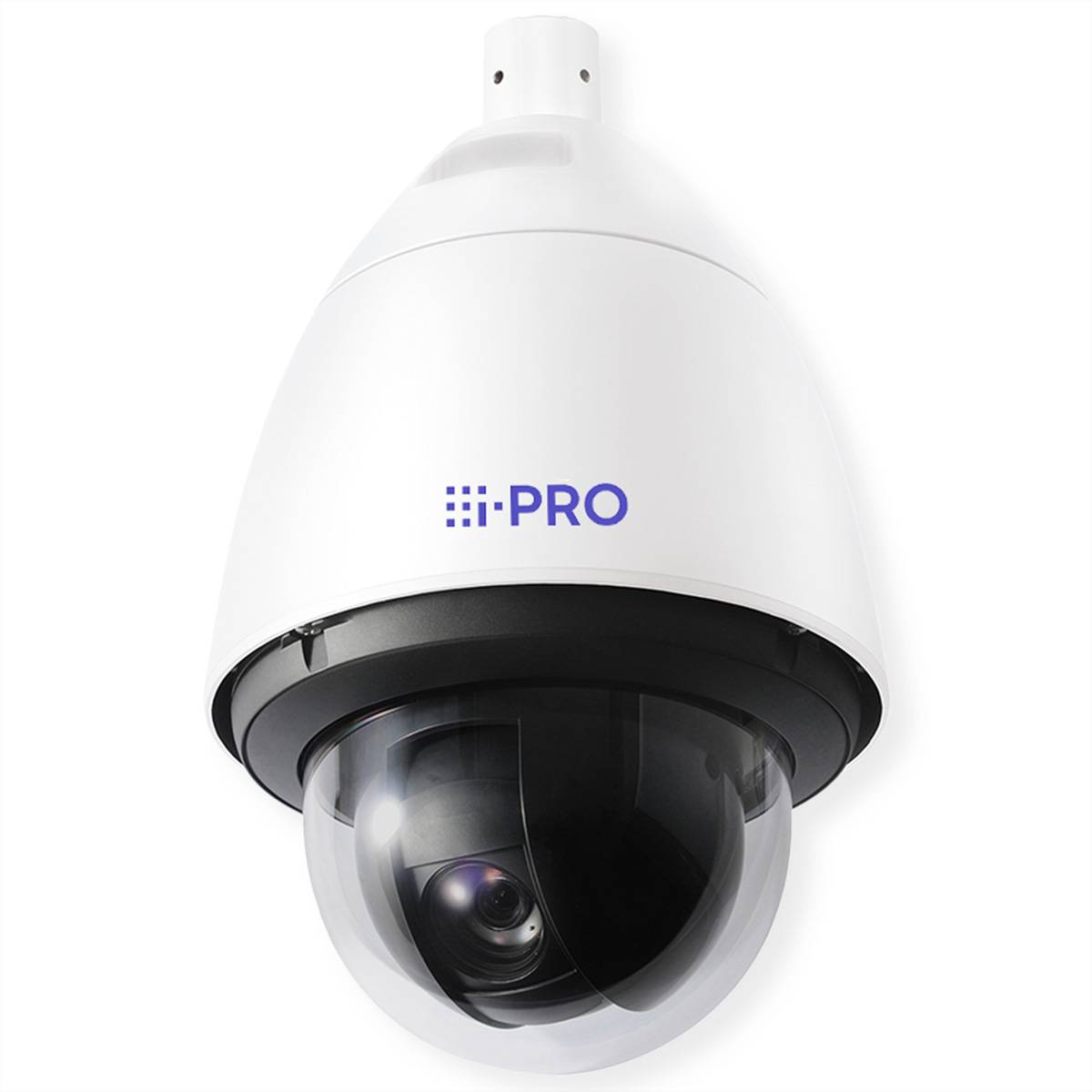

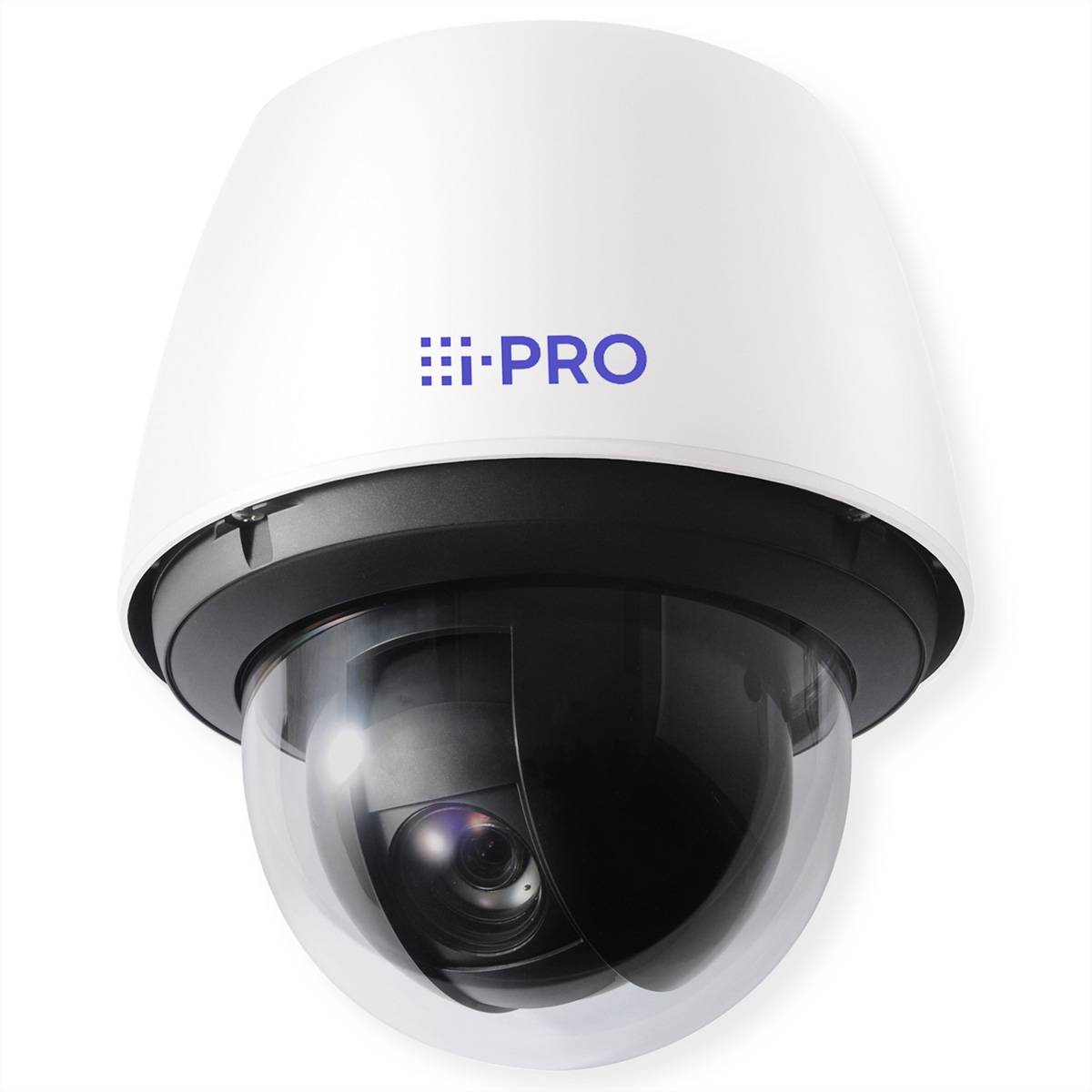

I-PRO WV-S65340-Z4N Outdoor security camera Dome IP security camera 1920 x 1080 pixels ceiling
- Outdoor IP security camera
- CMOS 25.4 / 2.8 mm (1 / 2.8") 2 MP 1920 x 1080 pixels
- Wired Ethernet/LAN
- Optical Zoom: 40x Digital Zoom: 16x
- Dome ceiling
- IP66, IP67 IK10
- White
- 4.3 kg
Technical specifications
- Supported positioning: Outside
- Form factor: Dome
- International protection class (IP code): IP66, IP67
- Tilt angle range -15 - 195°
- Preset slope speed: 500 ° / second
- Preset Shell Speed: 500 °/second
- Supported audio formats: AAC-LC,G.711,G.726
- Transfer type
Corded
- Height
278 mm
- Weight
4.3 kg
- Factory colour
White
- Bluetooth
No
- (Ø)
22.9 cm
- Display resolution
1920 x 1080 Pixel
- Playback of
AAC-LC
- Material (details)
Aluminium
Polycarbonate (PC)
- Type
IP-security camera
- Power supply (details)
24 V
- Sensor type
CMOS
- Wi-Fi
No
- UKCA
not relevant
- Operating temperature (T-T)
-30 - 60 °C
- Ethernet LAN
yes
- Minimum illumination
0.0004 Lux
- Auto focus
yes
- Optical sensor size
25,4 / 2,8 mm (1 / 2.8")
- Number of users
14 Benutzer
- Noise reduction
yes
- Web browser
yes
- Pan range
0 - 360°
- Detect distance (wide)
60.3 m
- Detect distance (tele)
2095.2 m
- Observe distance (wide)
24.1 m
- Observe distance (tele)
838.1 m
- Recognize distance (wide)
12.1 m
- Recognize distance (tele)
419 m
- Identify distance (wide)
6 m
- Identify distance (tele)
209.5 m
- Highlight Compensation (HLC)
yes
- Dynamic range
144 dB
- Card reader integrated
yes
- Camera pan control
yes
- Camera tilt control
yes
- Pan manual speed
0,065 - 150 °/Sekunde
- Tilt manual speed
0,065 - 150 °/Sekunde
- Number of Privacy masking areas
32
- Zoom capability
yes
- Digital zoom
16 x
- Audio detection
yes
- Operating relative humidity (H-H)
10 - 100 %
- Optical zoom
40 x
- PTZ control
yes
- Total megapixels
2 MP
- Back Light Compensation (BLC)
yes
- Built-in HDD
no
- Number of cameras
1
Documents & Downloads
Datasheet
Datasheet 3798696 i-PRO WV-S65340-Z4N i-PRO WV-S65340-Z4N
User & Safety Instructions
User & Safety Instructions 3798696 i-PRO WV-S65340-Z4N i-PRO WV-S65340-Z4N
Description
2MP (1080p) 40x Zoom outdoor PTZ network camera 2MP (1080p) 1920x1080. 40facher optical zoom Intelligent Automatic (with AI-engine). Super dynamic 144dB. Colour night vision (0.001 to 0.015 lx). Durable pan/tilt gear mechanism. ONVIF® PROFILE G / M / S / T
This text is machine translated.
Scope of delivery
- I-PRO WV-S65340-Z4N outdoor PTZ vandal 1/3" 2MP 4.25 - 170 mm
