Buy ICY BOX IB-4013MCL-C4 USB C® (USB4®) M.2 PCIe NVMe Data cloner Clone function

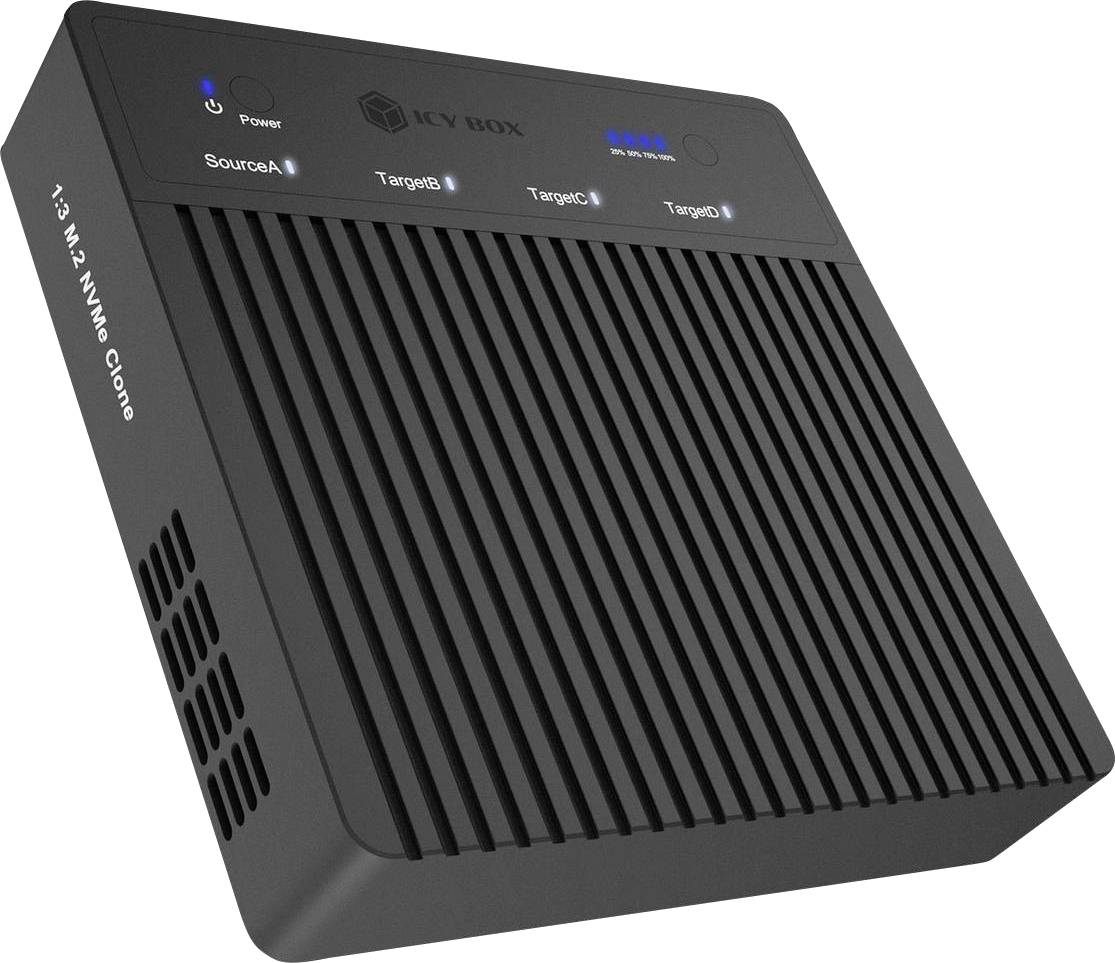

Black 1-to-3 NVMe clone docking station with power and source/target status LEDs on top.

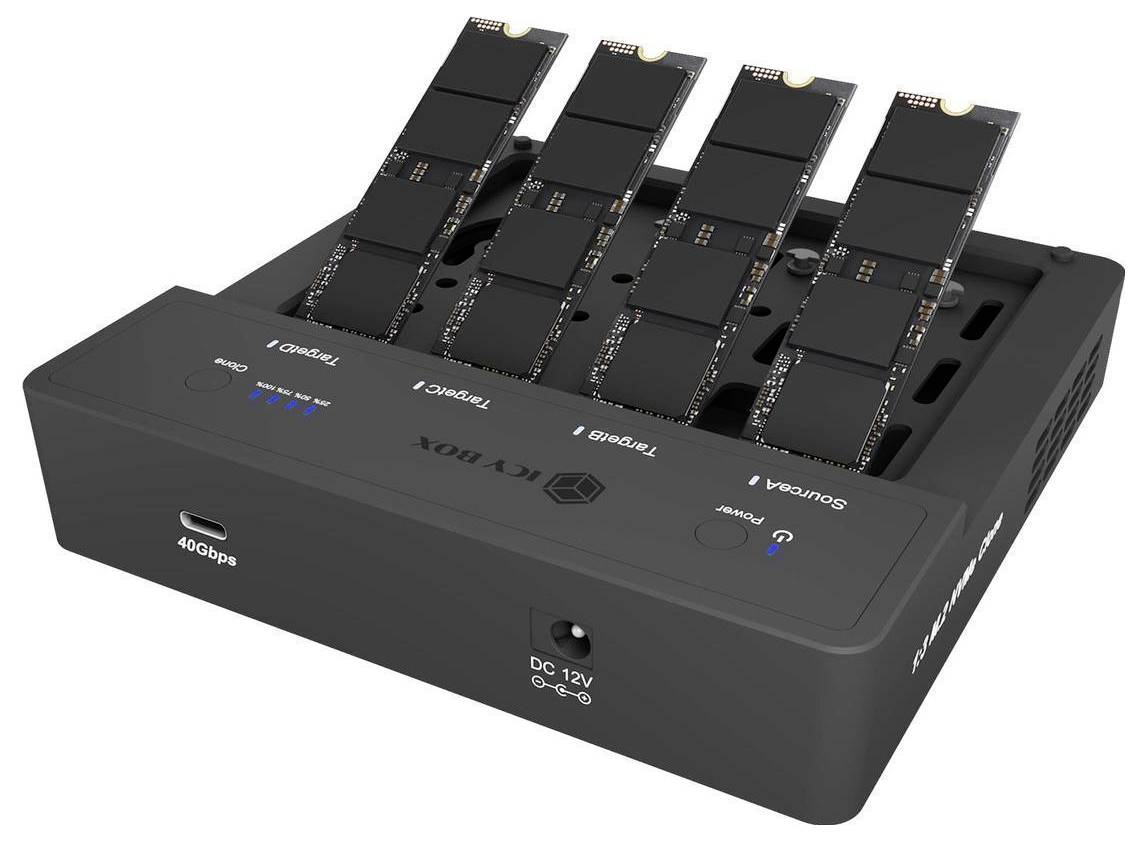

Black 4-bay NVMe SSD docking station with four drives inserted, showing front status LEDs, power button, and DC 12V input.

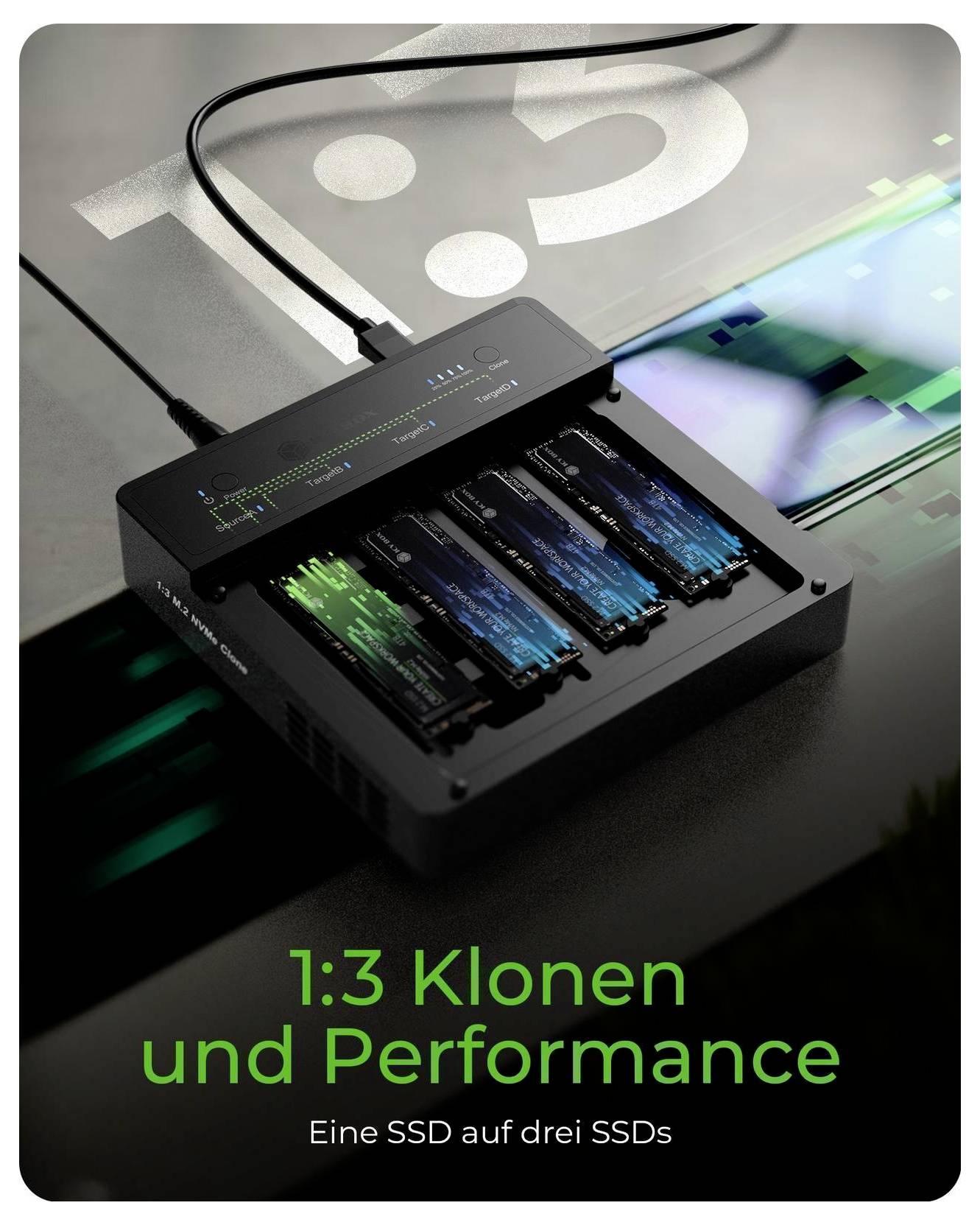

Promotional image of a 1:3 SSD cloning and performance device showing three SSD slots and a connected cable, with German text '1:3 Klonen und Performance' and 'Eine SSD auf drei SSDs'.<br>

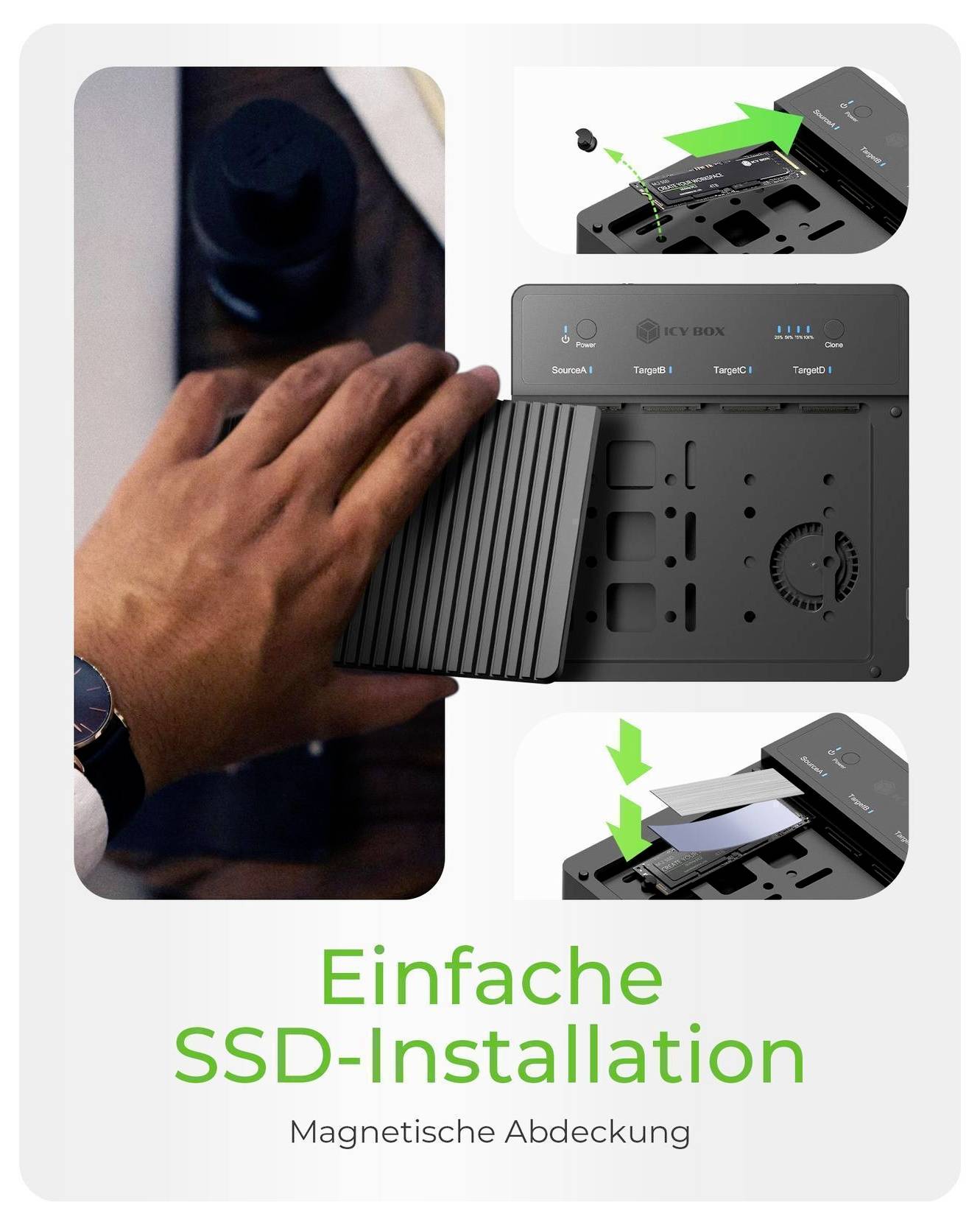

Infographic showing easy SSD installation with a magnetic cover, hand sliding the panel, and green arrows indicating opening and closing steps.

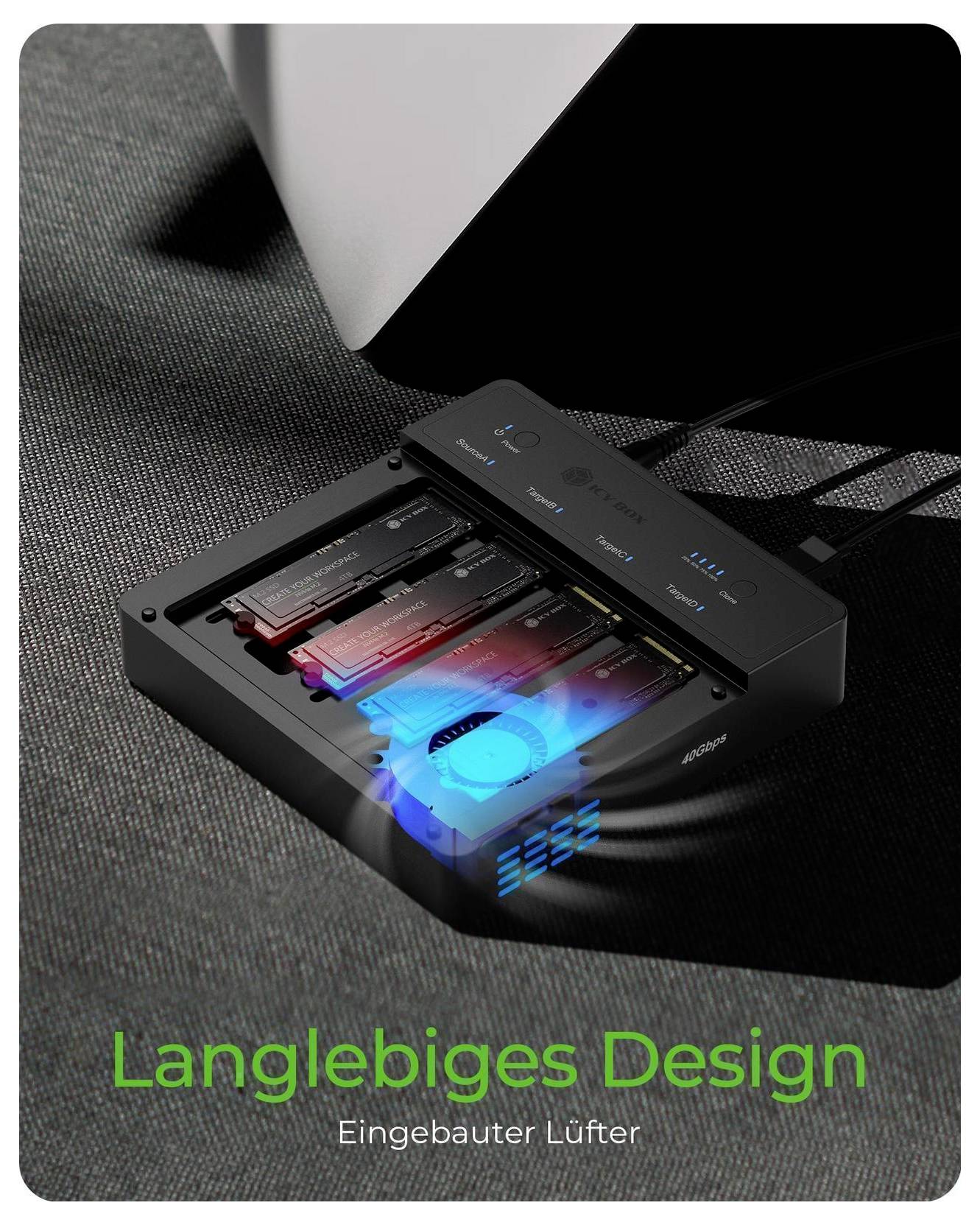

Black rectangular cooling unit with glowing blue fan and red heatsinks, shown on a laptop-like surface; text says 'Langlebiges Design' and 'Eingebauter Lüfter'.<br>

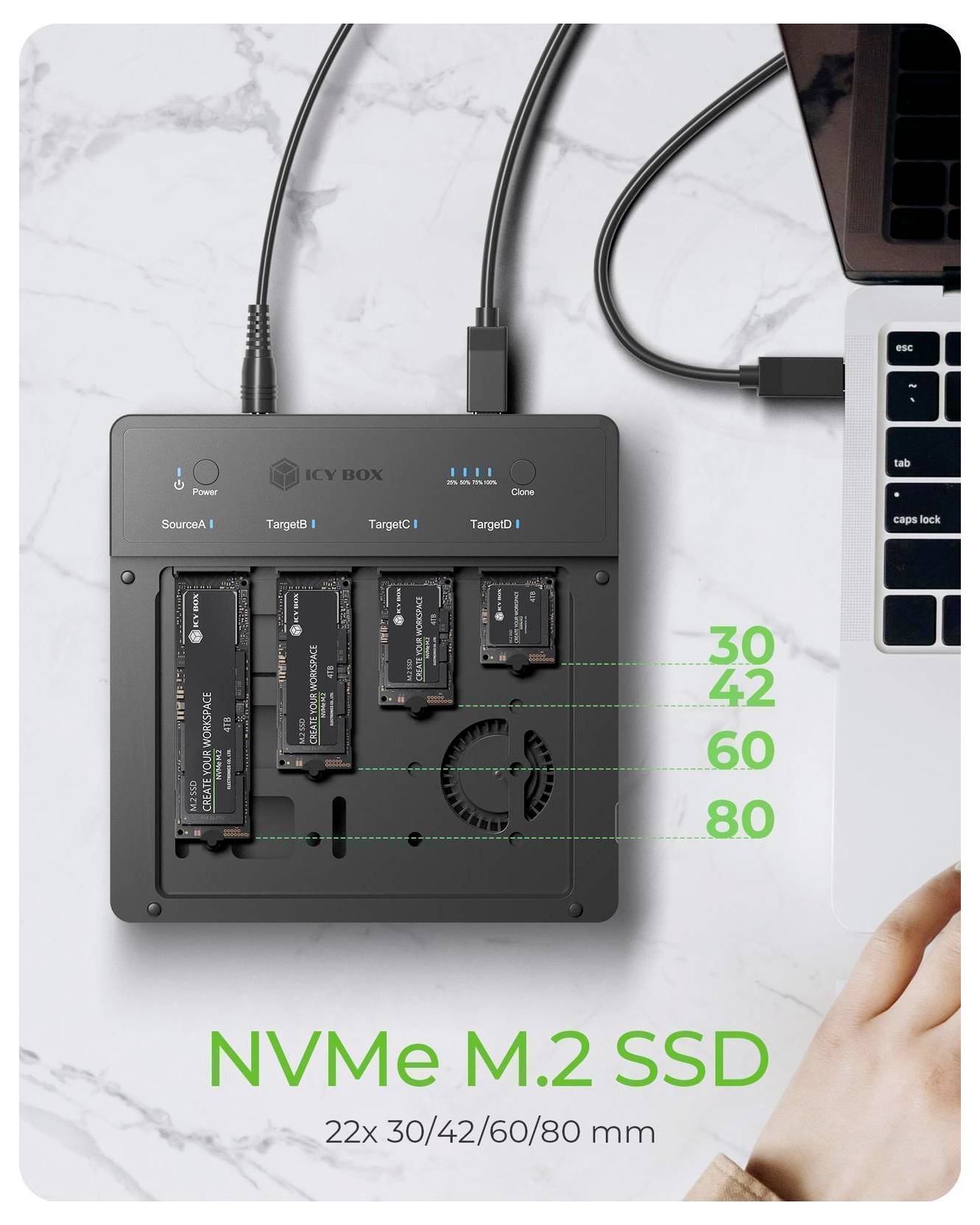

Product photo of an icy box NVMe M.2 SSD docking station with four labeled drive slots and green text showing compatibility: '22x 30/42/60/80 mm'.

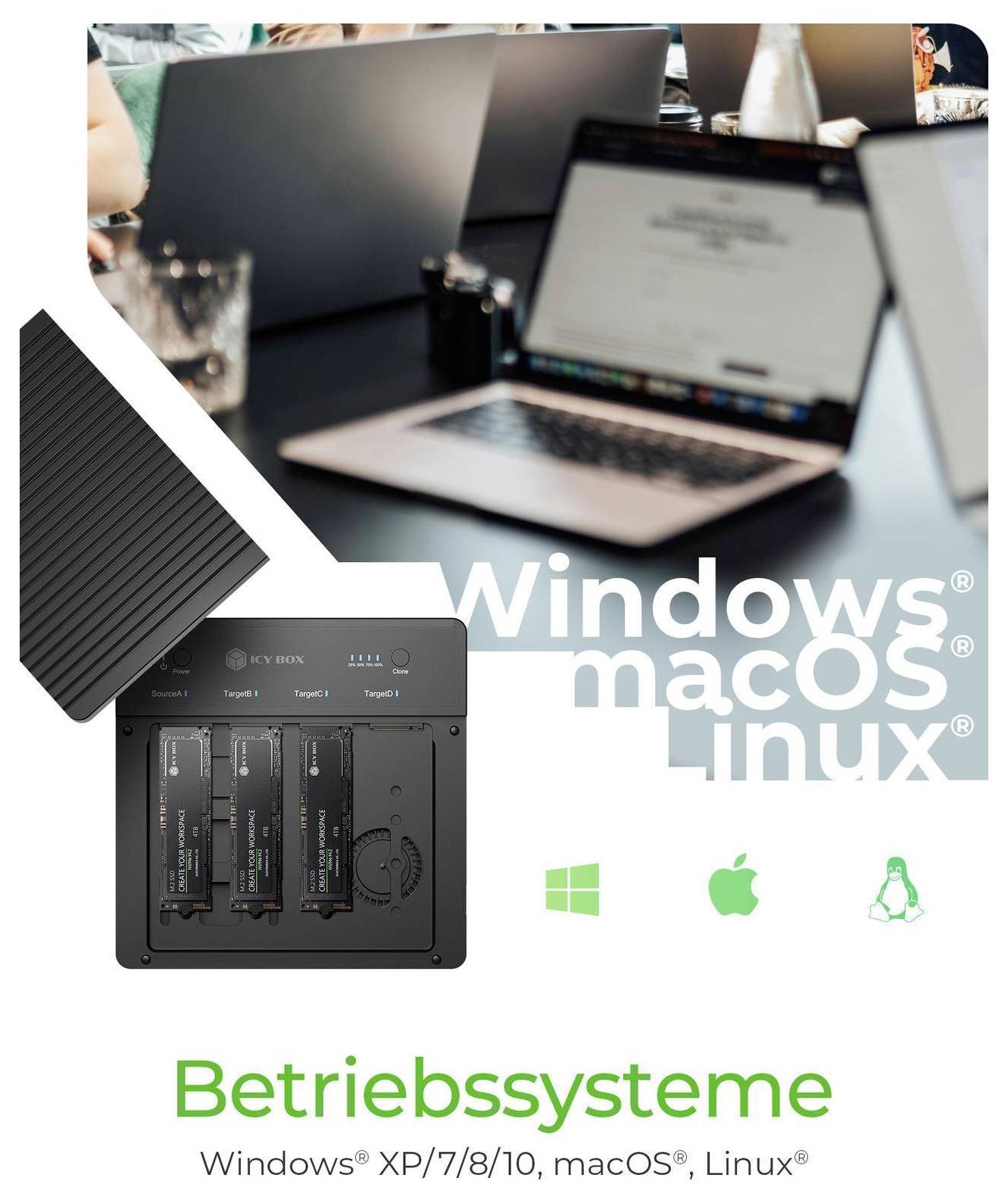

Promotional graphic for a storage device showing a laptop and drive enclosure, labeled 'Windows', 'macOS', and 'Linux' with corresponding logos; German text reads 'Betriebssysteme'.<br>

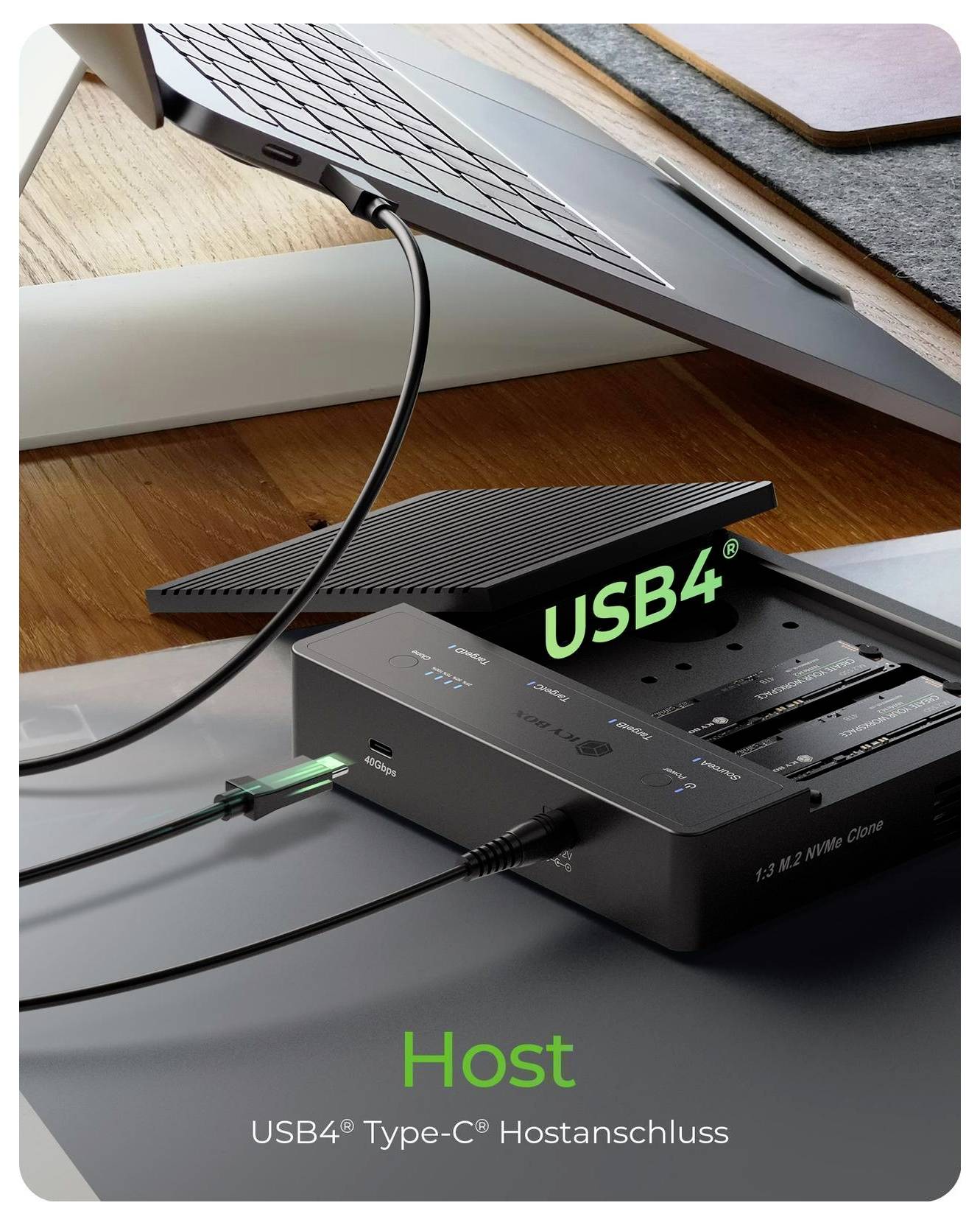

USB4 dock connected to a laptop, with green 'USB4' and 'Host' labels showing the Type-C host connection and multiple ports.

1/8

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 193.27 / piece)

€ 193.27

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Clone station for 4x M.2 NVMe SSD

Highlights & Details

Durable design with fan

Technical specifications

Colour, black
Material: Aluminium
Data transfer rate: Up to 40 Gbit/s.
ASM2464PDX chipset
Cooling: Active
Supported M.2 cards: M.2 NVMe M-Key
LED: Operation and access
On/off switch: Yes
Power supply 12 V/5 amp

Factory colour: Multicolour

Depth: 145 mm

Height: 30 mm

Width: 145 mm

No. of HDDs (max.): 4 x

Connector (PC): USB C® (USB4®)

Connector (HDD): M.2 PCIe NVMe

Features: Clone function

Compatible with: 2230
2242
2260
2280

Weight: 0.67 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3778986 ICY BOX IB-4013MCL-C4 USB C® (USB4®) M.2 PCIe NVMe Data cloner Clone function

User & Safety Instructions

User & Safety Instructions 3778986 ICY BOX IB-4013MCL-C4 USB C® (USB4®) M.2 PCIe NVMe Data cloner Clone function

Description

1:3 offline cloning: Enables the duplication of data from an M.2 NVMe SSD on up to three additional SSDs simultaneously and thus simplifies the data transfer.

USB4® rapid data speed technology: Provides up to 40 Gbps, with each SSD slot supporting speeds of up to 16 Gbps – Ideal for fast data access.

The magnetic suction cup cover allows simple installation and removal of SSDs, WAS makes the device easy to use for all users.

Efficient cooling system: The aluminum casing and the integrated fan ensure optimum operating temperatures for a stable performance even with longer use.

Clone progress display: LEDs show the clone progress in 25% steps and provide real-time status updates.

This text is machine translated.

Features

USB4® Type-C® with transfer rate up to 40 Gbps

Scope of delivery

1X IB-4013MCL-C4
1 x PSU
1x power cord
1x USB-Type-C®-to-Type-C® cable
4x heat sink
4x heat conduction pads
6x rubber attachments

Hints

Supports NVMe SSDs in sizes 22x 30/42/60/80 mm

System requirements

Windows®
MacOS ®
Linux
