Idec HS5D-03ZRNM-SET HS5D-03ZRNM-SET Safety button 300 V AC 10 A Steel lever (straight), Steel lever (curved) momentary
EAN:
Part number:
Item no:
Datasheet (PDF)
12 Piece(s)
Sales and shipping:
Number
Total (€ 55.45 / piece)
€
Highlights & Details

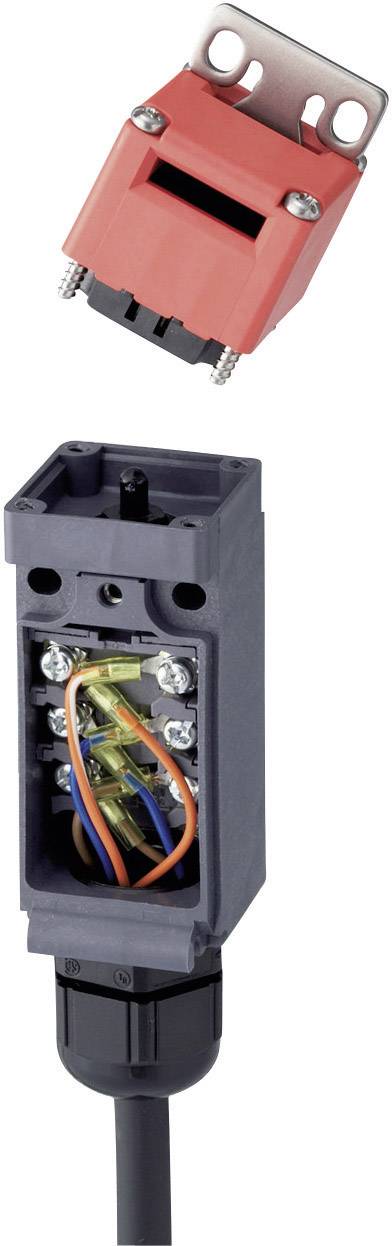

Safety switch 300 V/AC 10 A with head monitoring HS5D in the set
- With head monitoring
- This text is machine translated.
Technical specifications
- Product type
Safety button
- Connection
Screws
- Operation type
Steel lever (straight)
Steel lever (curved)
- Switching voltage
300 V AC
- Switching current (max.)
10 A
- Contact type
3 breakers
- Functions
momentary
- Min. temperature
-30 °C
- Max. temperature
+70 °C
IP67
- Thread size
M20
- Material
Plastic
- Width
30 mm
- Type
HS5D-03ZRNM-SET
- Content
1 Set
- Dim
(W x H x D) 30 x 91 x 30 mm
- RoHS-compliant
- Height
91 mm
- Depth
30 mm
Documents & Downloads
Datasheet
Datasheet 702425 Idec HS5D-03ZRNM-SET HS5D-03ZRNM-SET Safety button 300 V AC 10 A Steel lever (straight), Steel lever (curved) momentary
User & Safety Instructions
User & Safety Instructions 702425 Idec HS5D-03ZRNM-SET HS5D-03ZRNM-SET Safety button 300 V AC 10 A Steel lever (straight), Steel lever (curved) momentary
Conformity certificate
Conformity certificate 702425 Idec HS5D-03ZRNM-SET HS5D-03ZRNM-SET Safety button 300 V AC 10 A Steel lever (straight), Steel lever (curved) momentary
Description
Scope of delivery

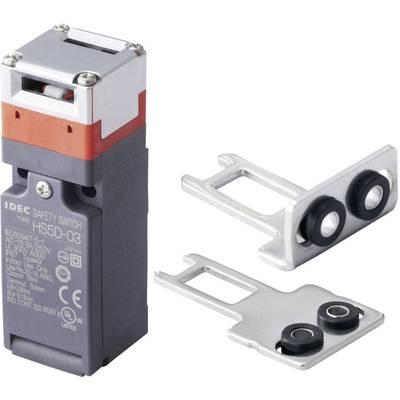

- Straight and angled actuator
- Cable gland
