Iiyama 17" Resistive Touchscreen EEC: E (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 5 ms HDMI™, DisplayPort, VGA TN LCD

A 17-inch iiyama ProLite T1731SR monitor with a touchscreen icon on a blue background.
17-inch monitor on a stand, slightly tilted to the side. Screen displays a blue surface with symbols and text.

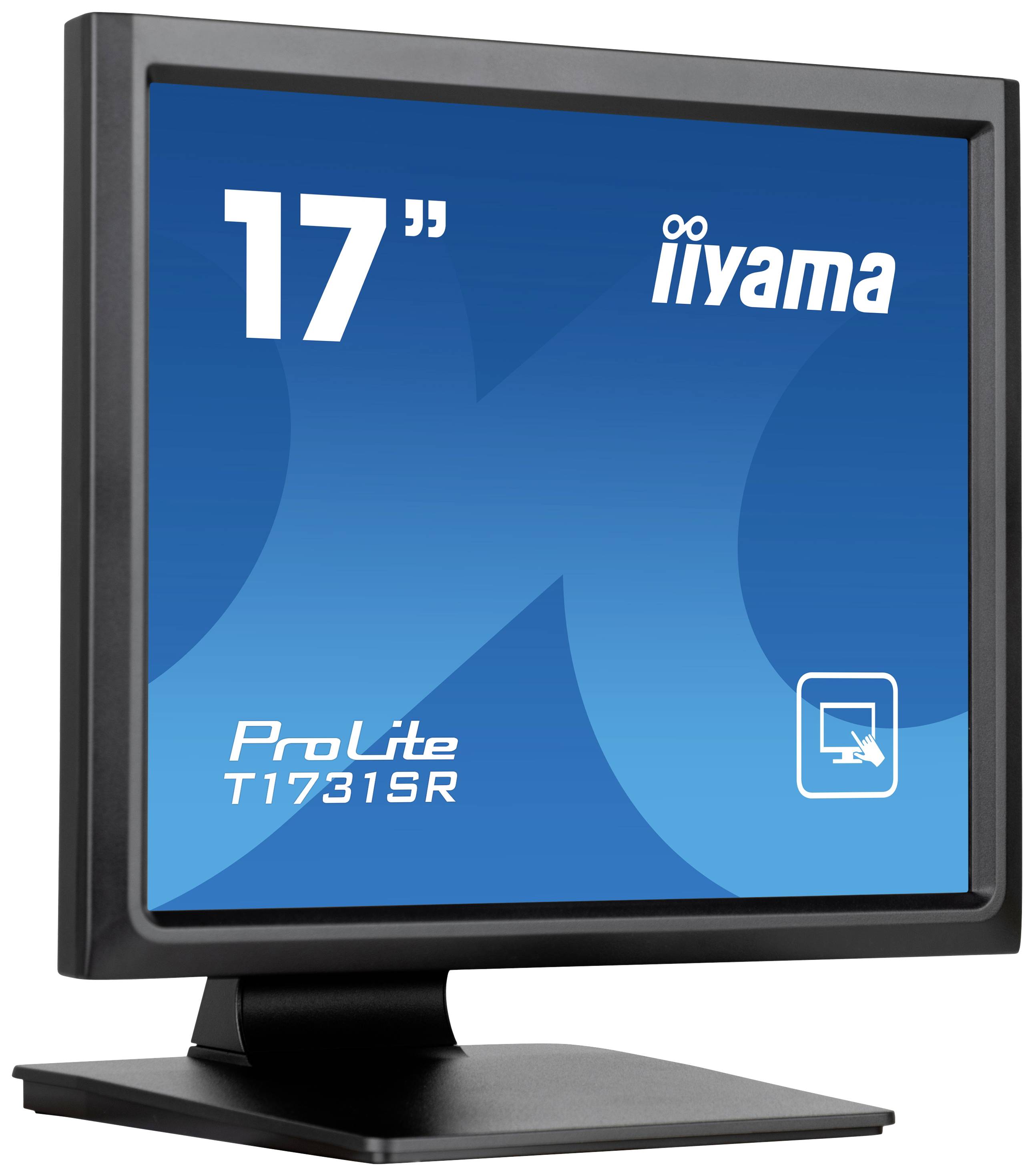

A black computer monitor displays a blue screen with the inscription '17" iiyama ProLite T1731SR' and a touchscreen symbol.

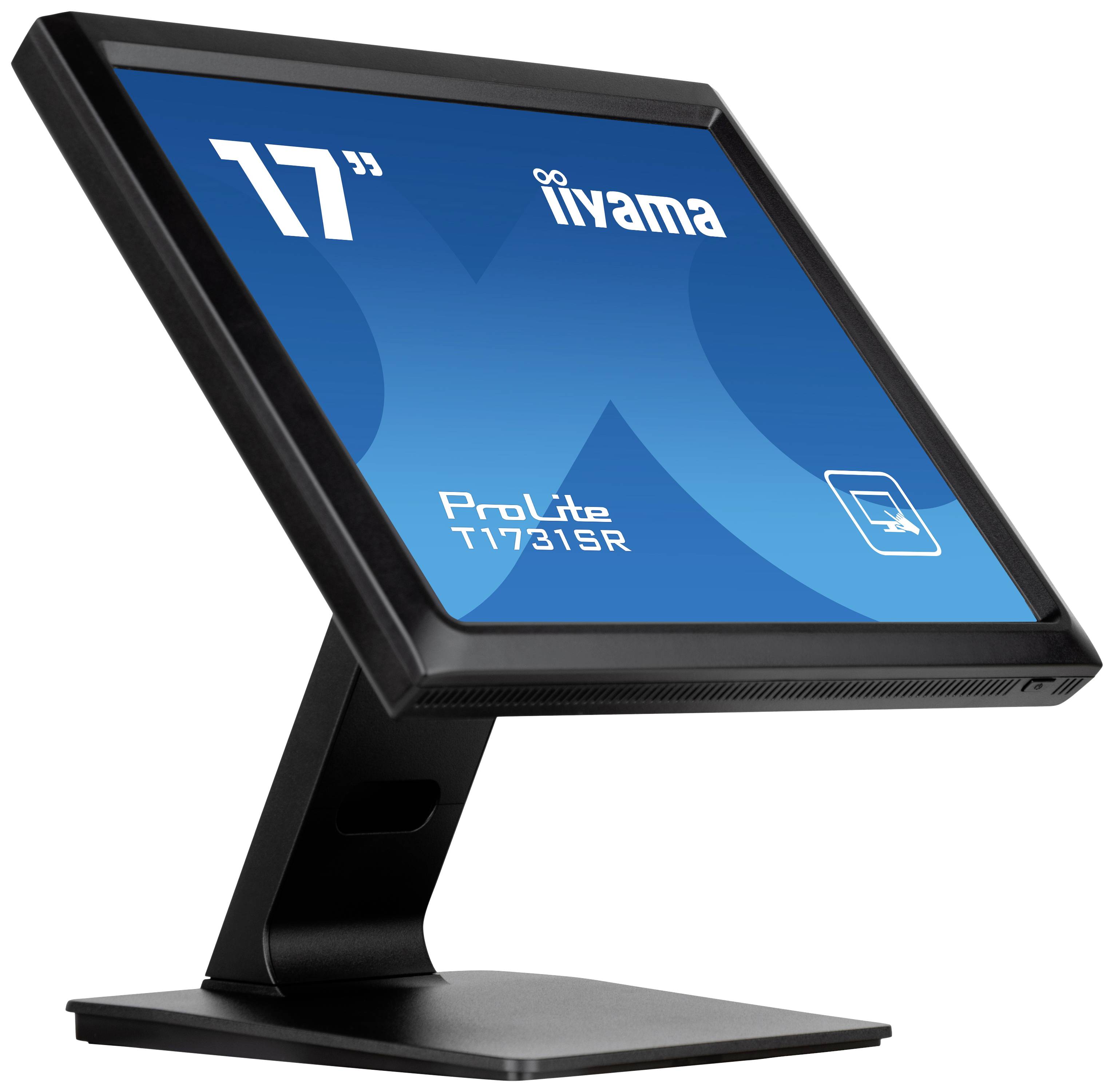

A 17-inch iiyama ProLite touchscreen monitor on a stand, shown from the side, with the model number 'T1731SR' displayed on the screen.

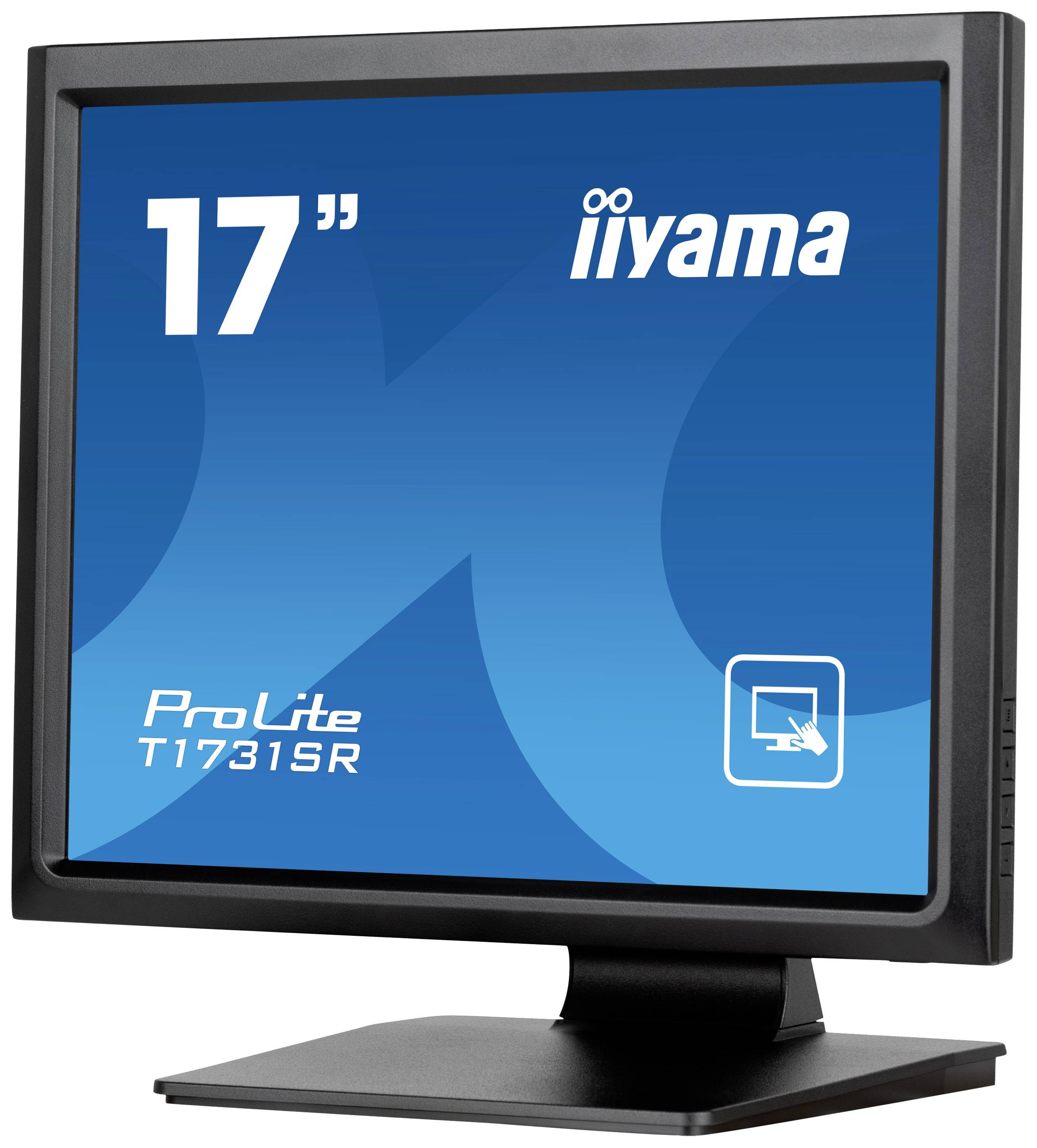

A 17-inch iiyama monitor, model ProLite T1731SR, displays a blue screen design with a touchscreen symbol.

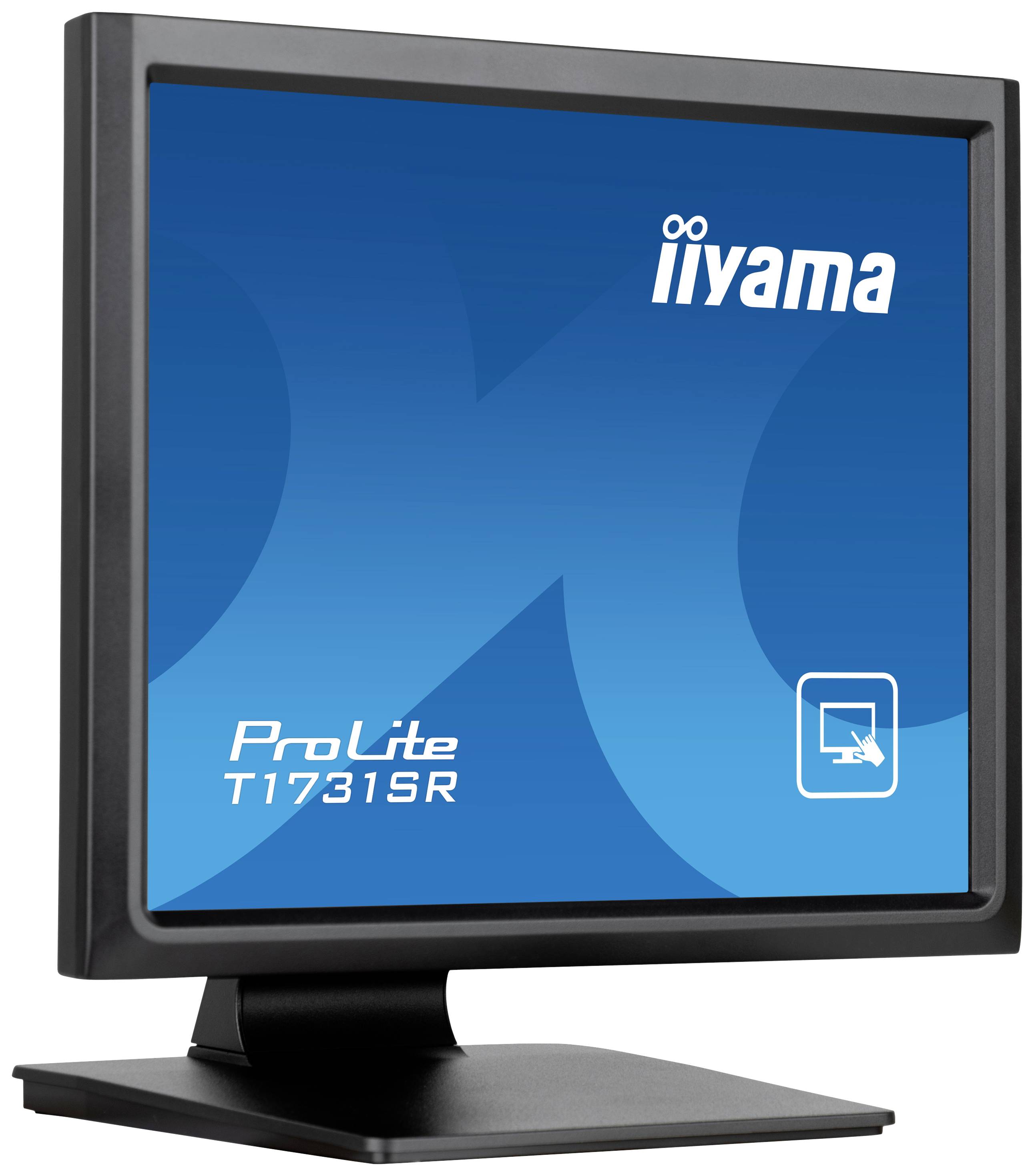

A computer monitor with the inscription 'iiyama ProLite T1731SR', displays a blue design with a touchscreen symbol.

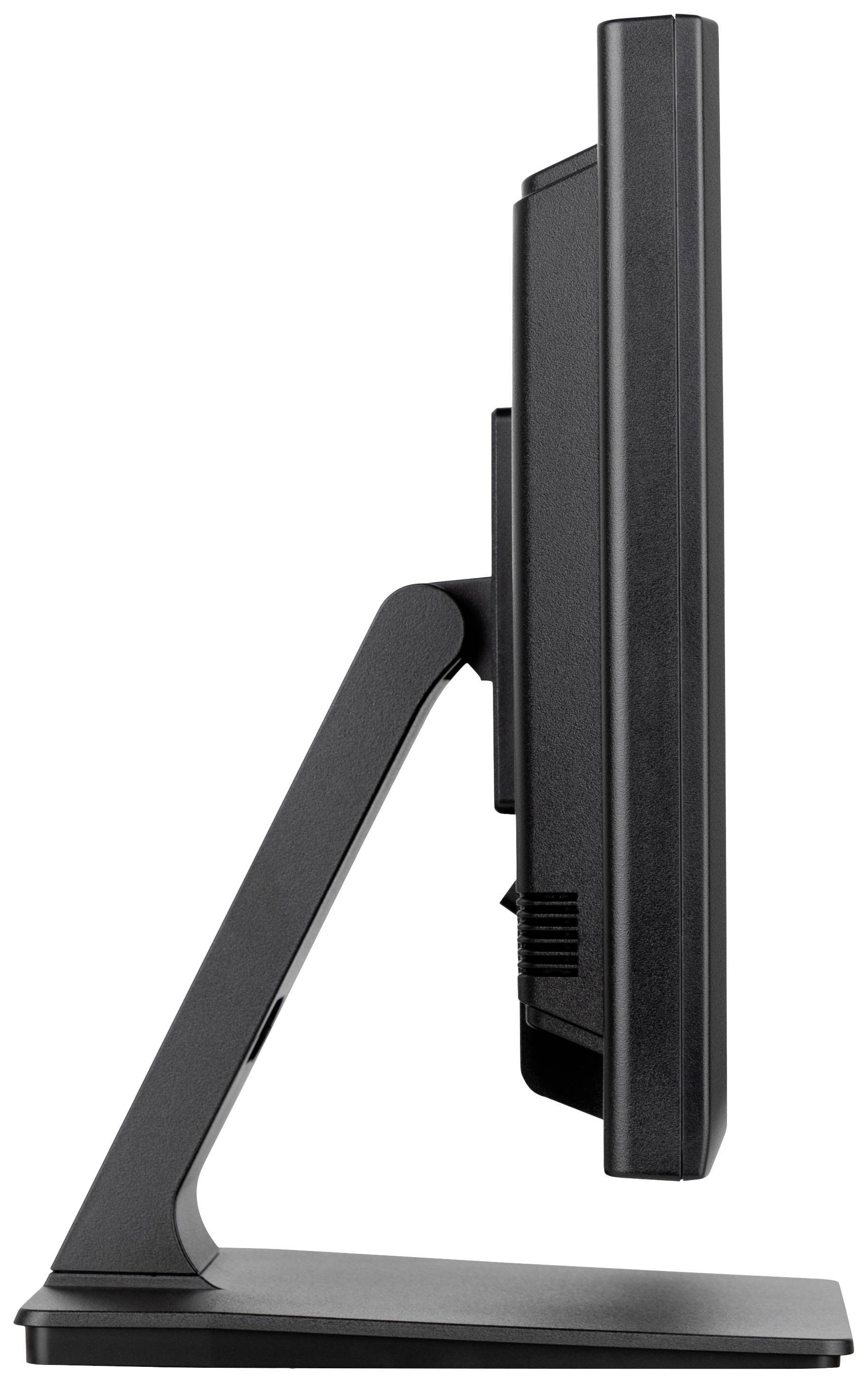

A black computer monitor from the side, showing a sleek, modern design on a sturdy stand.

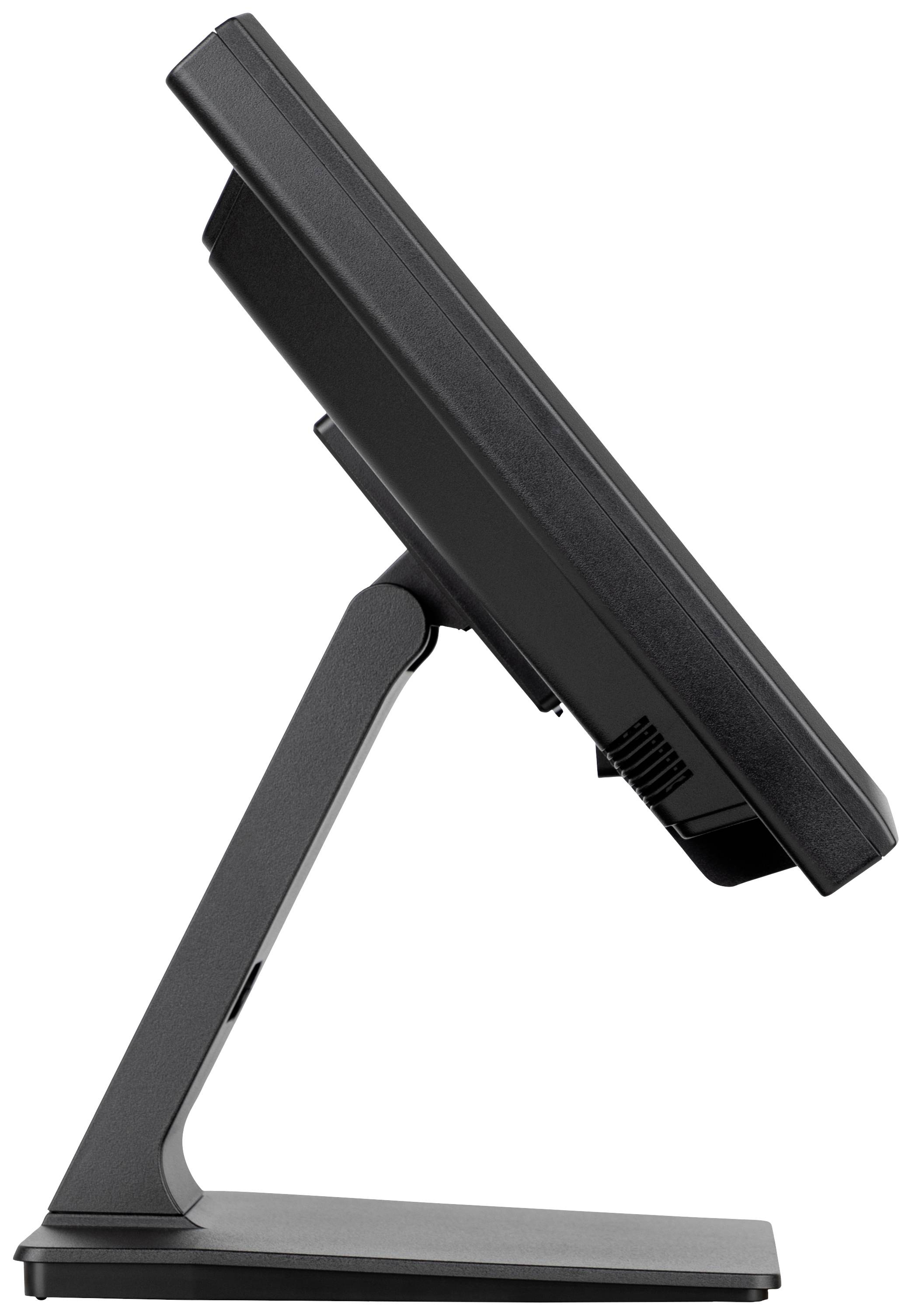

A black computer monitor viewed from the side on a metal stand, slightly tilted forward.

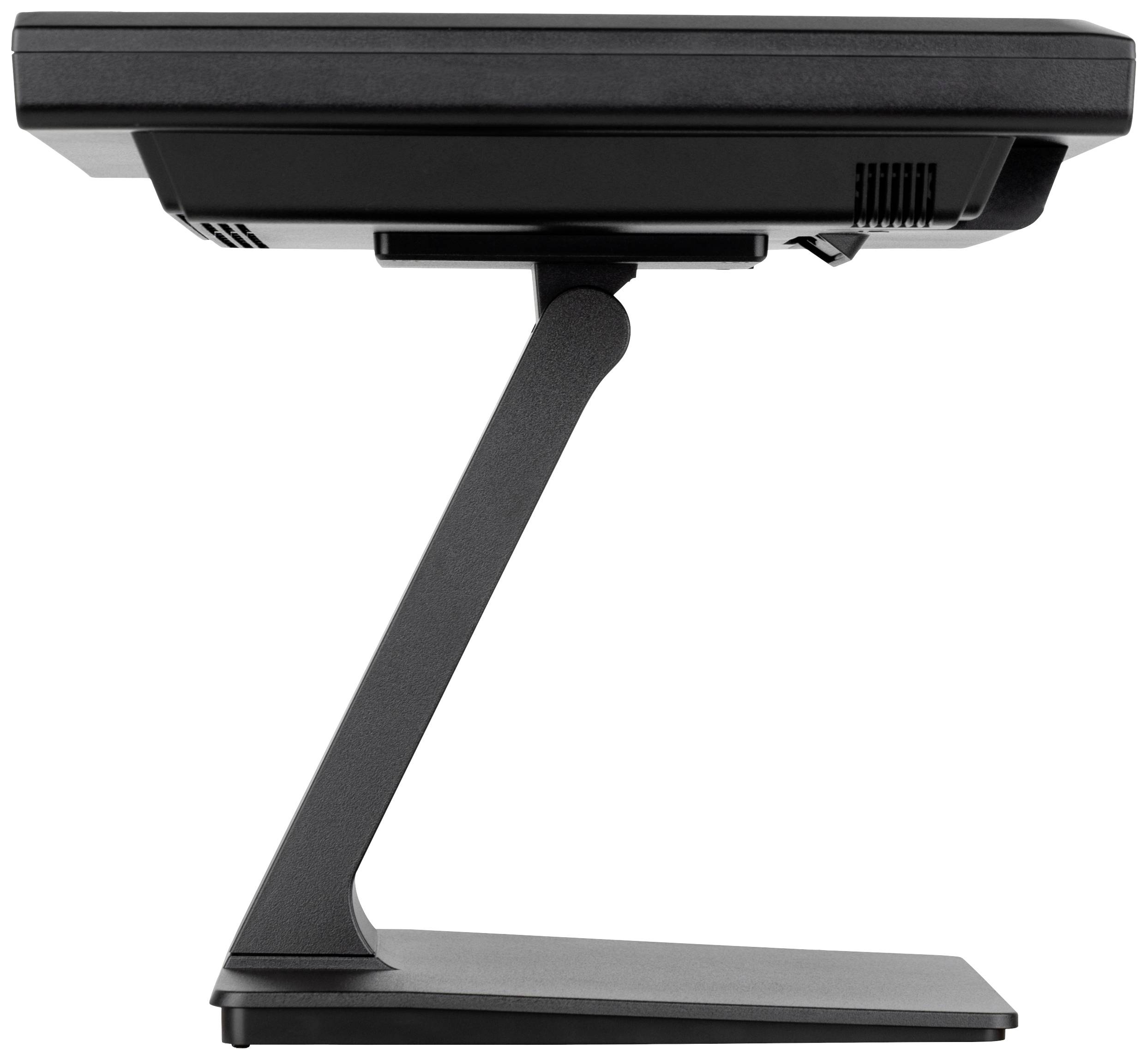

A black monitor viewed from the side on a stand demonstrates its sleek design and adjustable mounting.

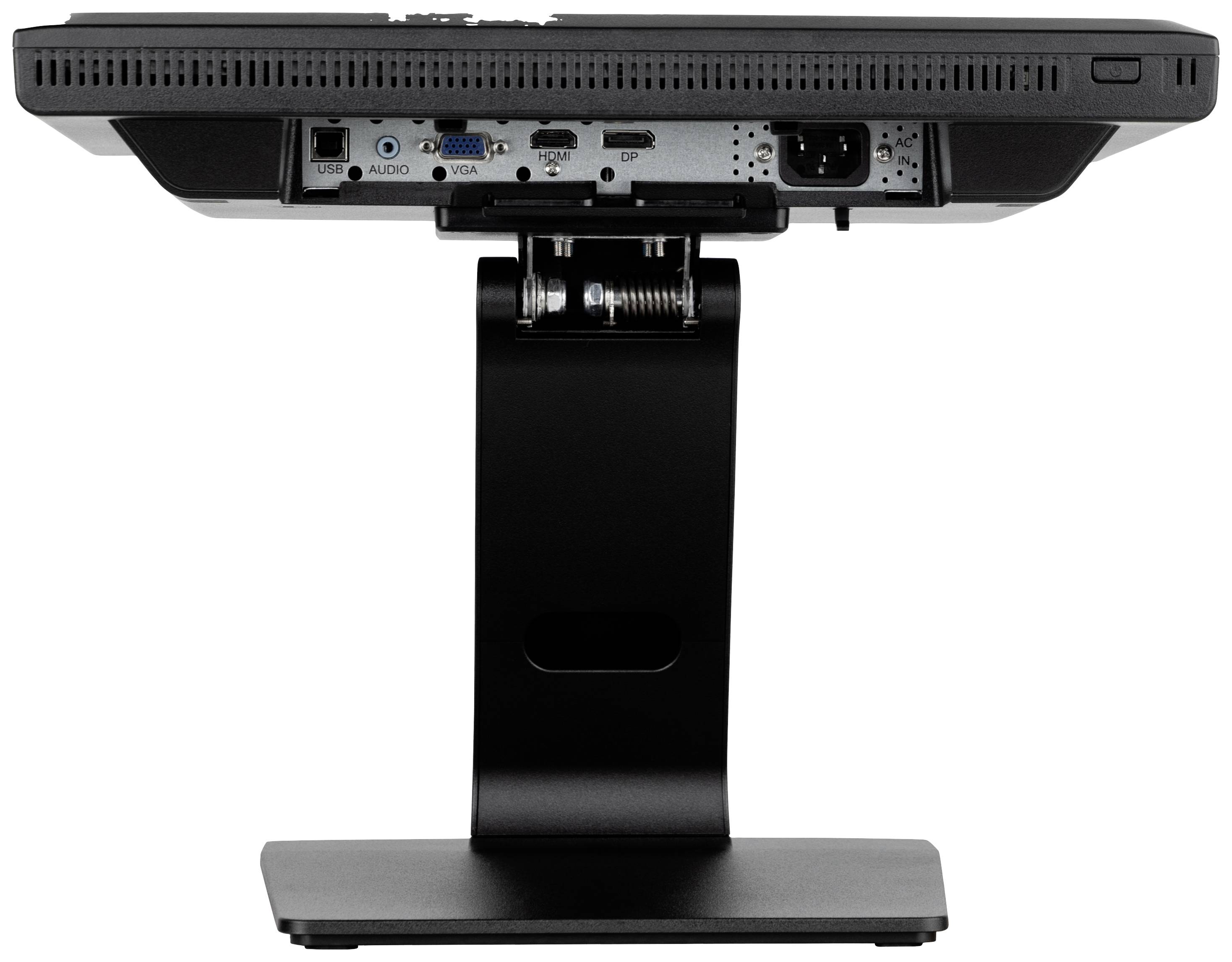

Rear view of a computer monitor showing visible ports: audio, VGA, DVI and power. The monitor is positioned on a sturdy stand.

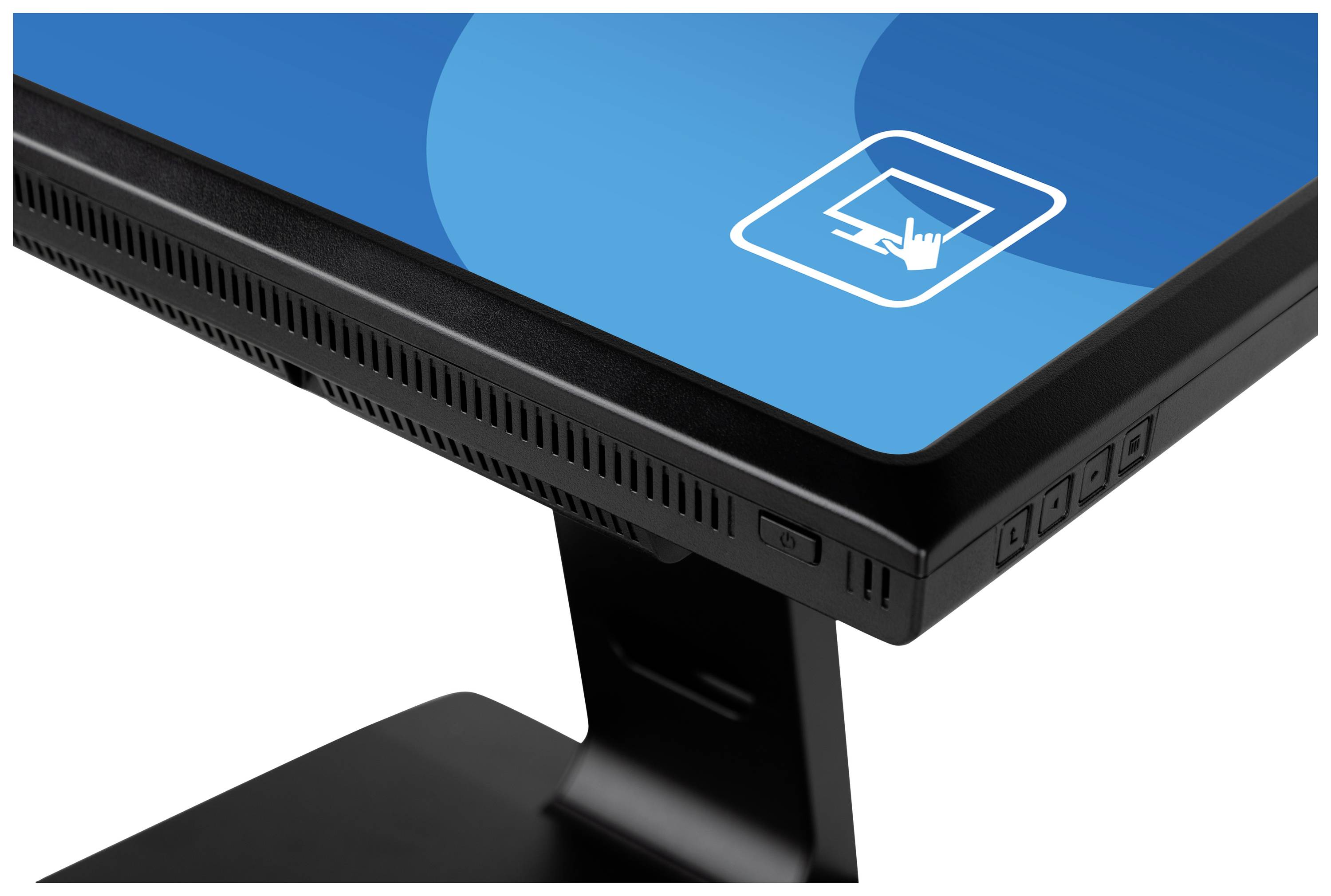

'A screen with a blue user interface and an icon showing a hand tapping on a monitor image.'

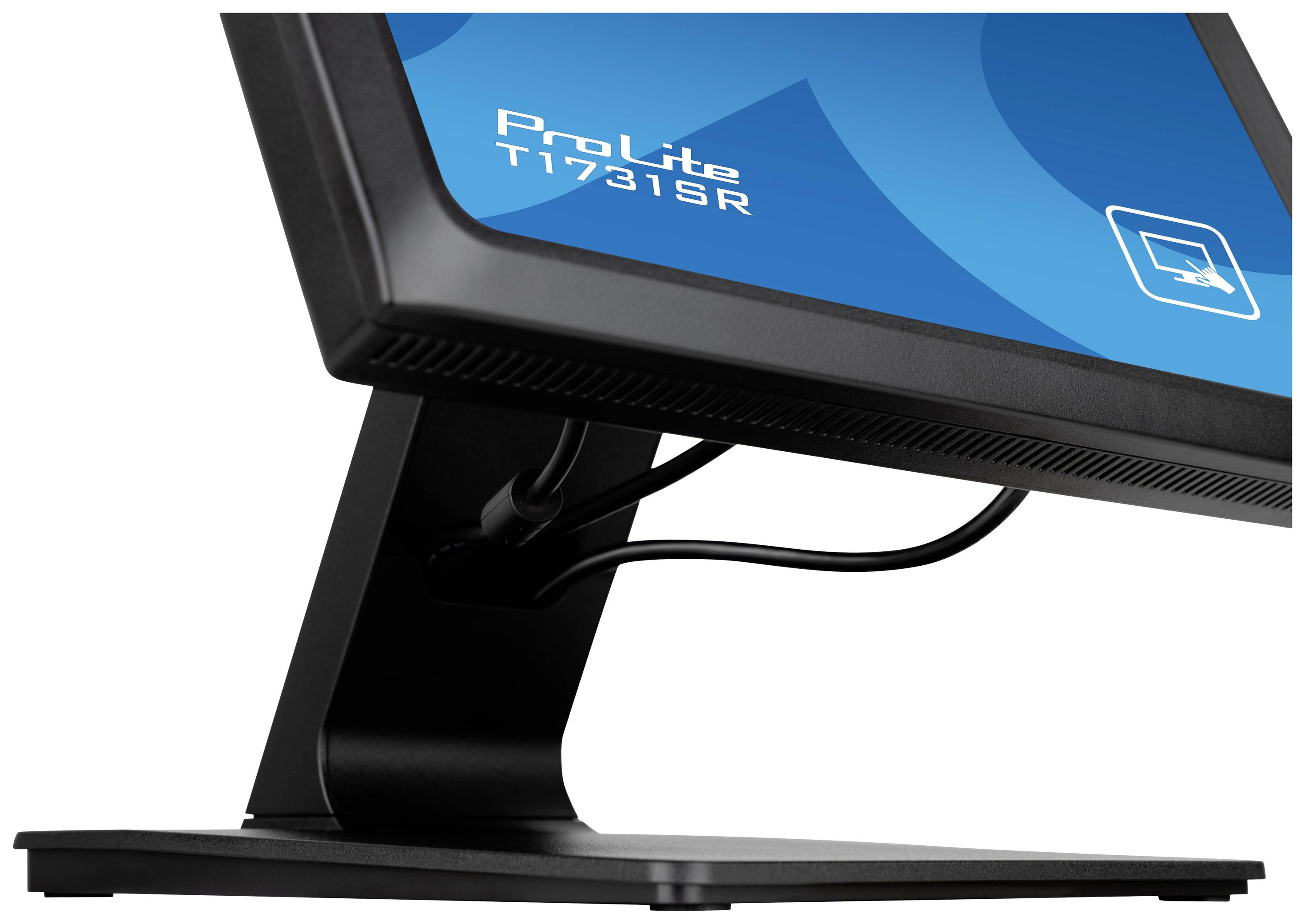

Side view close-up of a black monitor stand with a screen displaying the text 'ProLite T1731SR' against a blue background.

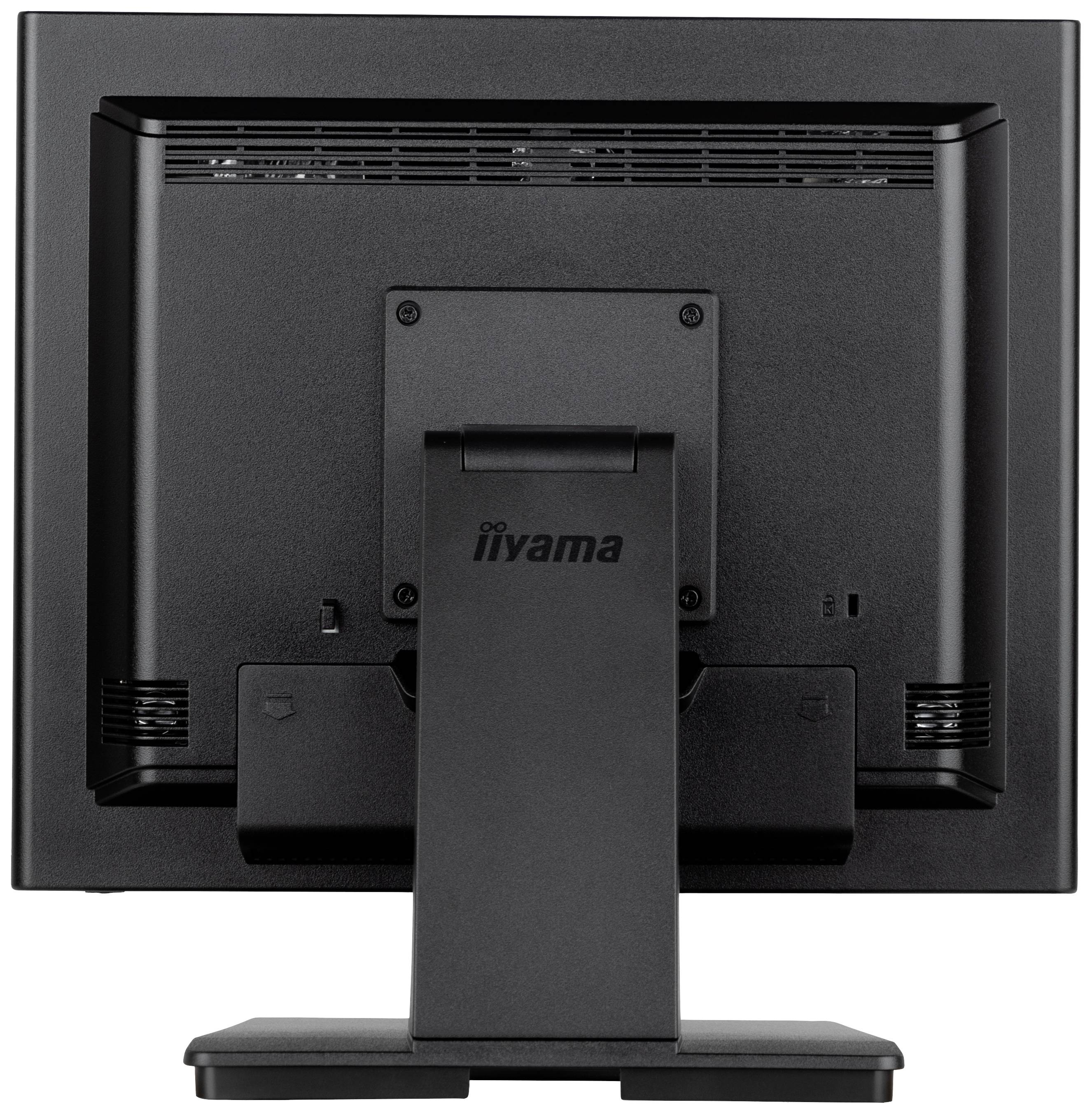

The pictured monitor shows the rear view of a black iiyama screen with a stand, ventilation slots, and various ports.

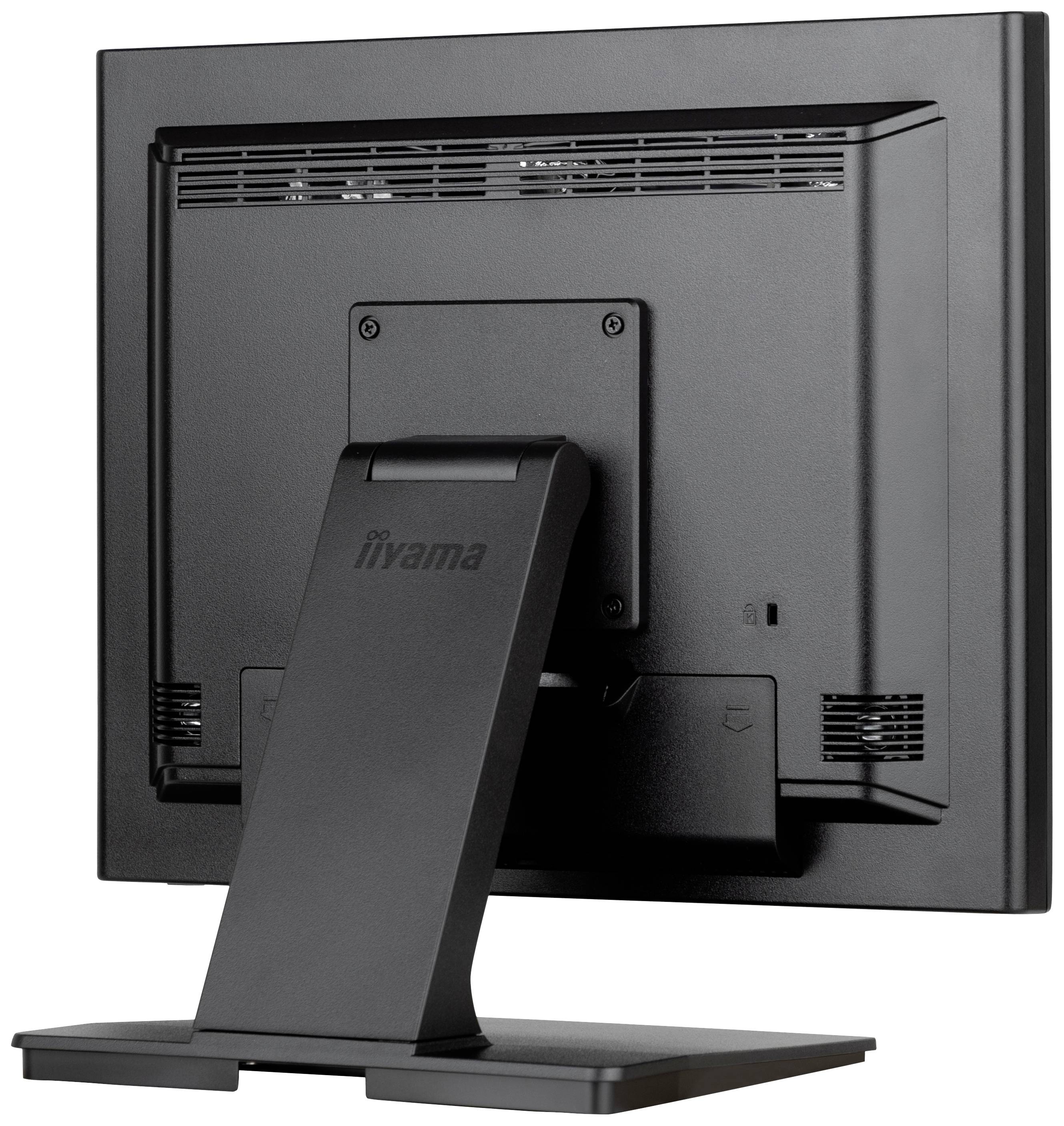

A computer monitor from behind, with a black stand and ventilation slots. An interface suggests a connection cable.

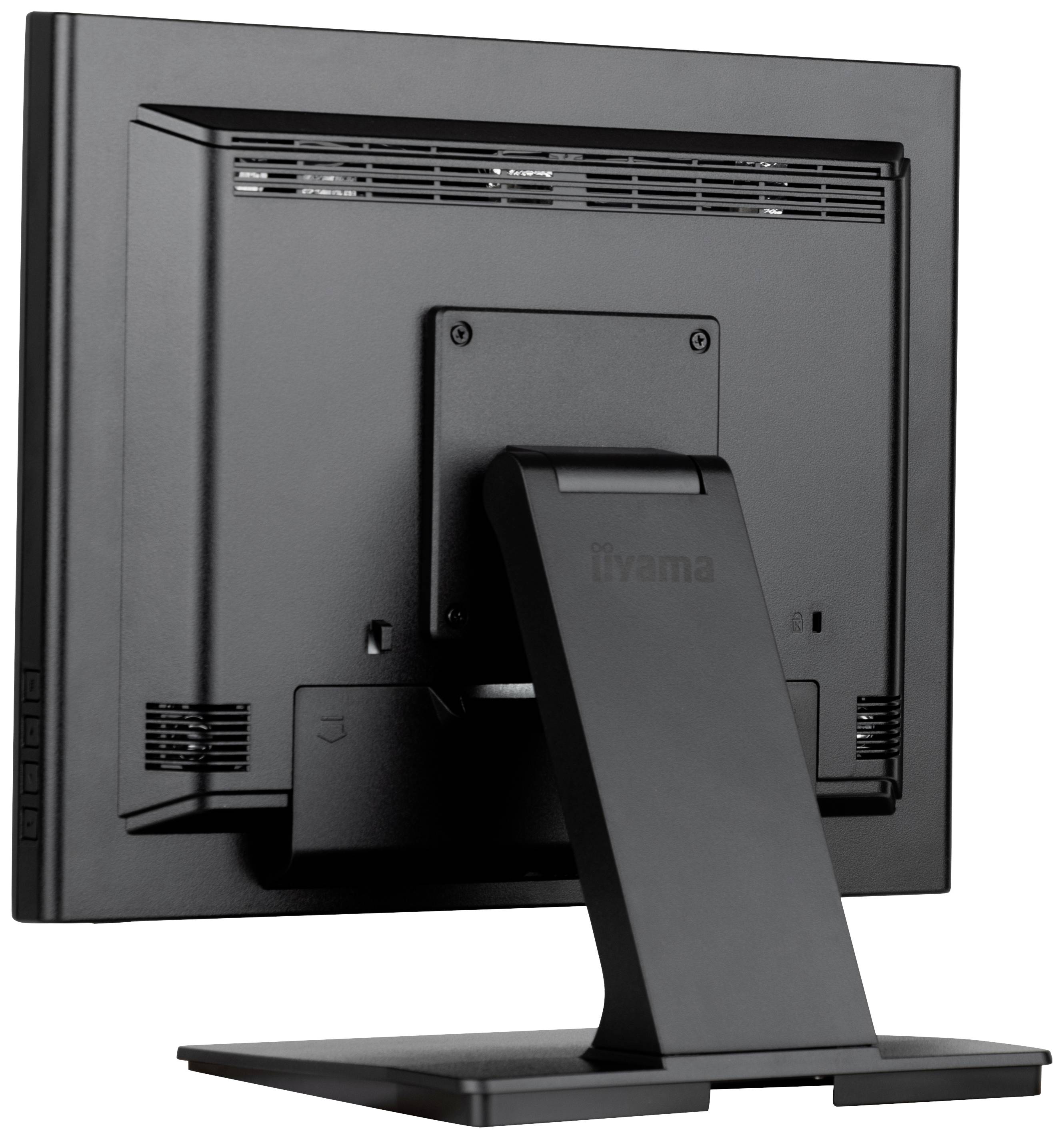

A black computer monitor viewed from behind, showing the stand and ventilation slots at the top. No visible brand identification.

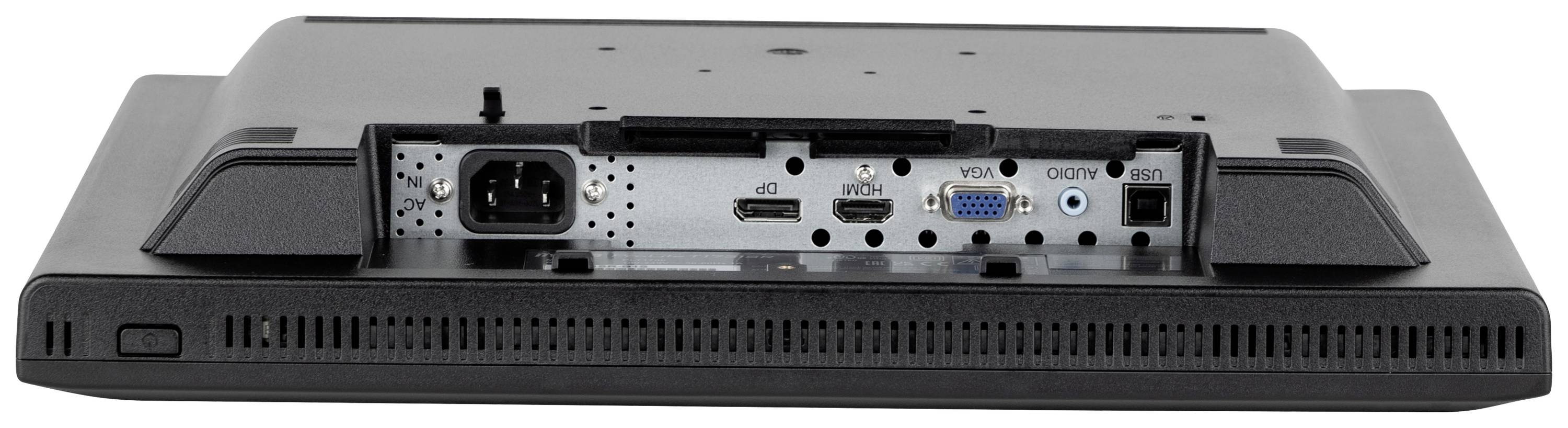

Rear view of a monitor with various ports: power plug, HDMI, DisplayPort, VGA and audio interface.
'Product image of the iiyama ProLite T1731SR-B1S monitor. Shows connection cables: Power, HDMI, DisplayPort, USB, Audio.'
Technical drawing of a monitor with side, front, and rear views. Dimensions and drill holes for VESA mounting are specified.
1/18
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns
Pre-contractual information under the EU Data Act

Highlights & Details

17" resistive touch, 1280 x 1024, speaker

  • Screen size 43.2 cm (17 inch)
  • Energy efficiency rating (calc): E (A - G)
  • Interfaces: HDMI™, DisplayPort, VGA;Response time: 5 ms;Built-in speakers, Tiltable, Touchscreen, VESA Mount 100 x 100 mm

Technical specifications

Product type

Touchscreen

Image format

5:4

Response time

5 ms

Contrast ratio (dyn)

1000 : 1

Static contrast ratio

1000 : 1

Brightness

250 cd/m²

Hor. viewing angle

170°

Vertical viewing angle

160°

Panel technology

TN LCD

Dot pitch

0.264 mm

Wall mounting option

100 x 100 mm VESA standard

Factory colour

Black

Features

Built-in speakers

Tiltable

Touchscreen

VESA Mount 100 x 100 mm

No. of HDMI ports

1 x

No. of VGA ports

1 x

Interfaces

HDMI™

DisplayPort

VGA

No. of DisplayPort

1 x

Width

387 mm

Height

378 mm

Depth

239 mm

Dim

(W x H x D) 387 x 378 x 239 mm

Weight

5.4 kg

Display type

Touch display

Display size

- 23 inch

E (A - G)

Display

43.2 cm (17 inch)

Screen size/position settings

Tilt

Curved monitor

No

Inclination

-5/+90

OSB languages

English

German

French

Italian

Spanish

Japanese

Power supply (details)

AC 100 – 240 V, 50 Hz

Touchscreen (display)

Yes

Resolution (max.)

1280 x 1024 p

Display (cm)

43.2 cm

Screen size diagonal (cm)

43 cm

Screen size diagonal (inches)

17 inch

13 kWh/year

Power consumption (off)

0.3 W

Power consumption (ON)

20 W

Frame rate

80 Hz

Range of uses

Home

Display resolution mode

SXGA

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2904004 Iiyama 17" Resistive Touchscreen EEC: E (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 5 ms HDMI™, DisplayPort, VGA TN LCD

User & Safety Instructions

User & Safety Instructions 2904004 Iiyama 17" Resistive Touchscreen EEC: E (A - G) 43.2 cm (17 inch) 1280 x 1024 p 5:4 5 ms HDMI™, DisplayPort, VGA TN LCD

Description

The ProLite T1731SR-B1S is based on the latest 5-wire resistive touch screens. This technology is the first choice when it comes to a particularly long durability and highest reliability. 5-wire touch screens are made up of multiple layers of glass or Film constructed. The screen has an analogue and digital (HDMI and DisplayPort) input, as well as touch-screen connection via USB. The flexible stand can be positioned at various angles to provide a comfortable and ergonomic user experience, and the integrated cable management system hides all cables and electrical wires to create a clean, cable-free working area. The display stands stably on an adjustable base and can be rotated to 90 degrees. The T1731SR-B1S can be used in a variety of environments, especially recommended for retail, restaurant and industrial use.

TOUCH TECHNOLOGY - RESISTIVE
The 5-wire resistive touch technology has a particularly long durability and is versatile applicable. It is particularly recommended as a cash register system for industrial purposes for machine control or in shops and restaurants.

IP54
The IP Code certification indicates how robust the screen is under extreme conditions. With IP 54, the screen is dust and water splash proof up to a certain degree.

SPEAKERS
Equipped with two high-quality stereo speakers.

VESA
A standard which makes it very easy to attach a wall or a table mount.

This text is machine translated.

Scope of delivery

  • Cable
  • Quick guide.
