Name: Intellinet 713818 19" wall cabinet (W x H x D) 540 x 725 x 450 mm 15 U Grey-white (RAL 7035)
Brand: Intellinet
SKU: 1514613

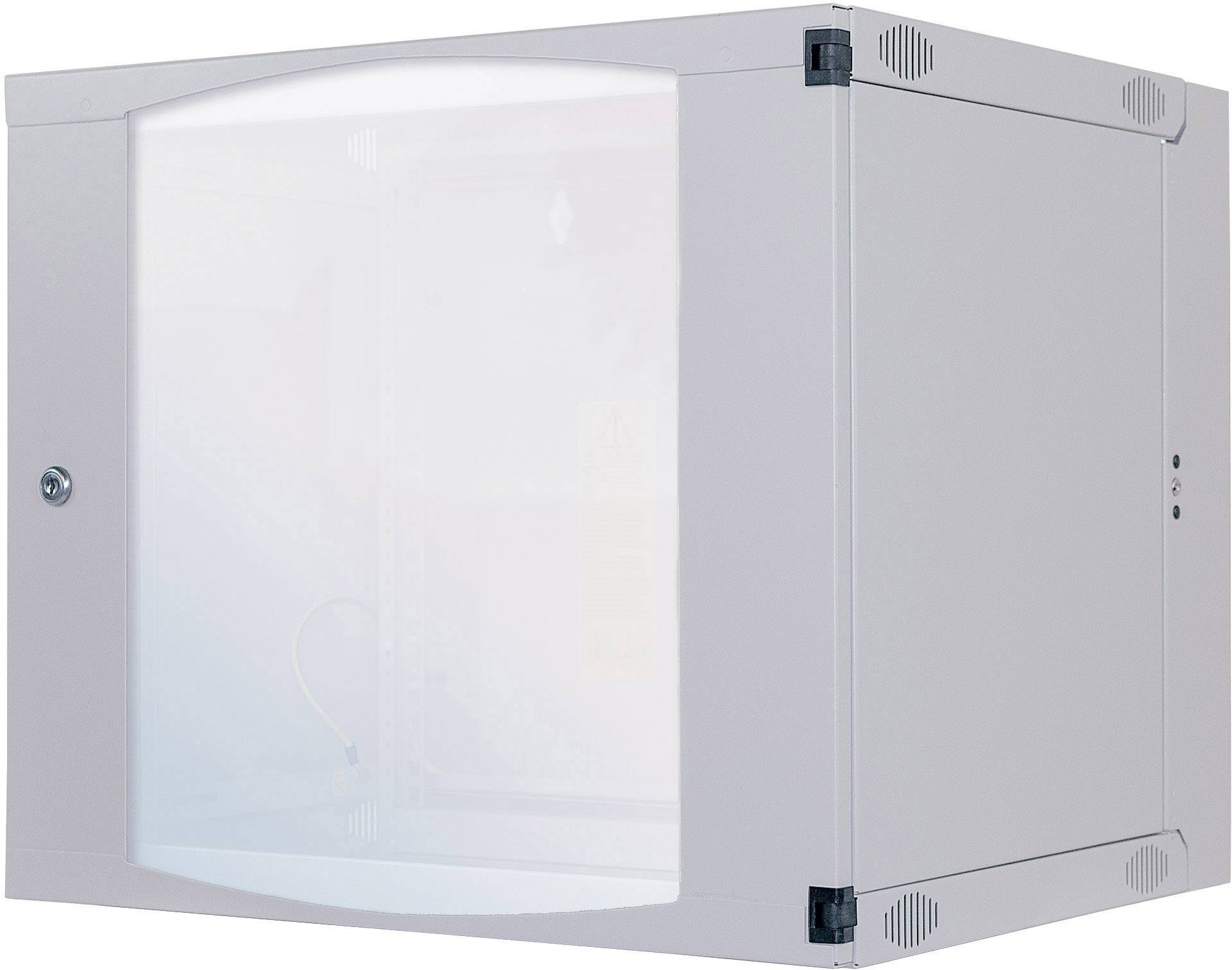

A white, sealable wall-mounted metal enclosure with a transparent front door, suitable for storing technical equipment.

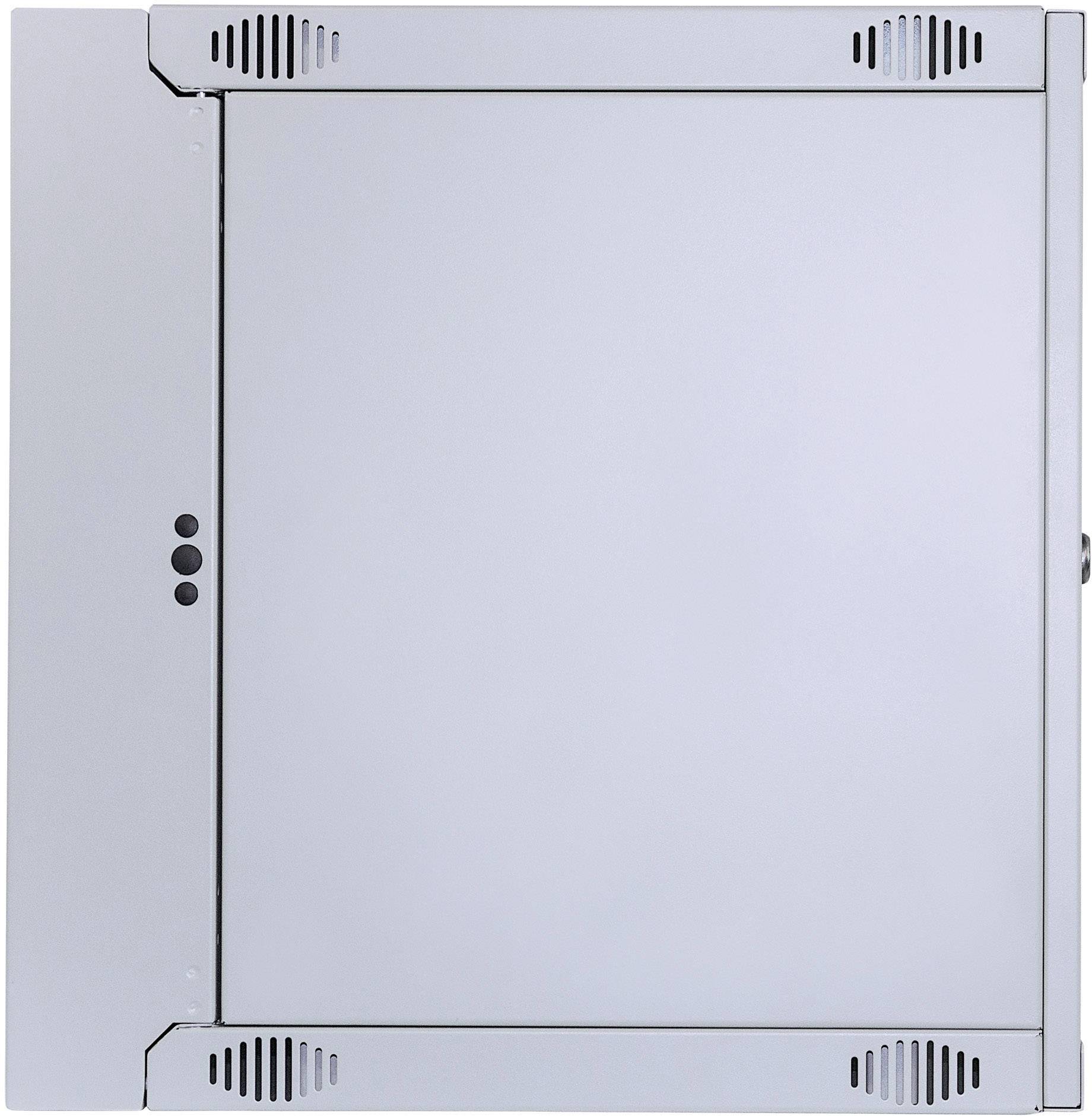

Metal cabinet with ventilation slots and three black buttons on the left.

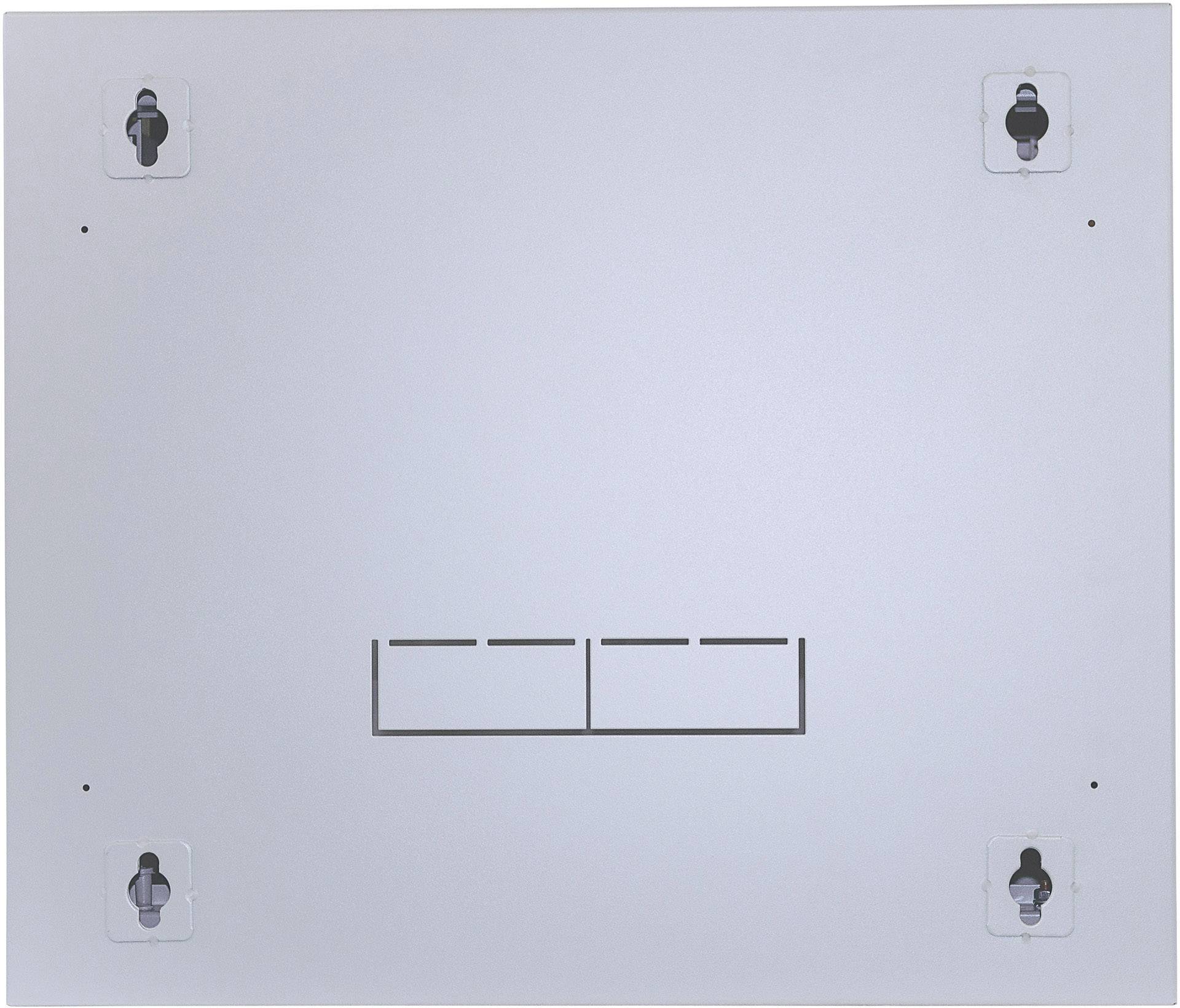

Grey metal plate with four holes at the corners and a rectangular opening in the centre, potentially suitable for mounting.

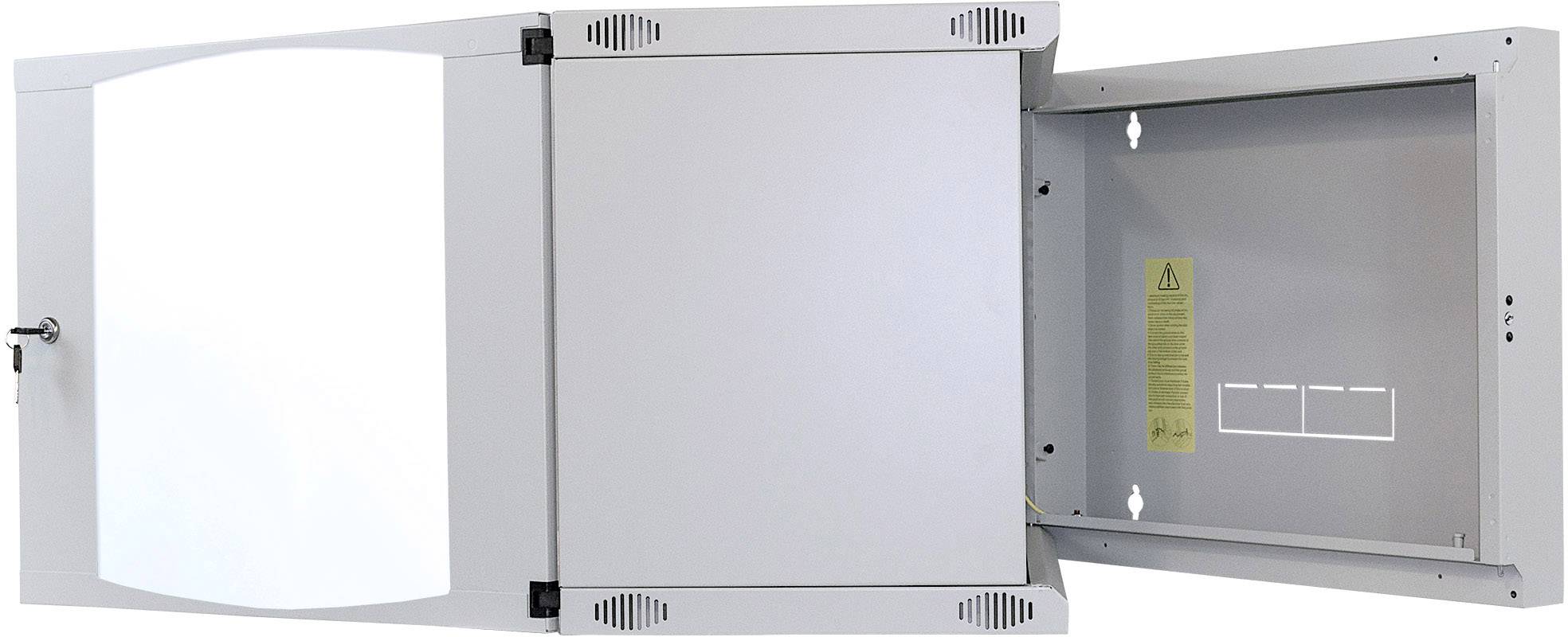

Metal enclosure in Grey with two doors. Left door has a lock, right door is open and reveals an interior compartment.

1/4

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Intellinet 19" Wall distributor with swivel frame 15 HE 450mm (T) flat-pack gray

Safety glass door with 4 mm thickness
Swivel frame for easy access to the back of the cabinet
SPCC kaltgewalzter, galvanised steel frame with up to 1.5 mm thickness
Supplied as a flat-pack

Technical specifications

Product type: 19" wall cabinet

Rack unit: 15 U

Width: 540 mm

Height: 725 mm

Depth: 450 mm

Material: Safety glass
Steel

Dim: (W x H x D) 540 x 725 x 450 mm

Weight: 27 kg

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

Product type description: Rack

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1514613 Intellinet 713818 19" wall cabinet (W x H x D) 540 x 725 x 450 mm 15 U Grey-white (RAL 7035)

Description

The Intellinet wall distributor offer a flexible and comprehensive solution for your network installations. We will be happy to come already during the delivery counter - let yourself be comfortable fully assembled wall distributor or save space and money with the respective flat-pack version.

With the enclosures, you can use besides the particularly compact 10" cabinets from numerous 19" options. From 6 to 20 height units, installation depths of 300 to 600 mm as well as each in black or gray, we offer you suitable for every need. The removable side walls, the lockable, over 180° to open safety glass door and the optional swivel frame make wiring and components exchange especially comfortable.

When we pay attention on top quality materials and workmanship. This includes a spcc kaltgewalzter-steel frame and anti-static powder coating on all sides.

This text is machine translated.
