Isabellenhütte BVS-A-R002-1.0 BVS-A-R002-1.0 SMD resistor 2 mΩ SMD 3920 4 W 1 % 50 ppm/K 1 pc(s)
Product type
SMD resistor
Type
3920
Resistance
2 mΩ
Power rating
4 W
Tolerance ±
1 %
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 3.49 / piece)
€ 34.90
incl. VAT
14-day return policy included
Highlights & Details

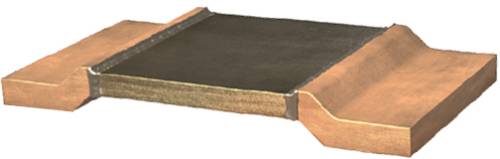

Resistance, metal plate, SMD 3920, 2 mΩ, 4 W, ±1 %, BVS-A-R002-1.0
Our service for you
Technical specifications

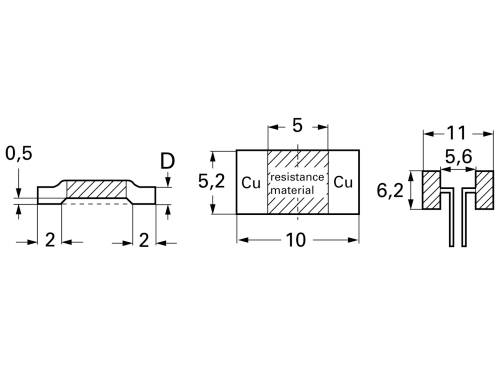

- Design SMD 3920
- Height: 0.5 mm
- Length: 10 mm
- Weight: 0.00033 kg
- Power: 4 W
- max. temperature: 170 °C
- min Temperature -65 °C.
- Ohm resistance 2 mΩ
- Technology: Metal plate
- Temperature coefficient ±50 ppm/K
- Tolerance: ± 1 %
- Product type
SMD resistor
- Type
SMD
- Type
3920
- Resistance
2 mΩ
- Power rating
4 W
- Tolerance ±
1 %
- Temperature coefficient
50 ppm/K
- Length
10 mm
- Height
0.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
BVS-A-R002-1.0
Documents & Downloads
Datasheet
Datasheet 3208095 Isabellenhütte BVS-A-R002-1.0 BVS-A-R002-1.0 SMD resistor 2 mΩ SMD 3920 4 W 1 % 50 ppm/K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208095 Isabellenhütte BVS-A-R002-1.0 BVS-A-R002-1.0 SMD resistor 2 mΩ SMD 3920 4 W 1 % 50 ppm/K 1 pc(s)
Description
SMD-precision resistors design 3920 2.5 to 5.0 watt series ISA-WELD type Isabellenhütte BVS. Can be used as very low ohm and low-inductive two-wire resistance, four-wire connection to the solder pad. The resistor is specifically designed for currents up to 160 A (0.2 m ohm) With tolerance 1.0% type BVS.
This text is machine translated.
This text is machine translated.
