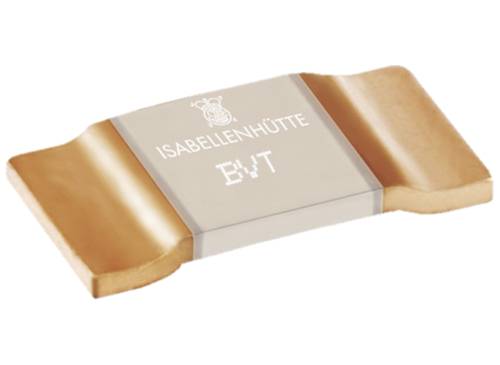

Isabellenhütte BVT-M-R0005-1.0 BVT-M-R0005-1.0 SMD resistor 0.5 mΩ SMD 2512 6 W 1 % 115 ppm/K 1 pc(s)
Product type
SMD resistor
Type
2512
Resistance
0.5 mΩ
Power rating
6 W
Tolerance ±
1 %
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 3.49 / piece)
€ 34.90
incl. VAT
14-day return policy included
Highlights & Details
Resistance, metal plate, SMD 2512 (6330), 500 µΩ, 6 W, ±1 %, BVT-M-R0005-1.0
Our service for you
Technical specifications
- Type SMD 2512 (6330)
- Width 3 mm
- Height: 0.35 mm
- Length: 6.35 mm.
- Weight: 0.00003 kg
- Output: 6 W
- max. temperature: 170 °C
- min Temperature -65 °C.
- Ohm resistance 500 µΩ
- Technology: Metal plate
- Temperature coefficient ±115 ppm/K
- Tolerance: ± 1 %
- Product type
SMD resistor
- Type
SMD
- Type
2512
- Resistance
0.5 mΩ
- Power rating
6 W
- Tolerance ±
1 %
- Temperature coefficient
115 ppm/K
- Length
6.35 mm
- Width
3 mm
- Height
0.35 mm
- Content
1 pc(s)
- Dim
(L x W x H) 6.35 x 3 x 0.35 mm
- RoHS-compliant
Yes
- Type
BVT-M-R0005-1.0
Documents & Downloads
Datasheet
Datasheet 3208105 Isabellenhütte BVT-M-R0005-1.0 BVT-M-R0005-1.0 SMD resistor 0.5 mΩ SMD 2512 6 W 1 % 115 ppm/K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208105 Isabellenhütte BVT-M-R0005-1.0 BVT-M-R0005-1.0 SMD resistor 0.5 mΩ SMD 2512 6 W 1 % 115 ppm/K 1 pc(s)
Description
SMD precision resistors design 2512 1.5 to 3.0 watt series ISA-WELD type Isabellenhütte BVT. Can be used as very low ohm and low-inductive two-wire resistor, specially designed for currents up to 77 A (0.5 m ohm) With tolerance 1.0% type BVT.
This text is machine translated.
This text is machine translated.
