Isabellenhütte SMP-R005-1.0 SMP-R005-1.0 SMD resistor 5 mΩ SMD 2010 2 W 1 % 50 ppm/K 1 pc(s)
Product type
SMD resistor
Type
2010
Resistance
5 mΩ
Power rating
2 W
Tolerance ±
1 %
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3.49 / piece)
€ 3.49
incl. VAT
14-day return policy included
Highlights & Details
Resistance, metal foil, SMD 2010 (5025), 5 mΩ, 2 W, ±1 %, SMP-R005-1.0
Our service for you
Technical specifications

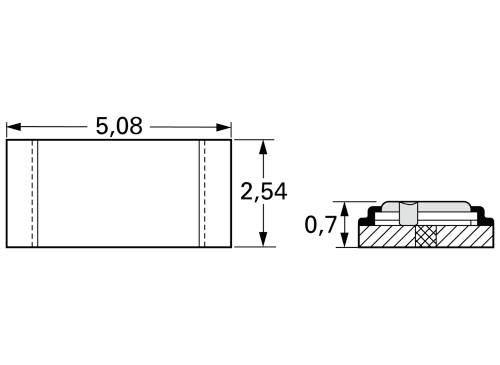

- Type SMD 2010 (5025)
- Width: 2.5 mm
- Height: 0.7 mm
- Length: 5.08 mm.
- Weight: 0.00008 kg
- Output: 2 W
- max. temperature: 170 °C
- min Temperature -55 °C.
- Ohm resistance 5 mΩ
- Technology: Metal foil
- Temperature coefficient ±50 ppm/K
- Tolerance: ± 1 %
- Product type
SMD resistor
- Type
SMD
- Type
2010
- Resistance
5 mΩ
- Power rating
2 W
- Tolerance ±
1 %
- Temperature coefficient
50 ppm/K
- Length
5.08 mm
- Width
2.5 mm
- Height
0.7 mm
- Content
1 pc(s)
- Dim
(L x W x H) 5.08 x 2.5 x 0.7 mm
- RoHS-compliant
Yes
- Type
SMP-R005-1.0
Documents & Downloads
Datasheet
Datasheet 3208099 Isabellenhütte SMP-R005-1.0 SMP-R005-1.0 SMD resistor 5 mΩ SMD 2010 2 W 1 % 50 ppm/K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208099 Isabellenhütte SMP-R005-1.0 SMP-R005-1.0 SMD resistor 5 mΩ SMD 2010 2 W 1 % 50 ppm/K 1 pc(s)
Description

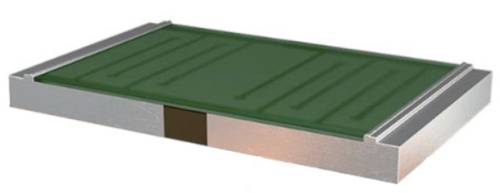

SMD precision resistors design 2010 2.0 Watt tolerance 1.0 % series ISA PLAN type Isabellenhütte SMP. Can be used as measurement resistors for power hybrids, power modules, switched-mode power supplies, etc.
This text is machine translated.
This text is machine translated.
