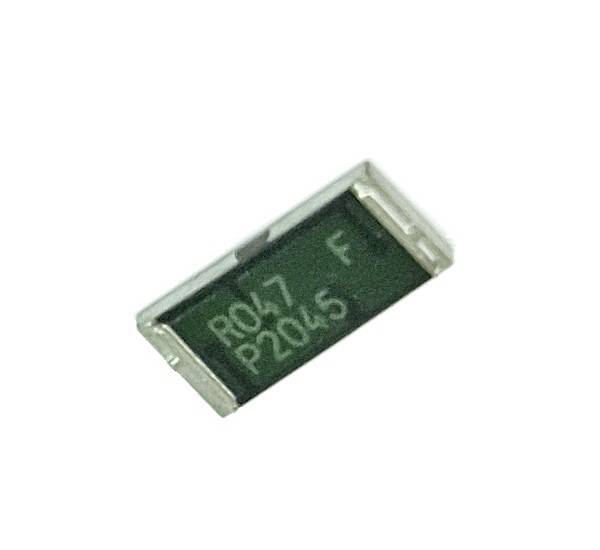

Image similar
Isabellenhütte SMS-R033-1.0 SMS-R033-1.0 SMD resistor 33 mΩ SMD 2512 3 W 1 % 50 ppm/K 1 pc(s)
Product type
SMD resistor
Type
2512
Resistance
33 mΩ
Power rating
3 W
Tolerance ±
1 %
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 4.29 / piece)
€ 4.29
incl. VAT
Only 9 Piece(s) available
Highlights & Details
Resistance, metal foil, SMD 2512 (6330), 33 mΩ, 3 W, ±1%, SMS-R033-1.0
Our service for you

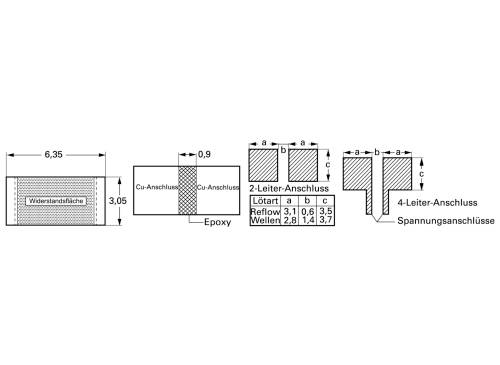

Technical specifications
- Type SMD 2512 (6330)
- Width 3 mm
- Height: 0.8 mm
- Length: 6.35 mm.
- Weight: 0.00022 kg
- Output: 3 W
- max. temperature: 170 °C
- min Temperature -65 °C.
- Ohm resistance 33 mΩ
- Technology: Metal foil
- Temperature coefficient ±50 ppm/K
- Tolerance: ± 1 %
- Product type
SMD resistor
- Type
SMD
- Type
2512
- Resistance
33 mΩ
- Power rating
3 W
- Tolerance ±
1 %
- Temperature coefficient
50 ppm/K
- Length
6.35 mm
- Width
3 mm
- Height
0.8 mm
- Content
1 pc(s)
- Dim
(L x W x H) 6.35 x 3 x 0.8 mm
- RoHS-compliant
Yes
- Type
SMS-R033-1.0
Documents & Downloads
Datasheet
Datasheet 3208044 Isabellenhütte SMS-R033-1.0 SMS-R033-1.0 SMD resistor 33 mΩ SMD 2512 3 W 1 % 50 ppm/K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208044 Isabellenhütte SMS-R033-1.0 SMS-R033-1.0 SMD resistor 33 mΩ SMD 2512 3 W 1 % 50 ppm/K 1 pc(s)
Description
SMD precision resistors design 2512 3.0 Watt tolerance 1.0 % series ISA PLAN type Isabellenhütte SMS. Can be used as a two-wire resistor, four-wire connection to the solder pad. Ideal suitable for switched applications with low inductance
This text is machine translated.
This text is machine translated.
