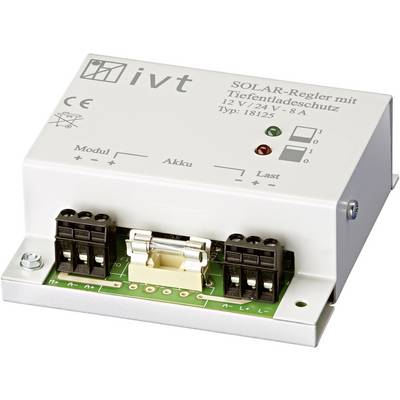

IVT Shunt Charge controller PWM 12 V, 24 V 8 A
EAN:
Part number:
Item no:
Number
Total (€ 28.99 / piece)
€ 37.99
-24 %
€ 28.99
incl. VAT
Only 8 Piece(s) available
Highlights & Details
IVT Shunt Charge controller PWM 12 V, 24 V 8 A
- With deep discharge protection
Technical specifications
- Charging circuit voltage 13.7/27.4 V
- Trickle charge 13.7/27.4 V
- Gassing relaxation level 14.5/29 V
- Product type
Charge controller
- Nominal voltage
12 V
24 V
- Module power (max.)
180 Wp
- Temperature range
-25 - +50 °C
- Charging current (max.)
8 A
- Own power consumption
2 mA
- Matching rechargeable battery
SLA
Lead-acid
Lead acid membrane
- Control type
PWM
- Dim
(W x H x D) 95 x 95 x 35 mm
- Weight
240 g
- Current load
8 A
- Module load (max.)
8 A
- Width
95 mm
- Height
95 mm
- Depth
35 mm
- Cable cross section
2.5 mm²
- Max. load current
8 A
- Nominal voltage (details)
12/24 V
- Control type
Shunt
- Power consumption
2 mA
- Reading range
Noise level: 14.5/29 dB
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 110864 IVT Shunt Charge controller PWM 12 V, 24 V 8 A
Information
Information 110864 IVT Shunt Charge controller PWM 12 V, 24 V 8 A
Description
pulse-width modulated shunt-controller for easy charging.
Features
- Integrated temperature sensor
- Automatically switches between 12/24 V
- With deep discharge protection
- Basis of control: Shunt
- Temperature adapter
Scope of delivery
- Solar charge regulator
- User manual.
