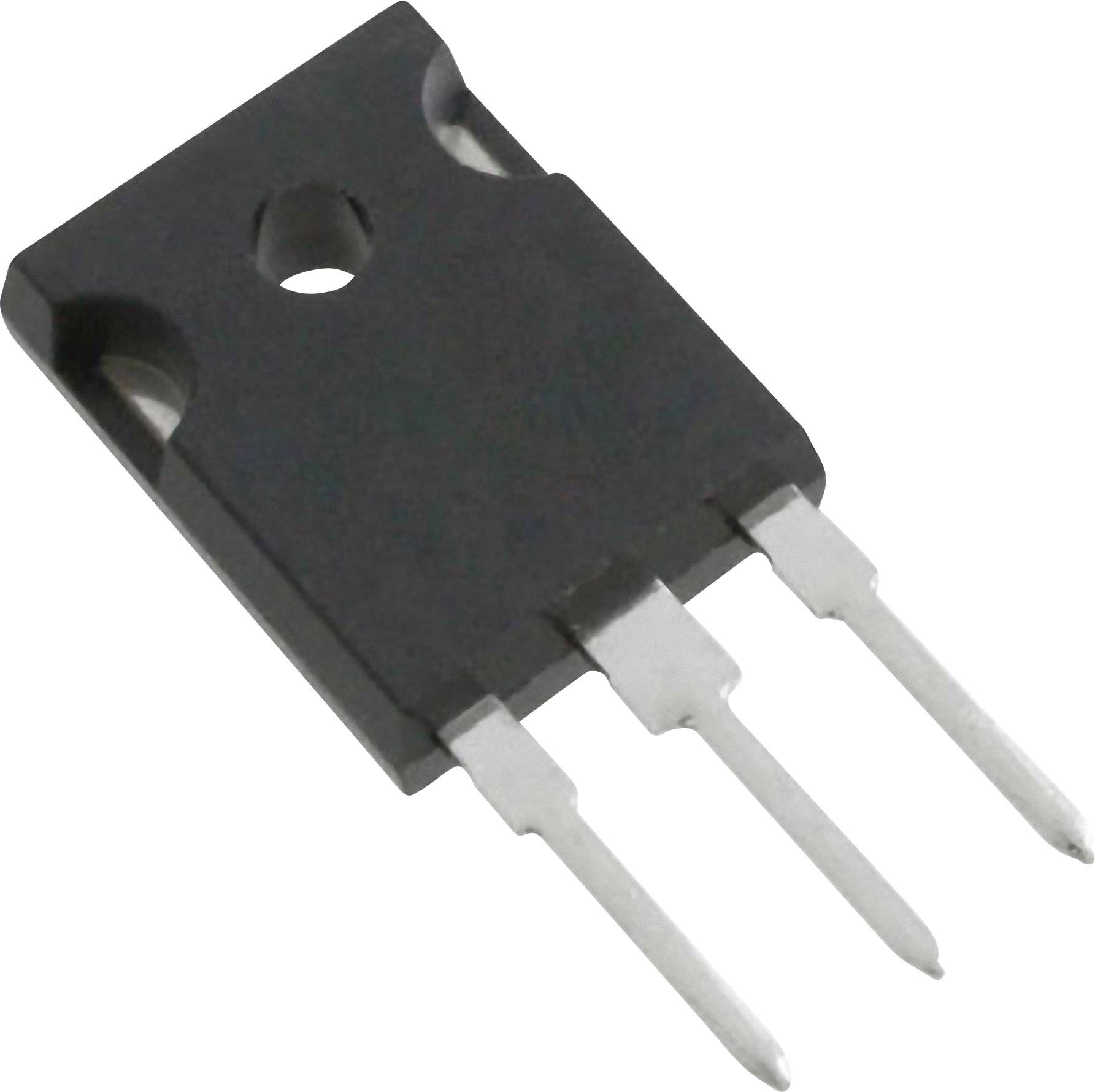

Image similar
IXYS IXGH30N60C3 IGBT TO 247AD single Standard 600 V
EAN:
Part number:
Item no:
Enclosure
TO 247AD
Collector current
60 A
Power (max) P(TOT)
220 W
Mounting type
Through-hole
Product type
IGBT
Datasheet (PDF)
169 Piece(s)
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€
Technical specifications
- Type
IXGH30N60C3
- Enclosure
TO 247AD
- Manufacturer
IXYS
- Manuf. code
IXY
- Configuration
single
- Collector emitter reverse voltage U(CES)
600 V
- Collector current
60 A
- I(CM)
150 A
- Collector-emitter saturation voltage (max.)
3 V
- Power (max) P(TOT)
220 W
- Input type
Standard
- On delay (t(d)(on)
16 ns
- Off delay t(d)(off)(2)
42 ns
- Collector cutoff current
15 µA
- Input capacitance
915 pF
- Q(G)
38 nC
- Series
GenX3
- Type
PT
- Mounting type
Through-hole
- RoHS-compliant
- Product type
IGBT
Documents & Downloads
Datasheet
Datasheet 160812 IXYS IXGH30N60C3 IGBT TO 247AD single Standard 600 V
