Jonsbo D31 Microtower PC casing Black

A black PC case being examined. It is clean with a clear side window, showing the interior and front bottom connections.

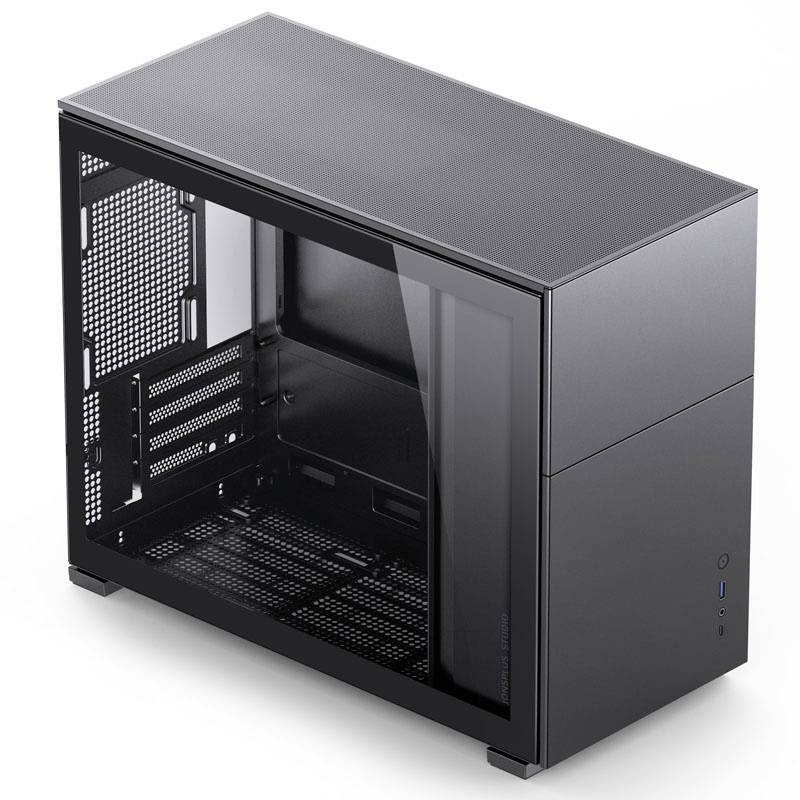

A black computer case with a smooth surface and a transparent side panel that reveals the internal components.

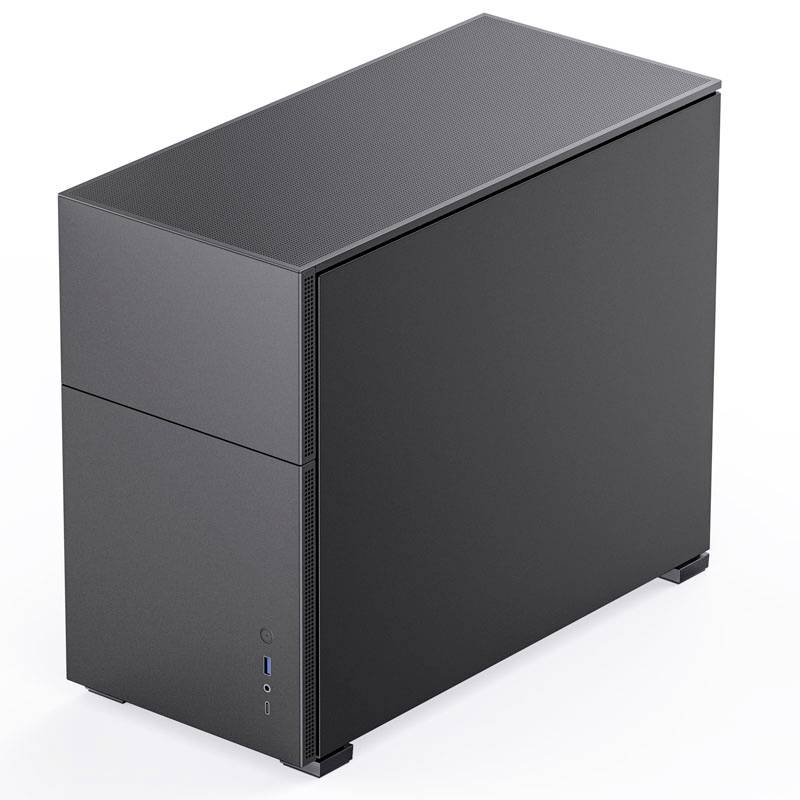

A black, minimalist computer case with a rectangular shape and two USB ports located on the bottom left at the front.
A minimalist, black computer case made of metal and glass, front and rear views. Ventilation and ports are visible on the rear side.

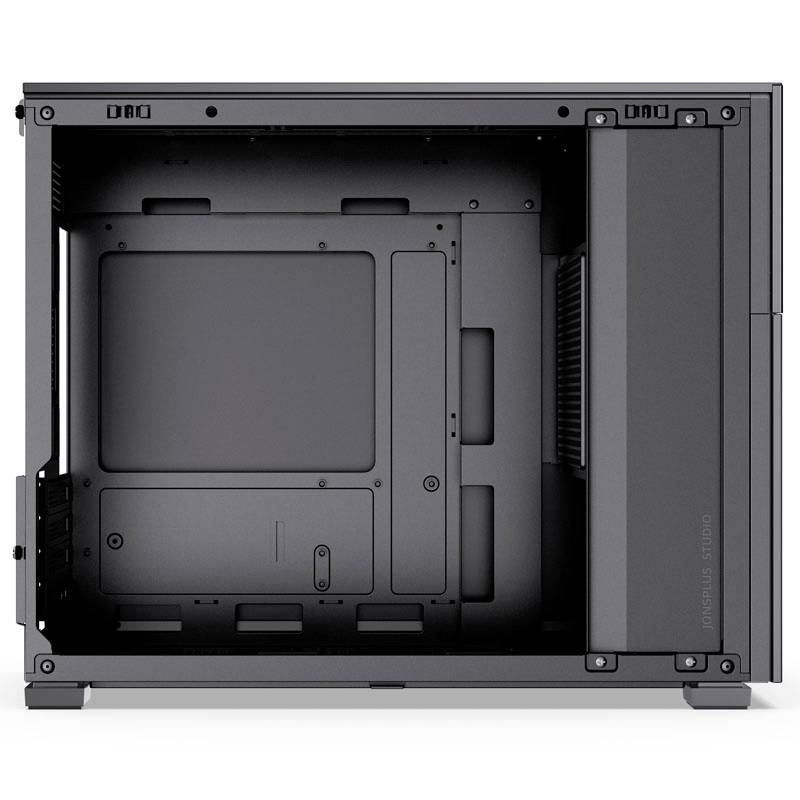

The image shows the interior of an empty computer case. It provides space for hardware components such as the motherboard and drives.

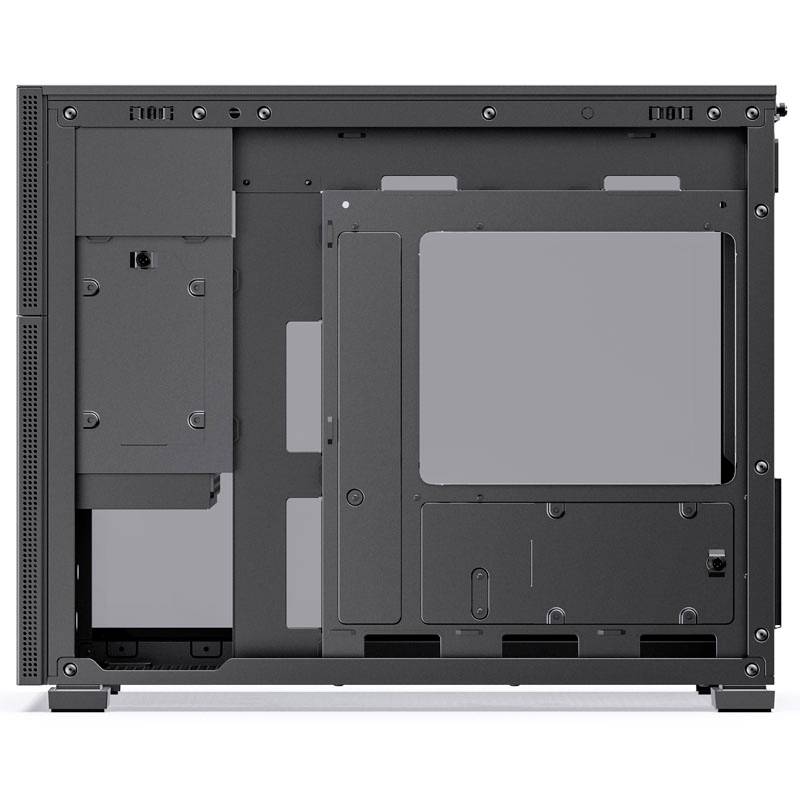

A black metal computer case, empty and ready for hardware installation.

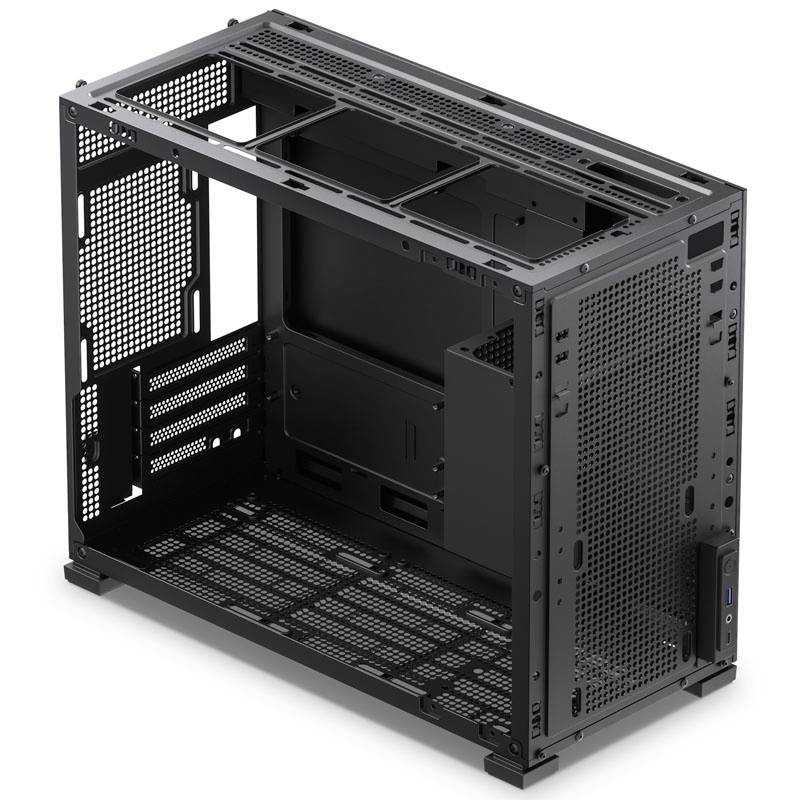

Black PC case without components, showing the side panels and interior space for mounting hardware components.
Dismantled computer case: Main chassis in the centre, surrounded by removed side panels, top and bottom sections.

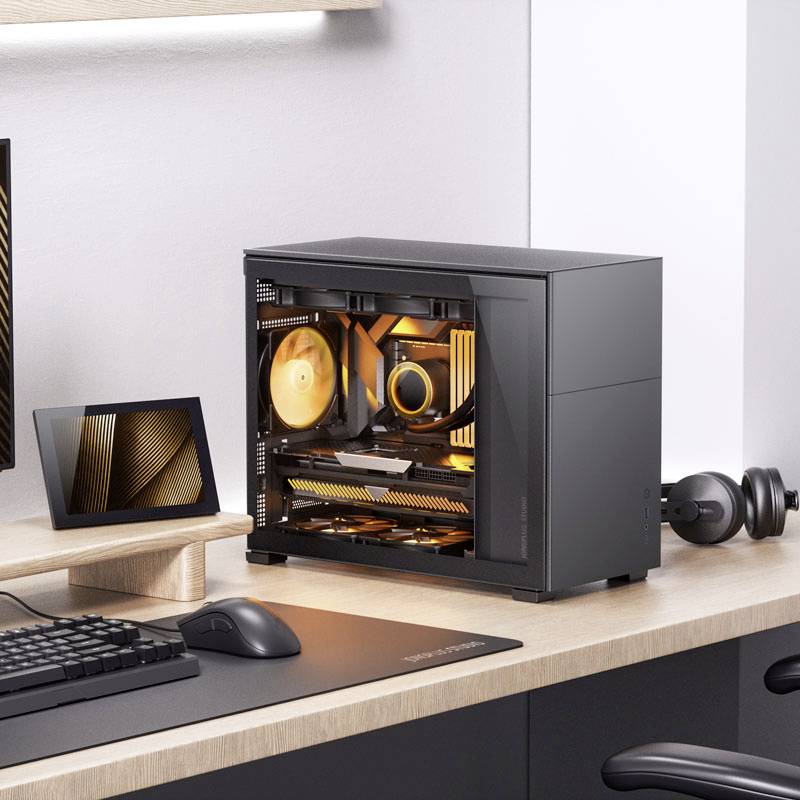

A modern PC with illuminated fans sits on a desk next to a monitor. The scene depicts a minimalist workspace.
1/9
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 61.99 / piece)
€ 61.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Jonsbo D31 Microtower PC casing

  • Elegant and versatile mATX casing
  • Closed front for silent builds
  • Side made of tempered glass
  • Up to 8 fans and 3 radiators possible
  • For GPUs with max. length 400 mm
  • Adjustable power supply for optimum floor plan

Technical specifications

  • Material: Plastic, tempered glass, steel
  • Form factor: Micro-ATX, DTX, mini-ITX
  • Total fans possible: Front: 1x 120 mm, cover: 3x 120 / 2x 140 mm, base: 3x 120 / 2x 140 mm, rear: 1x 120 mm, of which pre-installed: None
  • Radiator-Mounts: Cover: 1x max. 280 / 360 mm, Base: 1x max. 360 mm, rear side: 1x max. 120 mm
  • Drive bays: 2 x 2.5 inch (rear panel of mainboard tray), 1 x 3.5 inch (front of floor)
  • Extension slots 4
  • I/O panel: 1x USB 3.1 (type C, USB 3.2 Gen 2, max. 10 Gbps), 1x USB 3.0 (type A, USB 3.2 Gen 1, max. 5 Gbps), 1x 3.5 mm jack (4-pin, TRRS, for microphone/headphones), 1x Power / reset
  • Maximum graphics card length: 330 to 400 mm (depending on the position and size of the power supply)
  • Maximum CPU-cooler height 168 mm
  • Power supply: ATX, max. 100 - 220 mm long
Product type

PC casing

Case type

Microtower

Factory colour

Black

Interfaces (front)

Audio line in

Audio line out

6.4 cm (2.5") internal slots

2

8.9 cm (3.5") internal slots

1

Width

205 mm

Height

363 mm

Depth

452 mm

Weight

5900 g

Form factor

Micro-ATX

Mini-ITX

No. of USB type A 3.0 ports

1 x

No. of USB 3.0 ports

1 x

Wireless charging

No

Dim

(W x H x D) 205 x 363 x 452 mm

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2876718 Jonsbo D31 Microtower PC casing Black

Description

Elegant and versatile mATX casing
Closed front for silent builds

This text is machine translated.

Features

  • Compact and stylish casing for Micro ATX mainboards
  • Closed front for silent builds, a side panel made of tempered glass
  • Designed for vertical air flow with up to eight possible fans
  • Vertically adjustable power supply for longer graphics cards
  • GPUs must be at least 330 mm long, at most 400 mm long
  • Space for up to two 360 mm radiators simultaneously
