Jonsbo D31 Microtower PC casing White
EAN:
Part number:
Item no:
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
Only 3 Piece(s) available
Jonsbo D31 Microtower PC casing
Highlights & Details
- Compact and stylish casing for Micro ATX mainboards
- Closed front for silent builds, a side panel made of tempered glass
- Designed for vertical air flow with up to eight possible fans
- Vertically adjustable power supply for longer graphics cards
- GPUs must be at least 330 mm long, at most 400 mm long
- Space for up to two 360 mm radiators simultaneously
Technical specifications
- Material: Plastic, tempered glass, steel
- Total fans possible: Front: 1x 120 mm, cover: 3x 120 / 2x 140 mm, floor: 3x 120 / 2x 140 mm, back: 1x 120 mm
- Fans (pre-installed): None
- Radiator-Mounts: Cover: 1x max. 280 / 360 mm, Base: 1x max. 360 mm, rear side: 1x max. 120 mm
- Drive bays: 2 x 2.5 inch (rear panel of mainboard tray), 1 x 3.5 inch (front of floor)
- Extension slots 4
- I/O panel: 1x USB 3.1 (type C, USB 3.2 Gen 2, max. 10 Gbps), 1x USB 3.0 (type A, USB 3.2 Gen 1, max. 5 Gbps), 1x 3.5 mm jack (4-pin, TRRS, for microphone/headphones), 1x Power / reset
- Maximum graphics card length: 330 to 400 mm (depending on the position and size of the power supply)
- Maximum CPU-cooler height 168 mm
- Power supply: ATX, max. 100 - 220 mm long
- Product type
PC casing
- Case type
Microtower
- Factory colour
White
- Interfaces (front)
Headphone/mic combo jack (3.5 mm)
USB A (USB 3.2 2nd gen)
USB A (USB 3.2 1st gen)
- 6.4 cm (2.5") internal slots
2
- 8.9 cm (3.5") internal slots
1
- Width
205 mm
- Height
363 mm
- Depth
452 mm
- Weight
5900 g
- Form factor
Micro-ATX
Mini-ITX
DTX
- No. of USB type A 3.0 ports
1 x
- No. of USB 3.0 ports
1 x
- Wireless charging
No
- Dim
(W x H x D) 205 x 363 x 452 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2876720 Jonsbo D31 Microtower PC casing White
Description
Jonsbo D31: The versatile Micro ATX housing
With the D31, Jonsbo presents a compact and elegant as well as versatile Micro ATX housing from its Pine Cone series. In it, the current gaming hardware can be accommodated effortlessly. Whether you prefer air or water cooling, the Jonsbo D31 offers plenty of space for both. Depending on how large your GPU is and how much fan you need, you can place the power supply on the front as it suits you.
Available in different versions, you have the choice

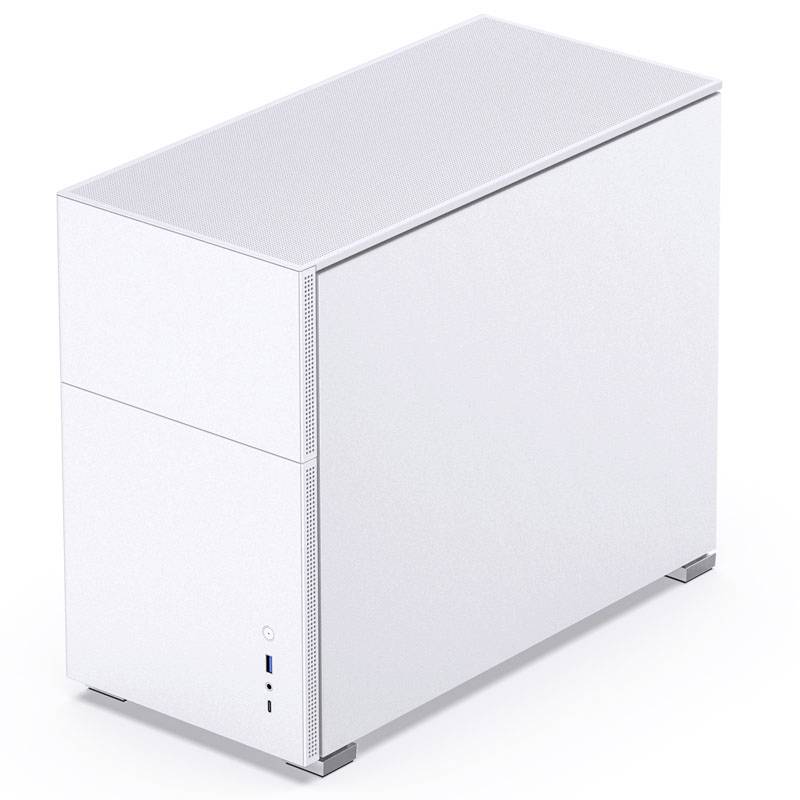

The Jonsbo comes in several versions, one with and one without mesh, and even with a large front display that lets you display system information or animated screen savers. No matter WAS you prefer, with the Jonsbo D31 you can implement your perfect gaming setup in any case. This STD version in white has a closed front, perfect for a silent build.

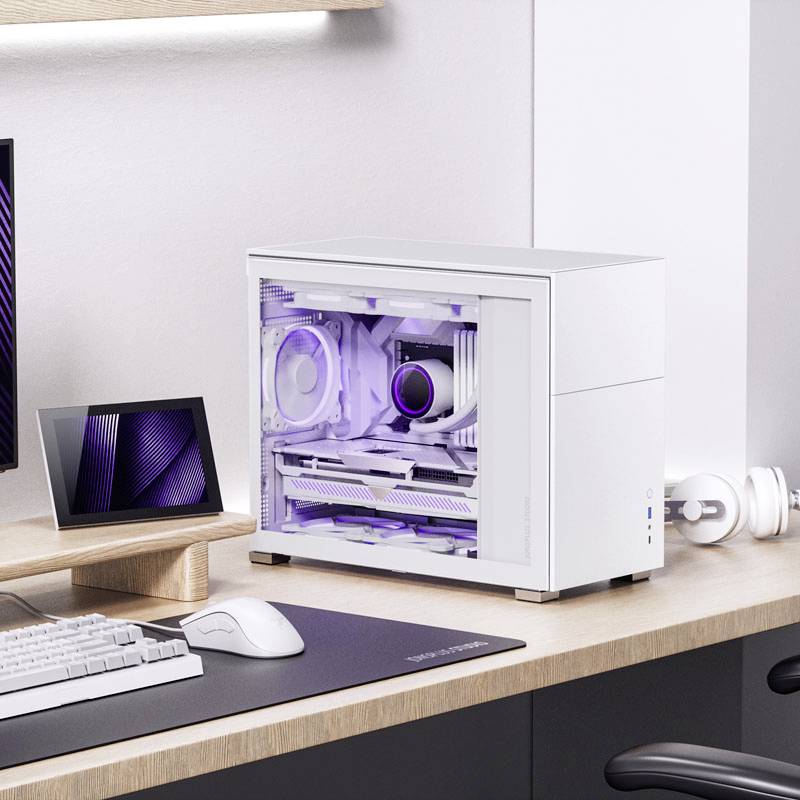

High-End Gaming Hardware: Well presented

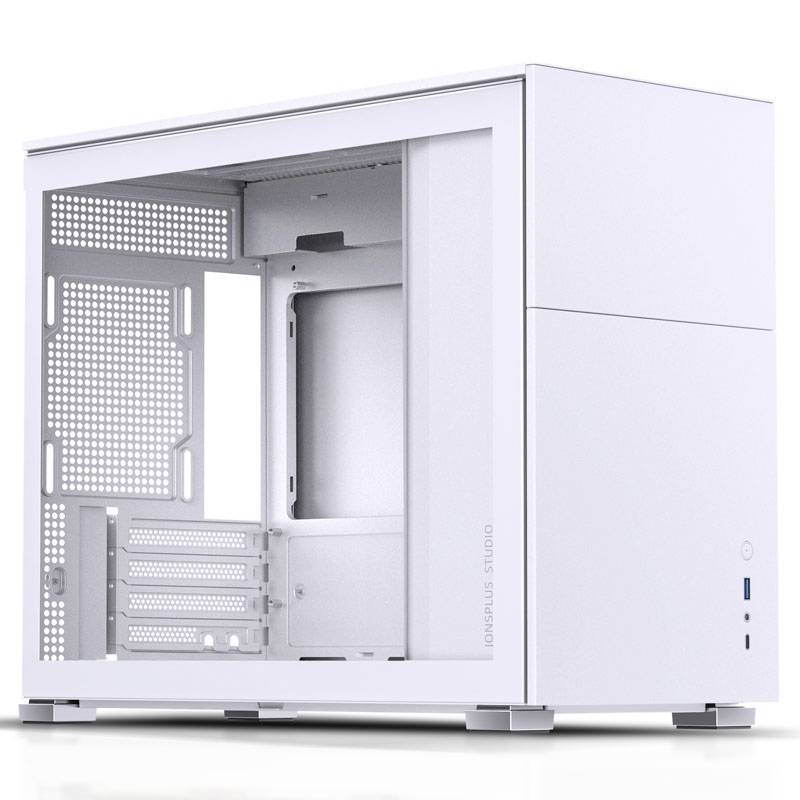

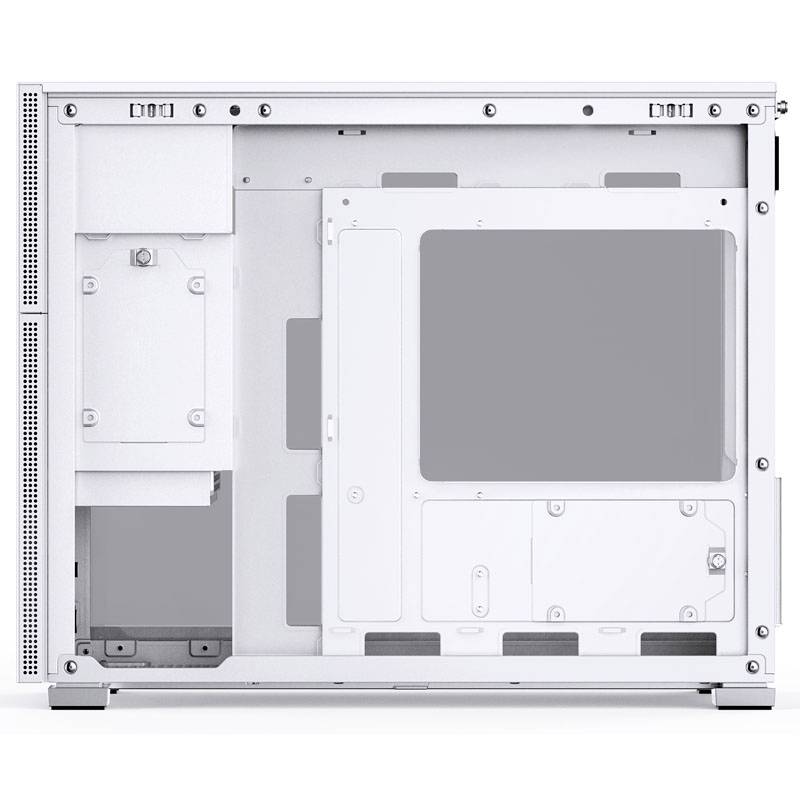

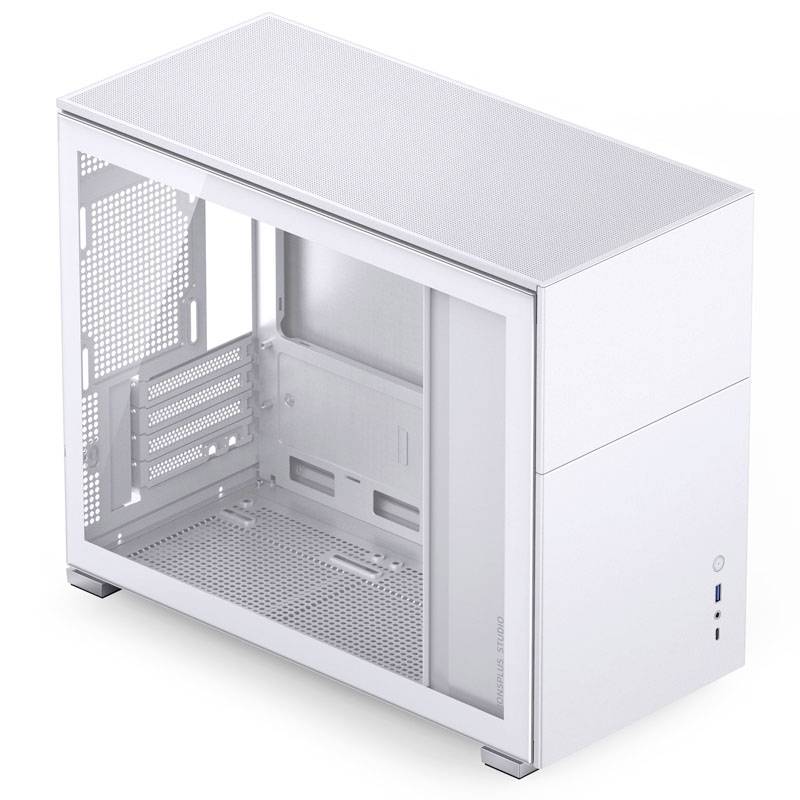

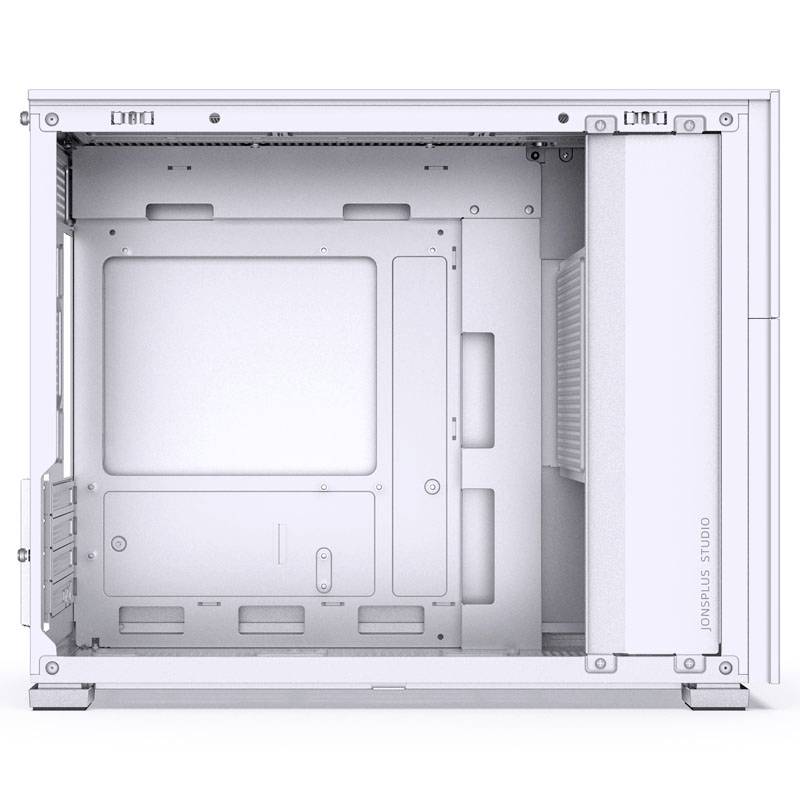

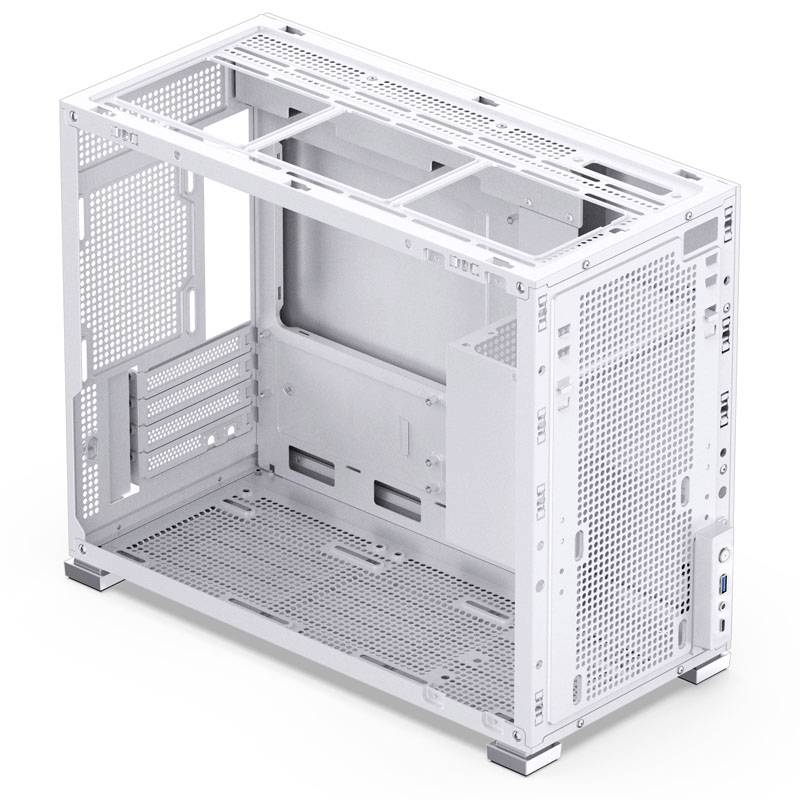

The interior of the Jonsbo D31 is clearly visible through the side panel made of tempered glass. It contains a graphics card with a length of at least 330 mm and a maximum of 400 mm, in addition to the Micro ATX mainboard. To do this, you can move the power supply behind a bezel by 140 mm vertically in four steps. There is space for two SSDs behind the motherboard tray. Besides, there is plenty of room for cable management. An HDD can be placed at the front on the floor under doing without a third fan.
Plenty of space for fans…
The three possible 120-mm fans on the bottom over a dust filter are mounted displaced, so that the sucked-in air is directed past the graphics card. Alternatively, you can use two 140 mm fans. On top of it three more 120 mm or two 140 mm fans can be installed, in order to carry the heated air outwards through a fine mesh grid. On the back and the front there is still space for one more 120-mm fans each.
... And radiators

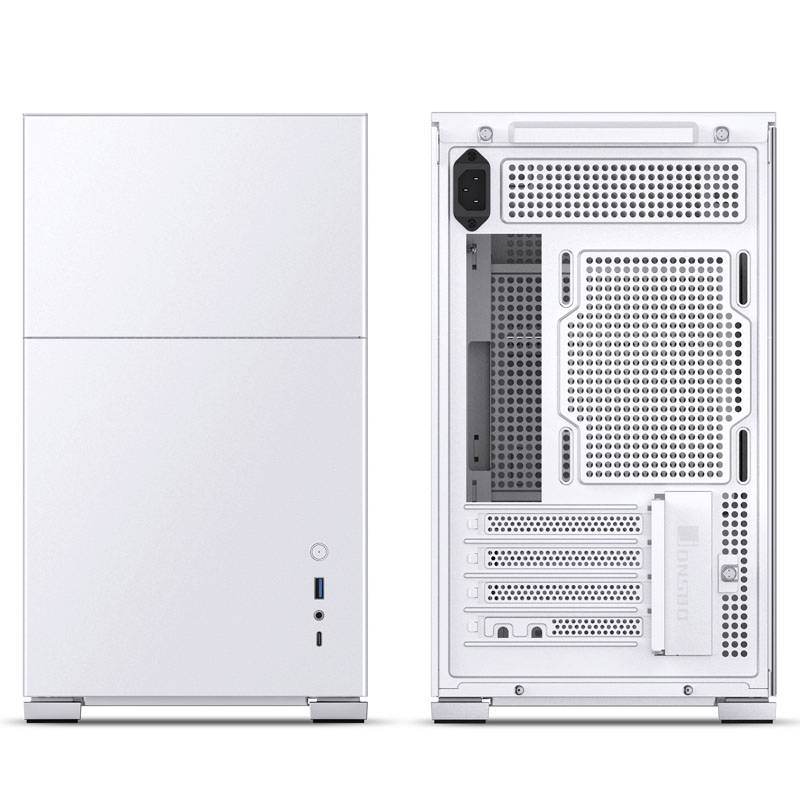

Up to 360 mm radiators can be installed on the floor and on the cover instead. Above is also place for a 280-mm radiator. If you wish to use a CPU cooler, this may be up to 168 mm high. The I/O panel at the bottom right of the front offers a type C USB 3.1 port, a type A USB 3.0 port and a combined 3.5 mm audio jack and the standard Power or Reset switch.
This text is machine translated.
