Buy Joy-it DSO-LCR500 Oscilloscope, Signal generator, Component tester 1 kHz - 100 kHz Triangle, Pulse, Rectangle, Sinus

Portable oscilloscope with a colour display showing a waveform. Operating buttons are arranged underneath.

Multimeter Set DSO-LCR500 with Accessories: Test Leads, Crocodile Clips, USB Cable, User Manual and Packaging Box.

A digital multimeter with a display showing various measurement modes, and three input ports for different measurements.

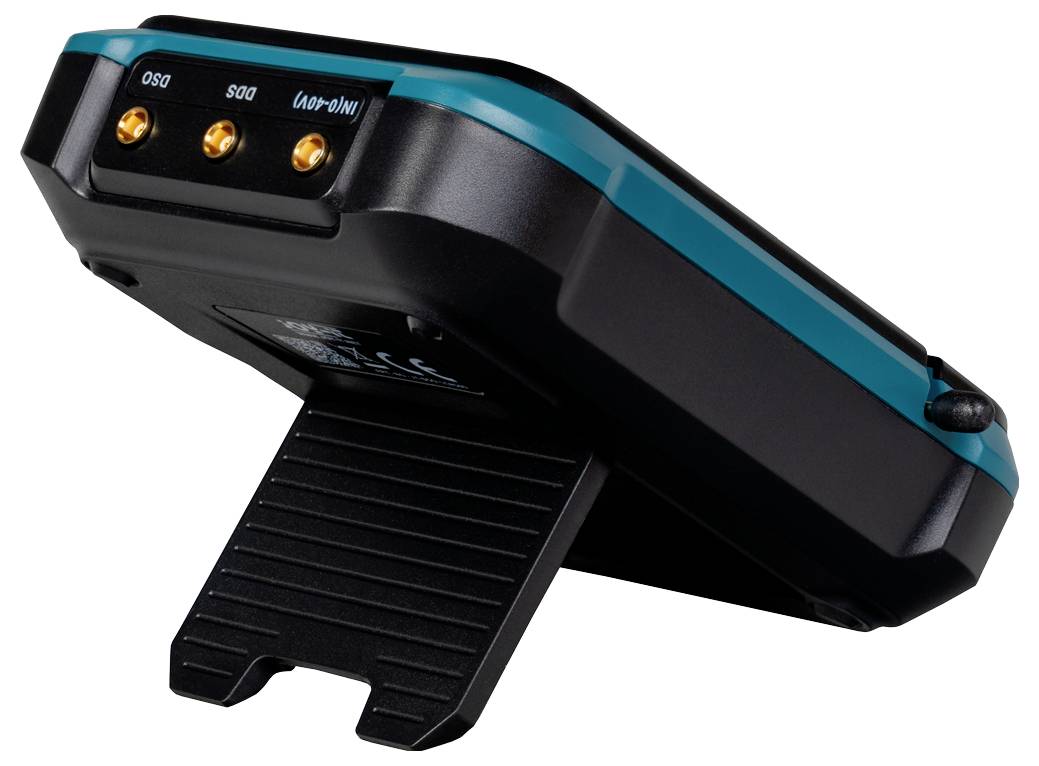

A black electronic device with three golden ports on a foldable stand, possibly a charger.

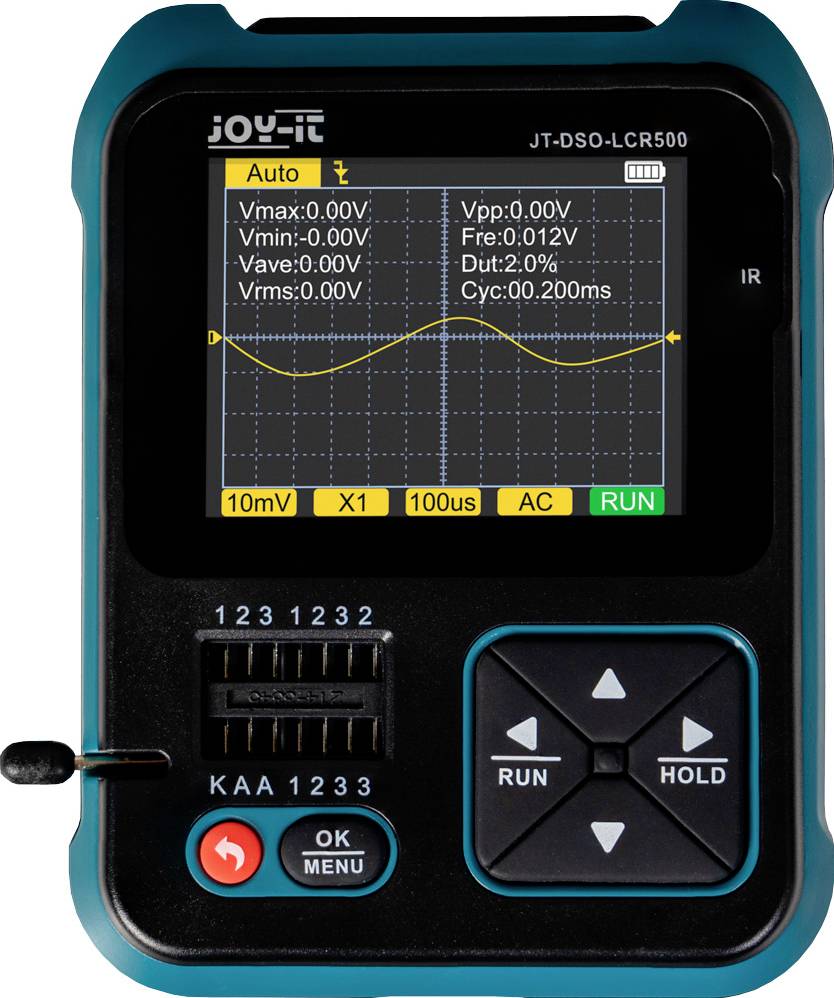

Portable digital oscilloscope with display showing a sinusoidal waveform. Controls and buttons for operation visible at the bottom.

1/5

Datasheet (PDF)

102 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 62.18 / piece)

€

Report legal concerns

Technical specifications

OSCILLOSCOPE SPECIFICATIONS
Sampling rate 10 MS/s
Analogue bandwidth 0 - 500 kHz
Input resistance 1 MΩ
AC/DC coupling
Range of testing voltage
1:1: 80Vpp (- 40 V - 40 V)
10:1: 800Vpp (- 400 V - 400 V)
Vertical sensitivity 10 mV/div - 10 V/div
Horizontal time range: 10 μs - 10s
Trigger modes Automatic, Normal, Single
Trigger types: Falling edge, rising edge
Measurable components
HFE greater than 10, hFE less than 600
Gain factor (hFE),
Base emitter voltage (Ube)
Collector emitter reverse current
(Iceo ICES)
Forward voltage drop of the protective diode (Uf)
Diodes
Forward voltage drop below 5V,
Transition capacity,
Reverse current
Zener diodes
1-2-3: Forward voltage drop,
Forward voltage in reverse direction
Test range 0.01 - 4.5 V
K-A-A: On-state voltage in
Reverse direction
Test range 0.01 - 24V
Field defect transistors
JFET: Gate capacitance (CG), drain current (ID at Vgs), forward voltage drop of the protection diode (Uf)
IGBT: Drain current (ID at Vgs), forward voltage drop of the protection diode (Uf)
MOSFET: Switch-on voltage (VT), gate capacity (CG), drain source resistance (RDS), forward voltage drop of the protection diode (Uf)
Silicon rectifiers & thyristors
Switch-on voltage cl. 5 V
Gate trigger current kl. 6 mA
Gate voltage
Capacitors:25 pF - 100 mF capacitance, loss factor (loss)
Resistors 0.01 Ω - 50 MΩ
Coils 10 UH - 1000 UH
Inductance value, direct current resistance
Batteries: 0.01 - 4.5 V voltage value, positive and negative polarity
Input voltage 0 – 16 V
SIGNAL GENERATOR
Sine wave 1 - 100 kHz, 0 - 3.3 V, 50%
Square wave 1 - 100 kHz, 3.3 V, 50%
Pulse wave 1 - 100 kHz, 3.3 V, 0 - 100%
Delta wave 1 - 100 kHz, 0 - 3.3 V, 50%
Saw tooth shaft 1 - 100 kHz, 0 - 3.3 V, 0 - 100%
Additional functions
DS18B20 measurements
DHT11-measurements
Infrared decoding NEC protocol
Displays the user and data code, displays the infrared waveform
Test functions: Continuity test, voltages up to 40 V.

Signal output type: Sine wave, square wave, pulse wave, triangular wave, sawtooth shaft

Frequency range: 1 kHz - 100 kHz

Dim: (W x H) 85 mm x 103 mm

Height: 103 mm

Width: 85 mm

Max. frequency: 100 kHz

: Manufacturer's standards (no certificate)

Display: LCD

Voltage supply: Rechargeable
USB

Signal output types: Triangle
Pulse
Rectangle
Sinus

Type: DSO-LCR500

Min. frequency: 1 kHz

Product type: Oscilloscope

Documents & Downloads

Datasheet

Datasheet 2896522 Joy-it DSO-LCR500 Oscilloscope, Signal generator, Component tester 1 kHz - 100 kHz Triangle, Pulse, Rectangle, Sinus

User & Safety Instructions

User & Safety Instructions 2896522 Joy-it DSO-LCR500 Oscilloscope, Signal generator, Component tester 1 kHz - 100 kHz Triangle, Pulse, Rectangle, Sinus

Description

The DSO-LCR500 combines the advantages of a digital oscilloscope and a multi-functional component tester in a compact and high-quality housing. With the help of the digital oscilloscope ambitious inventors can evaluate time-dependent signals without the option of using expensive measurement technology. The multifunctional component tester also enables quick and automatic detection of components. Furthermore, our DSO-LCR500 has additional useful functions, such as a signal generator, an infrared signal decoder and measurement of Zener diodes, DS18B20 sensors and DHT11 sensors. The device is equipped with a 1500 mAh strong battery, which can be conveniently charged via USB-C. The integrated, fold-out base also simplifies operation. The extensive scope of supply includes SMD test tips, test terminals, probe, alligator clip cable and BNC adapter.
