Joy-it JT-OMS01 Oscilloscope, Signal generator, Multimeter 2-channel
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€
Technical specifications
- Functions: 2-channel oscilloscope, multimeter, signal generator, waveform can be stored as screenshot
- Integrated base
- 2.8" (7.11 cm) display (320 x 240) pixels
- 3000 mAh lithium battery (rechargeable via USB-C - 5 V / 1 A)
- OSCILLOSCOPE SPECIFICATIONS
- Channels: 2
- Sampling rate 50 MSa/s
- Analogue bandwidth 10 MHz
- Internal memory 32 kB
- Impedance 1 MΩ
- Timebase range 50 ns 10 s
- Vertical sensitivity 20 mV/div - 10 V/div (X1)
- Measurable voltage 0 - 400 V
- Trigger modes: Auto, normal, single
- Trigger types: Rising edge, falling edge
- Coupling AC, DC
- MULTIMETER SPECIFICATIONS
- Measuring range 0 - 999.9 V/DC, 0 - 750 V/AC
- Measuring range 0 - 9.999 A (DC & AC)
- Measurement range 9 - 99.99 MΩ
- Capacity measuring range 0 - 99.99 mF
- Measuring range -55 - 1300 °C
- Voltage inaccuracy DC: ±(0.5% + 3 digits) // AC: ±(1% + 3 digits)
- Current accuracy DC: ±(1.2% + 3 digits) // AC: ±(1.5% + 3 digits)
- Resistance accuracy: 0 - 999.9 Ω: ±(0.5% + 3 digits) // 0 - 999.9 Ω: ±(0.5% + 3 digits)
- Capacity accuracy: 0 - 9.999 nF: ±(0.5% + 3 digits) // 10 nF ±(5.0% + 20 digits)
- Temperature accuracy ±(2.5% + 5 digits)
- Other functions: Measurement of diodes, continuity test, detection of conducting lines
- Signal generator specifications
- Waveforms:sine, square, triangle, full wave, half wave, Noise threshold, DC
- Output frequency 1 Hz - 2 MHz
- Output amplitude 0.1 - 3.3 V
- Dim
(W x H) 89 mm x 35 mm
- Weight
300 g
- Height
35 mm
- Width
89 mm
Manufacturer's standards (no certificate)
- No. of channels
2-channel
- Type
JT-OMS01
- Bandwidth
50 MHz
- Product type
Oscilloscope
Documents & Downloads
Datasheet
Datasheet 2999119 Joy-it JT-OMS01 Oscilloscope, Signal generator, Multimeter 2-channel
User & Safety Instructions
User & Safety Instructions 2999119 Joy-it JT-OMS01 Oscilloscope, Signal generator, Multimeter 2-channel
User & Safety Instructions 2999119 Joy-it JT-OMS01 Oscilloscope, Signal generator, Multimeter 2-channel
Description
Discover the ultimate tool for electronics enthusiasts and professionals – our 3-in-1 handheld oscilloscope! With this versatile device you get not only a high-precision 2-channel oscilloscope, but also a powerful multimeter and a versatile signal generator - all in a handy, portable design. With our handheld oscilloscope, you can easily monitor and analyze electronic signals to perform accurate measurements and diagnoses. Thanks to the 2-channel function, you have the option of capturing and comparing different signals at the same time, WAS helps you to identify problems faster and to find solutions.
This text is machine translated.
This text is machine translated.
Scope of delivery
- JT-OMS01
- User manual.
- USB-C cable
- 2x test probes
- 1x test clip
- 1x oscilloscope probe
Frequently Bought Together
(*All information is plus legal VAT) This article
Joy-it JT-OMS01 Oscilloscope, Signal generator, Multimeter 2-channel
Conrad Electronic
€ 113.44*
VOLTCRAFT VC131 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 250 V Display (counts): 2000
Conrad Electronic
€ 75.62*
Joy-it RD6012 Bench PSU (adjustable voltage) 0 - 60 V 0 - 12 A remote controlled, programmable, slim type
Conrad Electronic
€ 96.63*

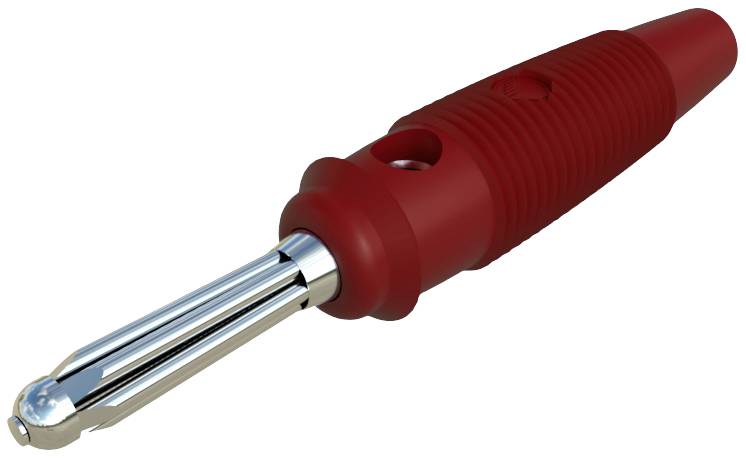

Hirschmann Test & Measurement BUELA 20 K Banana plug Plug, straight Pin diameter: 4 mm Red 1 pc(s)
