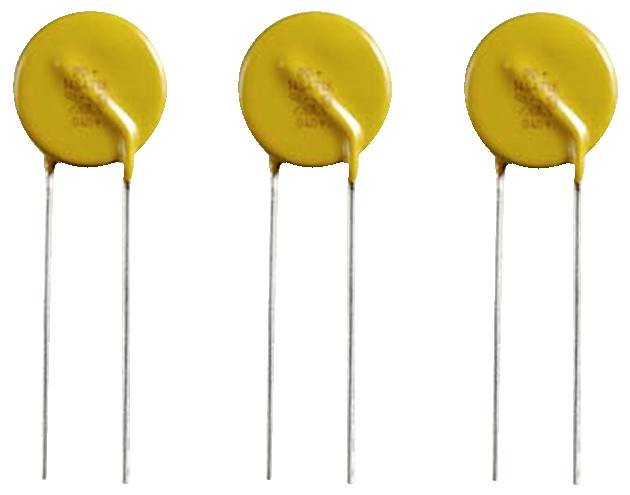

Joyin JVR20N431K11YU4 JVR20N431K11YU4 Metal oxide varistor 430 V 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.71001
10
8% = € 0.06
€ 0.65285
25
11% = € 0.08
€ 0.62999
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.71001 / piece)
€ 0.71
plus VAT.
Technical specifications
- ESD Packaging: No ESD
- Series JVR
- Delivery form: Loose
- Diameter, Resistance element 23 mm
- Diameter, connection wire 1 mm
- Surface temperature, max. 115 °C
- Resistance value_1: 0
- Max. OPERATING VOLTAGE (DC) 430 V DC
- Max. OPERATING VOLTAGE (AC) 275 V AC
- Varistor voltage (@1mA) 430 V
- Surge current 6,500 A.
- Energy absorption 264 J
- Response time, max. 25 ns
- Insulation resistance 1,000 MOhm
- APPROVALS UL, CSA, VDE
- Vv
430 V
- Content
1 pc(s)
- Manufacturer part #
JVR20N431K11YU4
- Dim
(Ø x H) 23 mm x 52.0 mm
- (Ø)
23 mm
- Height
52.0 mm
- Width
6.6 mm
- Type
JVR20N431K11YU4
- CS
10 mm
- Peak current I(pp)
6.500 A
- RoHS-compliant
Yes
- UKCA
yes
- Product type
Metal oxide varistor
Documents & Downloads
Datasheet
Datasheet 3523406 Joyin JVR20N431K11YU4 JVR20N431K11YU4 Metal oxide varistor 430 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3523406 Joyin JVR20N431K11YU4 JVR20N431K11YU4 Metal oxide varistor 430 V 1 pc(s)
Description
Application: For protection of electronic modules as voltage-dependent resistors (VDRs)
This text is machine translated.
This text is machine translated.
Features
- • Prevents the build-up of an overvoltage and prevents damage
- • Absorbs the surge voltages
- • The maximum operating voltage must always be lower than the voltage of the varistor.
