TDK B72210S0271K101 Metal oxide varistor 430 V 1 pc(s) Bulk
Packaging type
Bulk
Product type
Metal oxide varistor
Type
circular
V<sub>v</sub>
430 V
CS
7.5 mm
Datasheet (PDF)
Part number:
Item no:
Number
Minimum order quantity: 3
Total (€ 0.28817 / piece)
€ 0.29
incl. VAT
14-day return policy included
Highlights & Details
TDK electronics m-varistor 275V 350V 2500a
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series B722
- Delivery form: Loose
- Diameter, Resistance element 12 mm
- Diameter, connection wire 0.8 mm
- Solder-ability 245 °C / 3 s.
- Resistance value_1: 0
- Power loss, max. 0.4 W.
- Max. OPERATING VOLTAGE (DC) 350 V DC
- Max. OPERATING VOLTAGE (AC) 275 V AC
- Testing voltage 2,500 V
- Varistor voltage (@1mA) 430 V
- Surge current 2,500 A.
- Energy absorption 43 J
- Capacity, type: 220 pF
- Response time, max. 25 ns
- Insulation resistance 10 MOhm
- APPROVALS UL,CSA,VDE,IEC,CQC,UL 94 V0
- Packaging type
Bulk
- Product type
Metal oxide varistor
- Type
circular
- Vv
430 V
- CS
7.5 mm
- Content
1 pc(s)
- (Ø)
12 mm
- Height
39.5 mm
- Width
5.0 mm
- Manufacturer part #
B72210S0271K101
- Dim
(Ø x H) 12 mm x 39.5 mm
- Capacitance
220 pF
- RoHS-compliant
Yes
- Peak current I(pp)
2.500 A
- Type
B72210S0271K101
Documents & Downloads
Datasheet
Datasheet 3527548 TDK B72210S0271K101 Metal oxide varistor 430 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3527548 TDK B72210S0271K101 Metal oxide varistor 430 V 1 pc(s) Bulk
Description

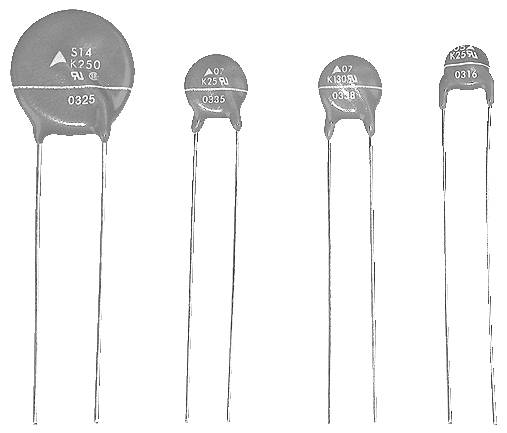

Metal oxide varistors
This text is machine translated.
This text is machine translated.
Features
- • Round varistor elements, wired
- • UL94V-0 epoxy coating
- • No load reduction up to 85°C.
