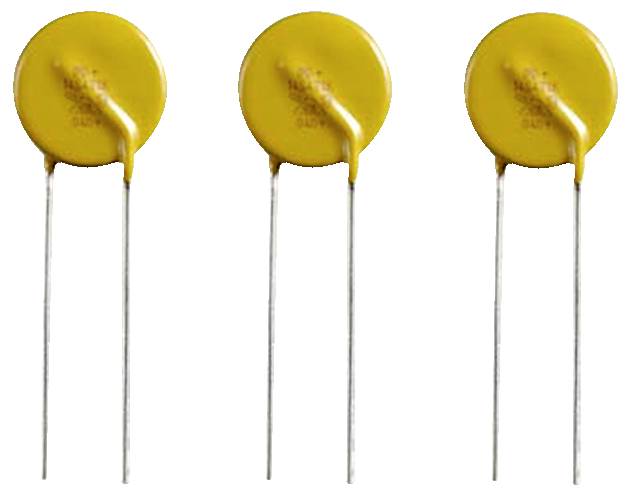

Joyin JVR20N681K11YU4 JVR20N681K11YU4 Metal oxide varistor 680 V 1 pc(s) Bulk
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.81505
10
8% = € 0.07
€ 0.74944
25
11% = € 0.09
€ 0.72319
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.81505 / piece)
€ 0.82
plus VAT.
Technical specifications
- ESD Packaging: No ESD
- Series JVR
- Delivery form: Loose
- Diameter, Resistance element 23 mm
- Diameter, connection wire 1 mm
- Surface temperature, max. 115 °C
- Resistance value_1: 0
- Max. OPERATING VOLTAGE (DC) 680 V DC
- Max. OPERATING VOLTAGE (AC) 420 V AC
- Varistor voltage (@1mA) 680 V
- Surge current 6,500 A.
- Energy absorption 344 J
- Response time, max. 25 ns
- Insulation resistance 1,000 MOhm
- APPROVALS UL, CSA, VDE
- Packaging type
Bulk
- Vv
680 V
- Material
Metal
- Content
1 pc(s)
- Manufacturer part #
JVR20N681K11YU4
- Dim
(Ø x H) 23 mm x 52.0 mm
- (Ø)
23 mm
- Height
52.0 mm
- Width
8.1 mm
- Type
JVR20N681K11YU4
- CS
10 mm
- Peak current I(pp)
6.500 A
- RoHS-compliant
Yes
- UKCA
yes
- Product type
Metal oxide varistor
Documents & Downloads
Datasheet
Datasheet 3523407 Joyin JVR20N681K11YU4 JVR20N681K11YU4 Metal oxide varistor 680 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3523407 Joyin JVR20N681K11YU4 JVR20N681K11YU4 Metal oxide varistor 680 V 1 pc(s) Bulk
Description
Application: For protection of electronic modules as voltage-dependent resistors (VDRs)
This text is machine translated.
This text is machine translated.
Features
- • Prevents the build-up of an overvoltage and prevents damage
- • Absorbs the surge voltages
- • The maximum operating voltage must always be lower than the voltage of the varistor.
