Jumo 00338487 Conductivity sensor 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 845.00 / piece)
€ 845.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Conductivity sensor
- Length
74 mm
- Type
00338487
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2756134 Jumo 00338487 Conductivity sensor 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2756134 Jumo 00338487 Conductivity sensor 1 pc(s)
User & Safety Instructions 2756134 Jumo 00338487 Conductivity sensor 1 pc(s)
Description

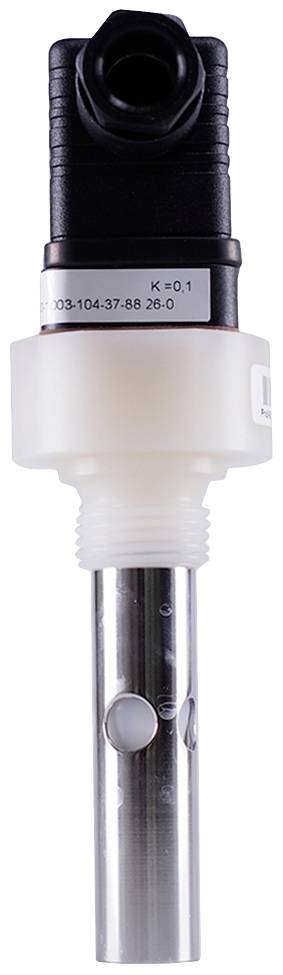

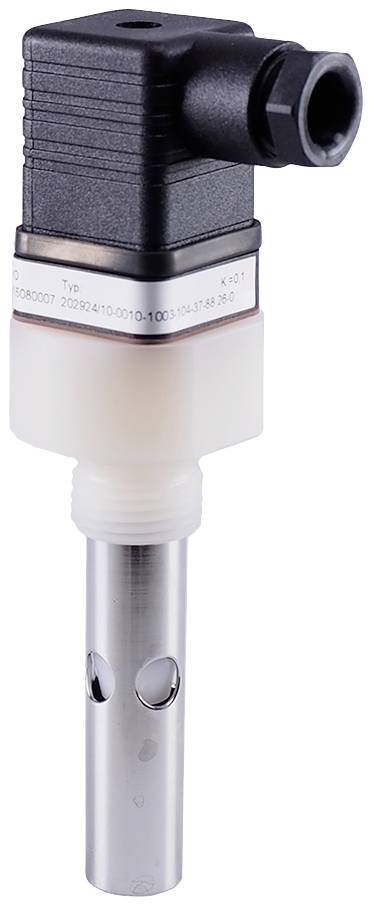

This conductive conductivity sensor has a cell constant of K=0.1 (for measurement ranges 0.1 to 1000 US/cm) as well as a Pt100 measurement insert in two-wire circuit. The installation takes place via the process connection G 1/2A made of PVDF. An angular device plug to DIN 43650 is available as an electrical connection. The material of the electrode is stainless steel (1.4571). Installed length 74 mm. The operating temperature is 0 to +135 °C and the maximum pressure load is 16 bar at 25 °C and 9 bar at 60 °C.
This text is machine translated.
This text is machine translated.
