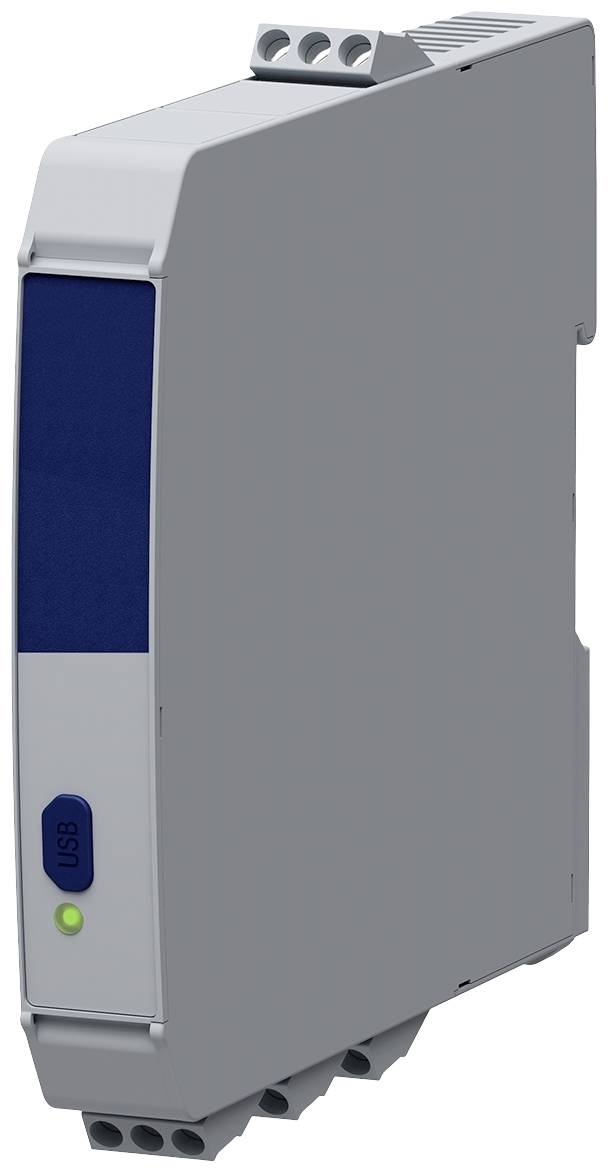

Jumo 00718766 00718766 Transducer

Thanks to galvanic isolation and customer-specific linearization, the multi-function four-wire transmitter is the solution for a wide range of applications in plant construction. With a width of only 17.5 mm this introductory model is very space-saving in the cabinet installation. It detects sensor signals from resistance thermometers in 2, 3 or 4-wire circuit, thermocouples, potentiometers or WFG in 3-wire circuit as well as voltage signals in the range from DC 0 to 1 V. The transmitter supplies 0(4) to 20 mA or 0(2) to 10 V. as output signal The measuring input and the output signal are electrically isolated from each other. The multi-function transmitter is equipped with an operating time meter. The transmitter is configured with respect to the type of sensor, connection technology of the sensor, operating hours meter, measuring range (freely adjustable) and linearization using a setup program on the PC. The connection to the PC is established via a USB interface, which does not require any additional auxiliary voltage. Via the USB-interface the min.-/max.-process value as well as the min.-/max. recorded by the transmitter can be -Operating temperature is read and the sensor wiring is checked online. The operating states of the transmitter are indicated by a 3-colored LED (red/green).

This text is machine translated.
