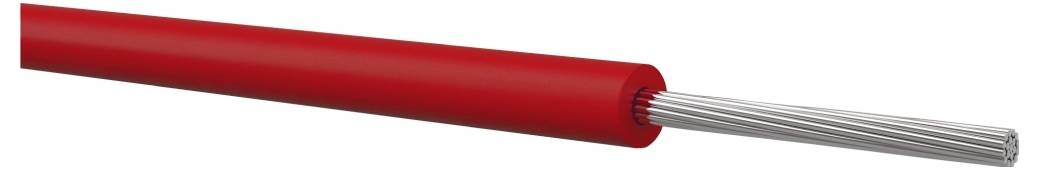

Image similar
Kabeltronik 060110008 Braid LiYv 1 x 1 mm² Red 100 m
Product type
Braid
No. of leads
1 x
Cross section (each core)
1 mm²
Cable type
LiYv
Content
100 m
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type: Insulated single wires
- Weight kg/km: 13.00 kg/km.
- CU weight kg/km: 9.60 kg/km.
- Product group name: Liv
- Wire Ø 2.1 mm
- Bending radius quiet: Min. 10 x
- Bending radius, moving: Min. 15 x
- Use: Control wire for wiring of device groups and racks, as well as for telecommunications equipment and weak-current systems.
- Product type
Braid
- No. of leads
1 x
- Content
100 m
- Cross section (each core)
1 mm²
- Insulation material
PVC
- Cable type
LiYv
- Nominal voltage
900 V
- Halogen-free
No
- Manufacturer part #
060110008
- Factory colour
Red
- Core layout
32 x 0.20 mm
- Material (details)
Cu-strand, VZ.
- Certification marks
none
- Test voltage
2500 V
- Cross section
1 x 1 mm²
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
LiYv 1,00 qmm rt
Documents & Downloads
Datasheet
Datasheet 3805076 Kabeltronik 060110008 Braid LiYv 1 x 1 mm² Red 100 m
User & Safety Instructions
User & Safety Instructions 3805076 Kabeltronik 060110008 Braid LiYv 1 x 1 mm² Red 100 m
Description
Stranded hook-up wire for wiring groups and racks, for telecommunications equipment and weak-current systems.
