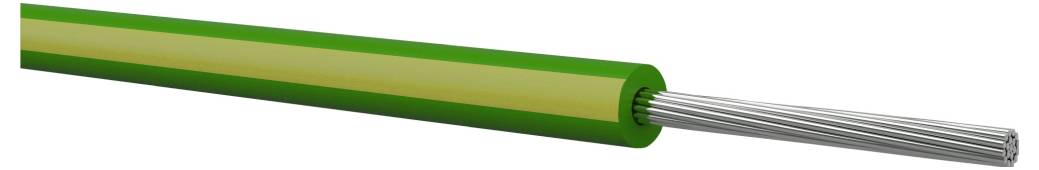

Image similar
Kabeltronik 060115028 Braid LiYv 1 x 1.5 mm² Green-yellow 100 m
Product type
Braid
No. of leads
1 x
Cross section (each core)
1.5 mm²
Cable type
LiYv
Content
100 m
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type: Insulated single wires
- Weight kg/km: 19.00 kg/km.
- CU weight kg/km: 14.40 kg/km.
- Product group name: Liv
- Wire Ø 2.6 mm
- Bending radius quiet: Min. 10 x
- Bending radius, moving: Min. 15 x
- Use: Control wire for wiring of device groups and racks, as well as for telecommunications equipment and weak-current systems.
- Product type
Braid
- No. of leads
1 x
- Content
100 m
- Cross section (each core)
1.5 mm²
- Insulation material
PVC
- Cable type
LiYv
- Nominal voltage
900 V
- Halogen-free
No
- Manufacturer part #
060115028
- Factory colour
Green-yellow
- Core layout
30 x 0.25 mm
- Material (details)
Cu-strand, VZ.
- Certification marks
none
- Test voltage
2500 V
- Cross section
1 x 1.5 mm²
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
LiYv 1,50 qmm gn-ge
Documents & Downloads
Datasheet
Datasheet 3805079 Kabeltronik 060115028 Braid LiYv 1 x 1.5 mm² Green-yellow 100 m
User & Safety Instructions
User & Safety Instructions 3805079 Kabeltronik 060115028 Braid LiYv 1 x 1.5 mm² Green-yellow 100 m
Description
Stranded hook-up wire for wiring groups and racks, for telecommunications equipment and weak-current systems.
