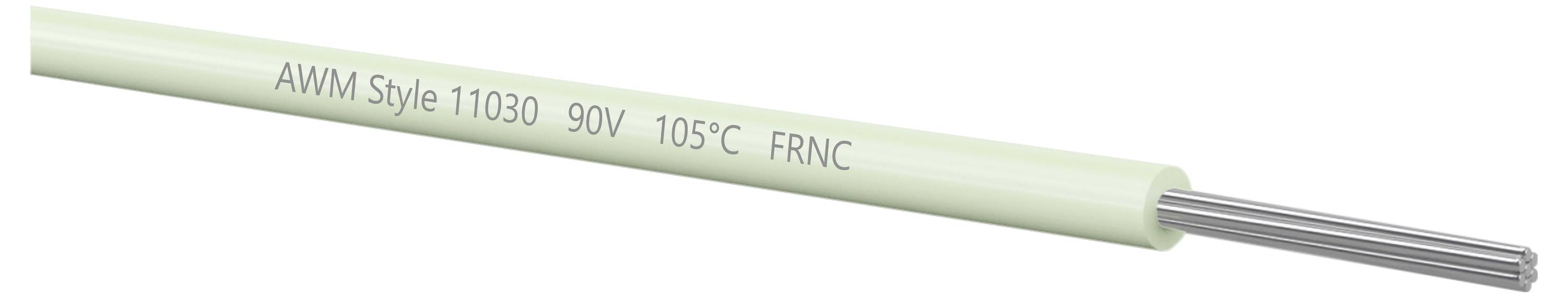

Kabeltronik 089260701 Braid 1 x 0.14 mm² White 100 m
Product type
Braid
No. of leads
1 x
Cross section (each core)
0.14 mm²
Content
100 m
Insulation material
Modified polyphenyl ether (mPPE)
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type: Insulated single wires
- Weight kg/km: 1.23 kg/km.
- CU weight kg/km: 0.95 kg/km.
- Product group title: 11030
- Wire Ø 0.79 mm
- Bending radius quiet: Min. 10 x
- Bending radius, moving: Min. 15 x
- Use: Internal wiring of electrical equipment and control cabinets.
- Product type
Braid
- No. of leads
1 x
- Content
100 m
- Cross section (each core)
0.14 mm²
- Insulation material
Modified polyphenyl ether (mPPE)
- Cable features
Flame-retardant
Extremely thin-walled
recyclable
Acid-resistant
Base-resistant
Oil-resistant
low flue gas emission
non-corrosive
- Nominal voltage
90 V
- AWG max.
26
- Halogen-free
Yes
- Manufacturer part #
089260701
- Factory colour
White
- Core layout
7 x 0,160 mm
- Material (details)
Cu-strand, VZ.
- Certification marks
UL; cUL
- Test voltage
1000 V
- Cross section
1 x 0.14 mm²
- Max. temperature range (flexible installation)
+105 °C
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (fixed installation)
+105 °C
- Min. temperature range (fixed installation)
-40 °C
- Type
cULus-Litze, AWG 26/7, ws
Documents & Downloads
Datasheet
Datasheet 3804869 Kabeltronik 089260701 Braid 1 x 0.14 mm² White 100 m
User & Safety Instructions
User & Safety Instructions 3804869 Kabeltronik 089260701 Braid 1 x 0.14 mm² White 100 m
Description
Internal wiring of electrical equipment and switchgear cabinets.
