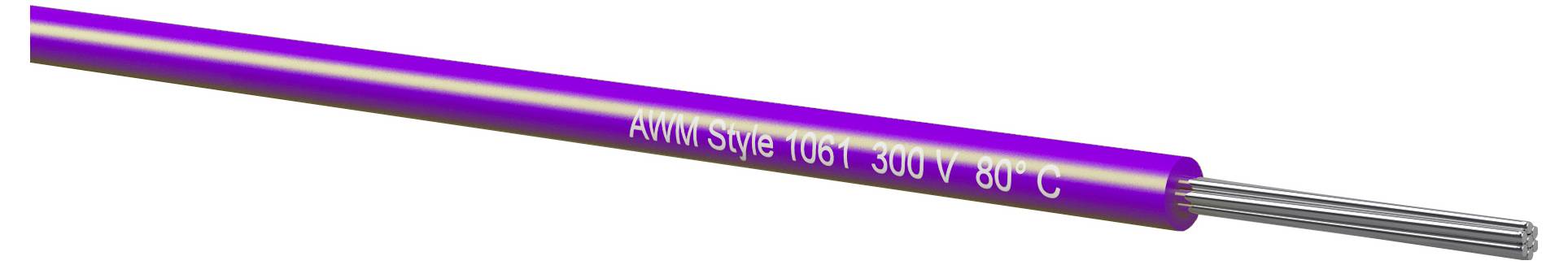

Kabeltronik 091247011 Braid 1 x 0.22 mm² Violet 500 m
Product type
Braid
No. of leads
1 x
Cross section (each core)
0.22 mm²
Content
500 m
Insulation material
PVC
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Type: Insulated single wires
- Weight kg/km: 3.20 kg/km.
- CU weight kg/km: 2.30 kg/km.
- Product group title: 1061/10002
- Wire Ø 1.15 mm
- Bending radius quiet: Min. 10 x
- Bending radius, moving: Min. 15 x
- Use: Internal wiring of electrical equipment and control cabinets.
- Product type
Braid
- No. of leads
1 x
- Content
500 m
- Cross section (each core)
0.22 mm²
- Insulation material
PVC
- Cable features
Flame-retardant
- Nominal voltage
300 V
- AWG max.
24
- Halogen-free
No
- Manufacturer part #
091247011
- Factory colour
Violet
- Core layout
7 x 0,200 mm
- Material (details)
Cu-strand, VZ.
- Certification marks
UL; cUL
- Test voltage
2000 V
- Cross section
1 x 0.22 mm²
- Max. temperature range (flexible installation)
+105 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+105 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
cULus-Litze, AWG 24/7, vio 1061
Documents & Downloads
Datasheet
Datasheet 3804843 Kabeltronik 091247011 Braid 1 x 0.22 mm² Violet 500 m
User & Safety Instructions
User & Safety Instructions 3804843 Kabeltronik 091247011 Braid 1 x 0.22 mm² Violet 500 m
Description
Internal wiring of electrical equipment and switchgear cabinets.
This text is machine translated.
This text is machine translated.
